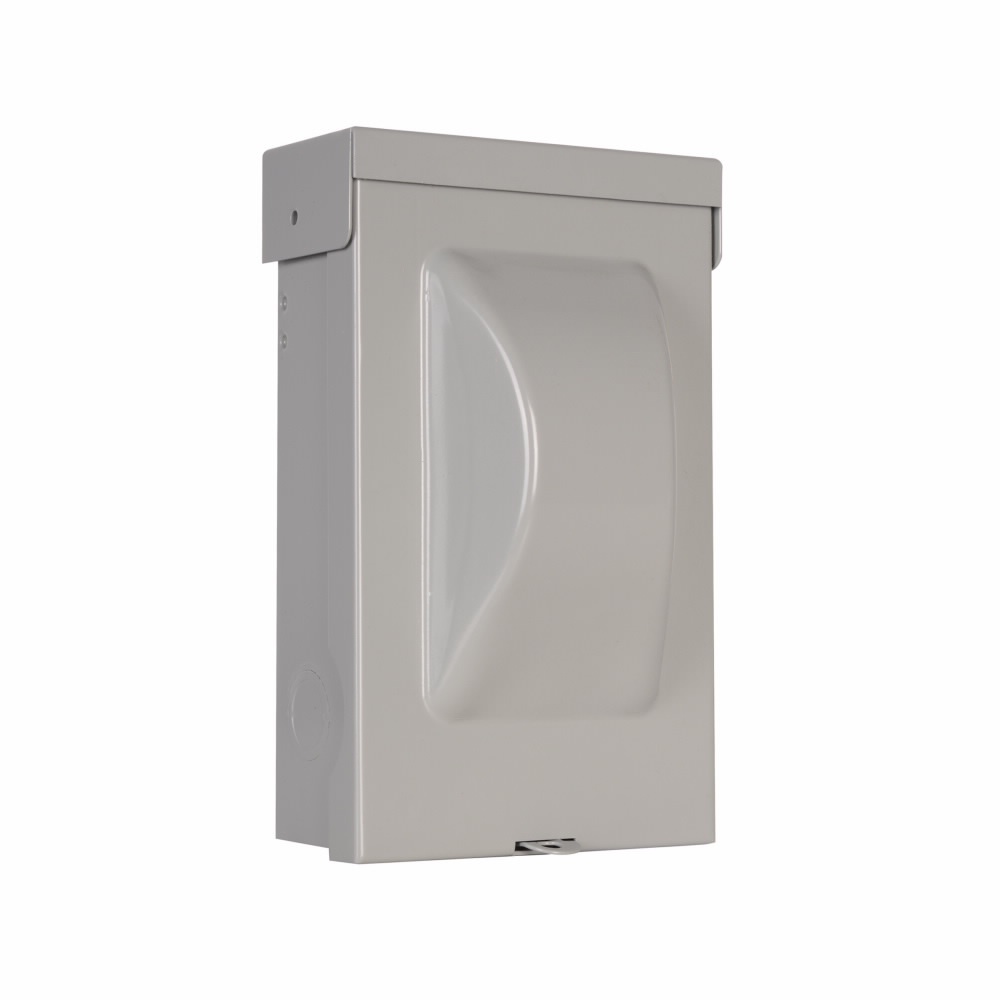

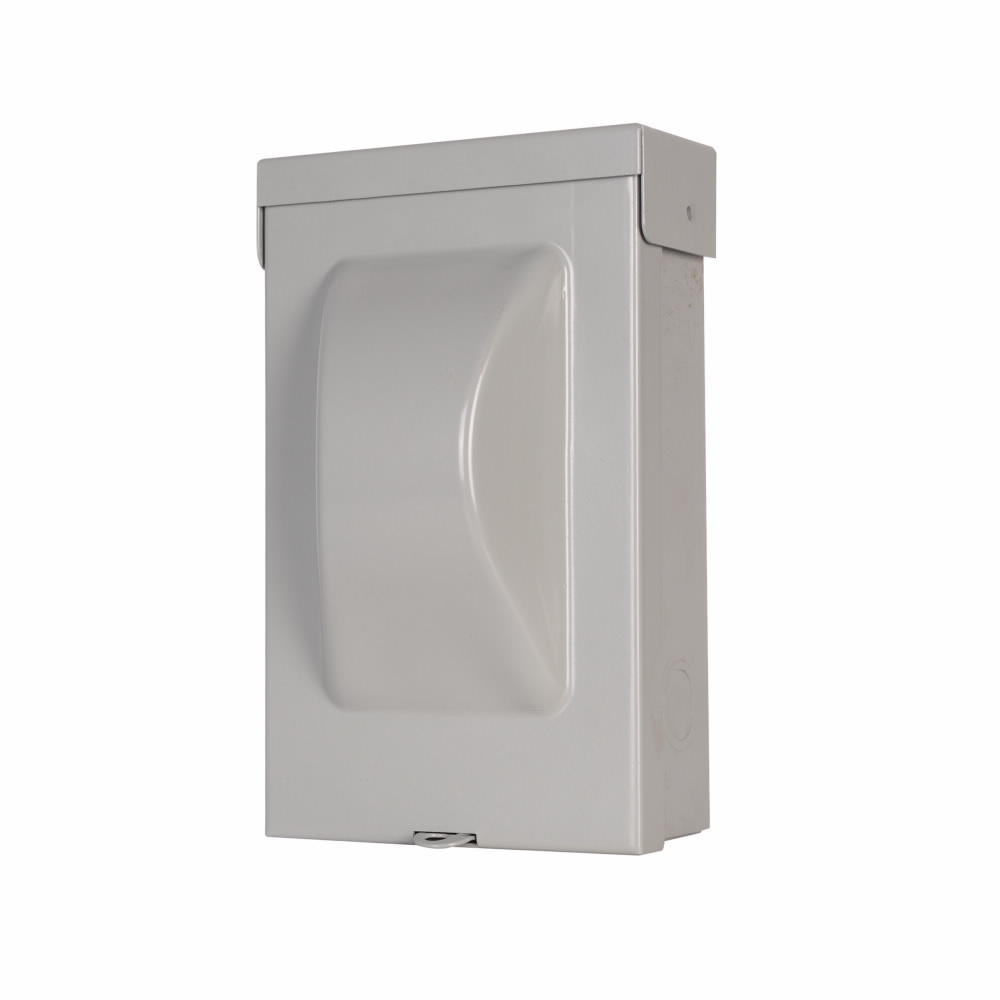

Product image for Eaton Electrical DPB222R 240 VAC 60 Amp 10 Hp 14 to 3 AWG Galvanized Steel Molded Case Air Conditioner Disconnect Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Email

Eaton Electrical DPB222R 240 VAC 60 Amp 10 Hp 14 to 3 AWG Galvanized Steel Molded Case Air Conditioner Disconnect Switch

Manufacturer: Cutler-Hammer / Eaton | Catalog # DPB222R | Cooper Electric Part # 30268
$79.46/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Eaton Air Conditioning Disconnect, Molded case switch, 60 A, 240V, 10 kAIC, #14-3 Cu/Al 60°C or 75°C, NEMA 3R Galvanized Steel enclosure, 10 hp at 240V, ANSI 61 gray

Technical Information

Amperage
60 Amp
Applications
For HVAC
Conductor Size
14-3 AWG
Enclosure
3R
Enclosure Material
Steel
Horsepower
10 hp
Interrupt Rating
10 kAIC
Load Rating
10 hp at 240 VAC 1 Phase
Material
Steel
NEMA Size
3R
Number of Poles
2 Pole
Number of Wires
2 Wire
Standard
CSA,UL
Switch Type
Molded Case
Type
Air Conditioning, Non-Fusible
Voltage
240 VAC
Wire Size
14-3 AWG

Manufacturer Information

Brand
Cutler-Hammer Manufacturing Co.

General Product Info

12-Digit UPC
782114205686
Color
Gray
GTiN
00782114205686
Housing Material
Painted Steel
Product UPC
78211420568
Weight
3.11 lb

Dimensions

Height
8.6 Inch
Length
5.3 Inch
Width
3.74 in
