Thomas & Betts F9027 0.295 x 0.709 Inch 6 AWG Non-Insulated Tinned Copper Wire Ferrule Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # F9027 | Cooper Electric Part # 300205
$117.71/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

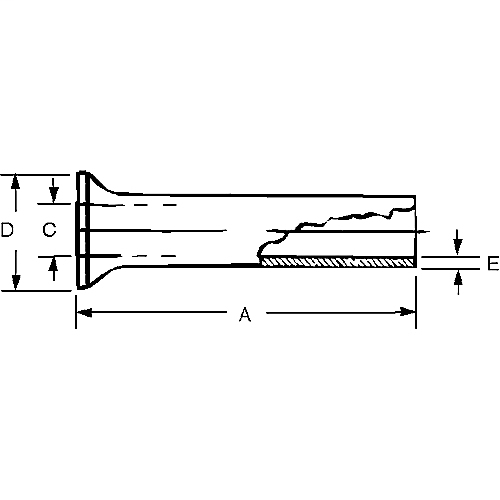

Non-Insulated Ferrule, Length .709 Inches/18mm, Inner Diameter .228 Inches/5.8mm, Outer Diameter .295 Inches/7.5mm, Conductor Size 6 AWG/16mm2, Copper, Tin Plated

Technical Information

Conductor Size
6 AWG
Contact Material
Copper
Insulation Type
Non-Insulated
Material
Copper
Standard
UL E489056
Temperature Rating
150 degrees C
Type
Non-Insulated Ferrule
Wire Size
6 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210336053
Color
Metallic
Finish
Electro Tin Plated
GTiN
05415022254761
Product UPC
78621033605

Dimensions

Overall Length
0.709 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
