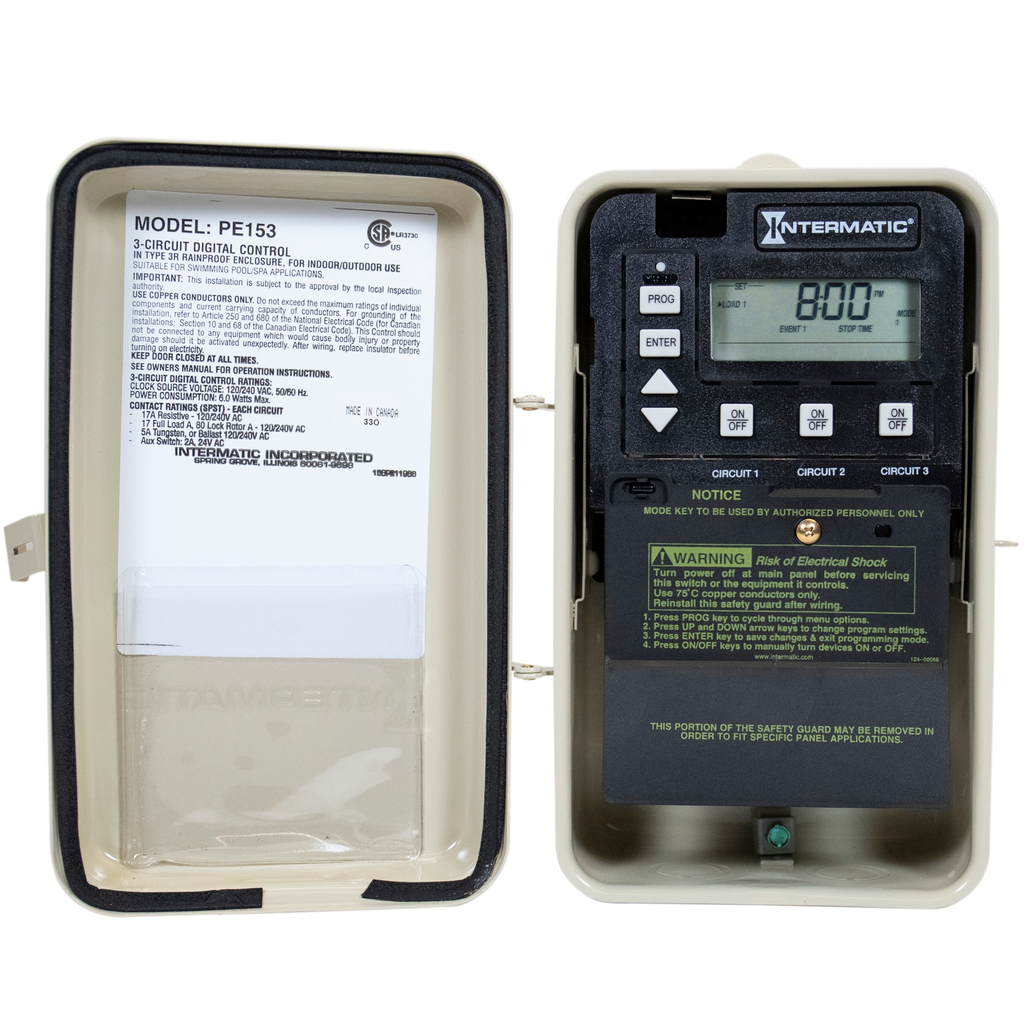

Product image for Intermatic PE153P NEMA 3 Plastic Case 120/240 VAC 50/60 Hz 17 Amp Digital 3-Circuit Time Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Intermatic PE153P NEMA 3 Plastic Case 120/240 VAC 50/60 Hz 17 Amp Digital 3-Circuit Time Switch

Manufacturer: Intermatic, Inc | Catalog # PE153P | Cooper Electric Part # 295669
$725.77/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
This multipurpose 24-hour control is capable of automatically switching loads according to a preset daily schedule. Controls single- and two-speed pumps and cleaner/booster pumps. Three ON/OFF events per circuit per day.

Technical Information

Action
3PDT
Applications
Pool/Spa control, Outdoor, Filter Pumps, Air Conditioners, Signs, Lights, Engine Block Heaters, Fans
Contact Configuration
1 NO, 1 NC
Contact Rating
17 AMP @ 120/240 VAC (Resistive), 5 AMP @ 120/240 VAC (Tungsten)
Enclosure
Type 1,Type 3R
Frequency
50/60 Hz
Input Voltage
120/240 V
Max Operating Temperature
0 degrees F
Min Operating Temperature
0 degrees F
Mounting Type
Wall Mount
Number of Circuits
3
Number of Poles
1 Pole
Operating Temperature
-20 to 130 degrees F, -29 to 54 degrees C
Standard
UL 508,CSA C22.2 No. 60950-1,File E197259,CE,CSA,UL 60950-1,CB Approval,CSA C22.2 No. 107.1,UL
Switch Type
3-SPST
Type
Digital
Voltage
120/240 VAC

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275092396
Color
Black
GTiN
00078275092396
Product UPC
07827509239

Dimensions

Depth
3-5/8 Inch
Height
9-3/8 Inch
Warranty Length
1 yr
Width
5.5 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Canada
Features
  • Controls single- and two-speed pumps and cleaner/booster pumps
  • Three ON/OFF events per circuit per day
  • Seven preprogrammed modes
  • Freeze and heater protection
  • LCD readout
  • Multivoltage input and output
  • Countdown and override features enable programs to be overridden and automatically resumed without requiring the user to reprogram the system
  • NA
