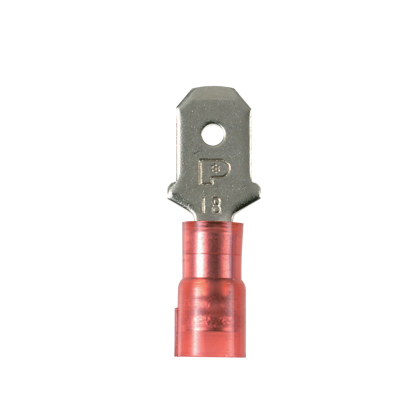

Product image for Panduit DNF18-250M-C Nylon Barrel Insulated Male Disconnect
Email

Panduit DNF18-250M-C Nylon Barrel Insulated Male Disconnect

Manufacturer: Panduit Corp | Catalog # DNF18-250M-C | Cooper Electric Part # 295326
$368.39/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Engineering Drawing
The vibration resistant male tab disconnect is made of copper and is nickel-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.90" (22.9 mm) long and 0.25" (6.4 mm) wide. The disconnect has a standard barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100.

Technical Information

Barrel Type
Grip Sleeve
Color Coding
Red
Conductor Size
22 AWG
Material
Copper
Max Operating Temperature
105 degrees C
TC Connection
Standard
Temperature Rating
221 F
Type
Disconnect
Voltage
600 Volt
Wire Size
18 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983827121
Color
Red
Finish
Nickel
GTiN
00074983827121
Product UPC
07498382712
UNSPSC
39121409

Dimensions

Height
0.03 Inch
Overall Length
0.9 in
Width
0.25 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
