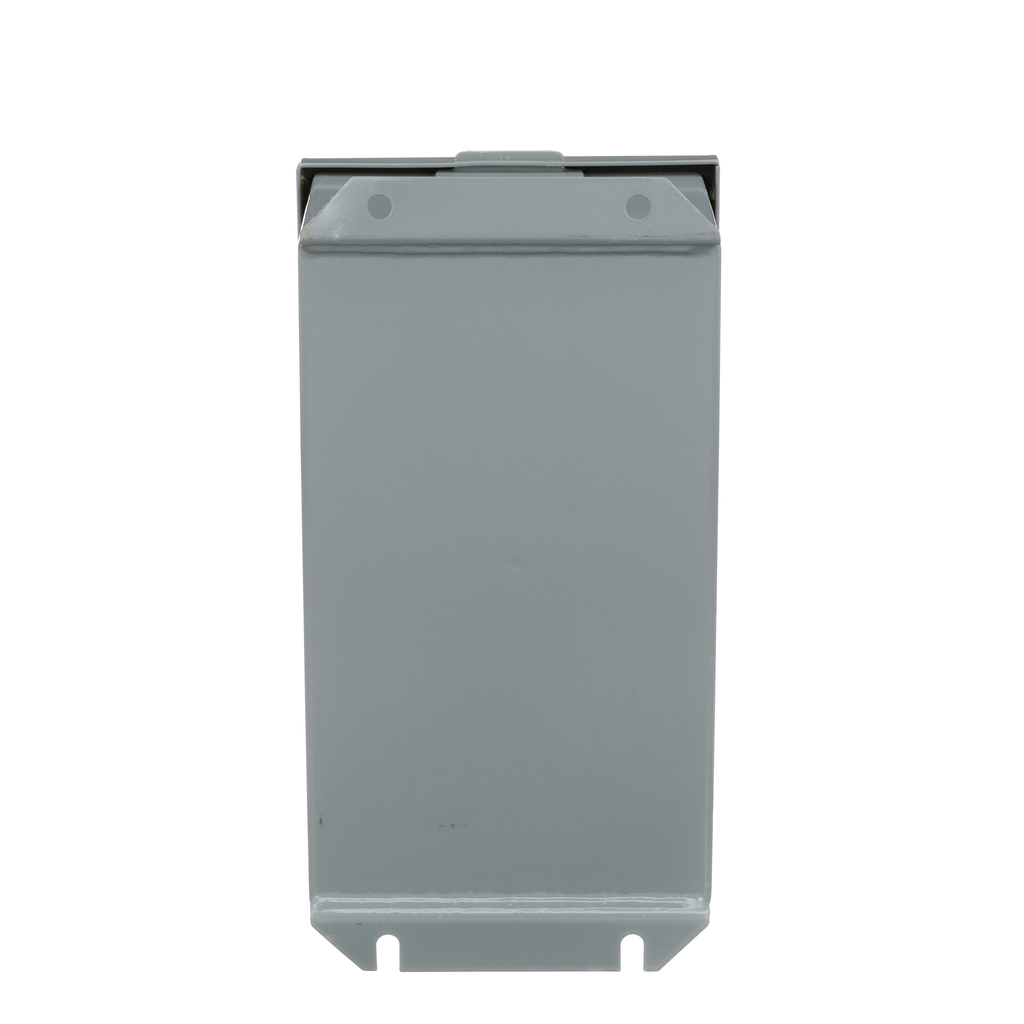

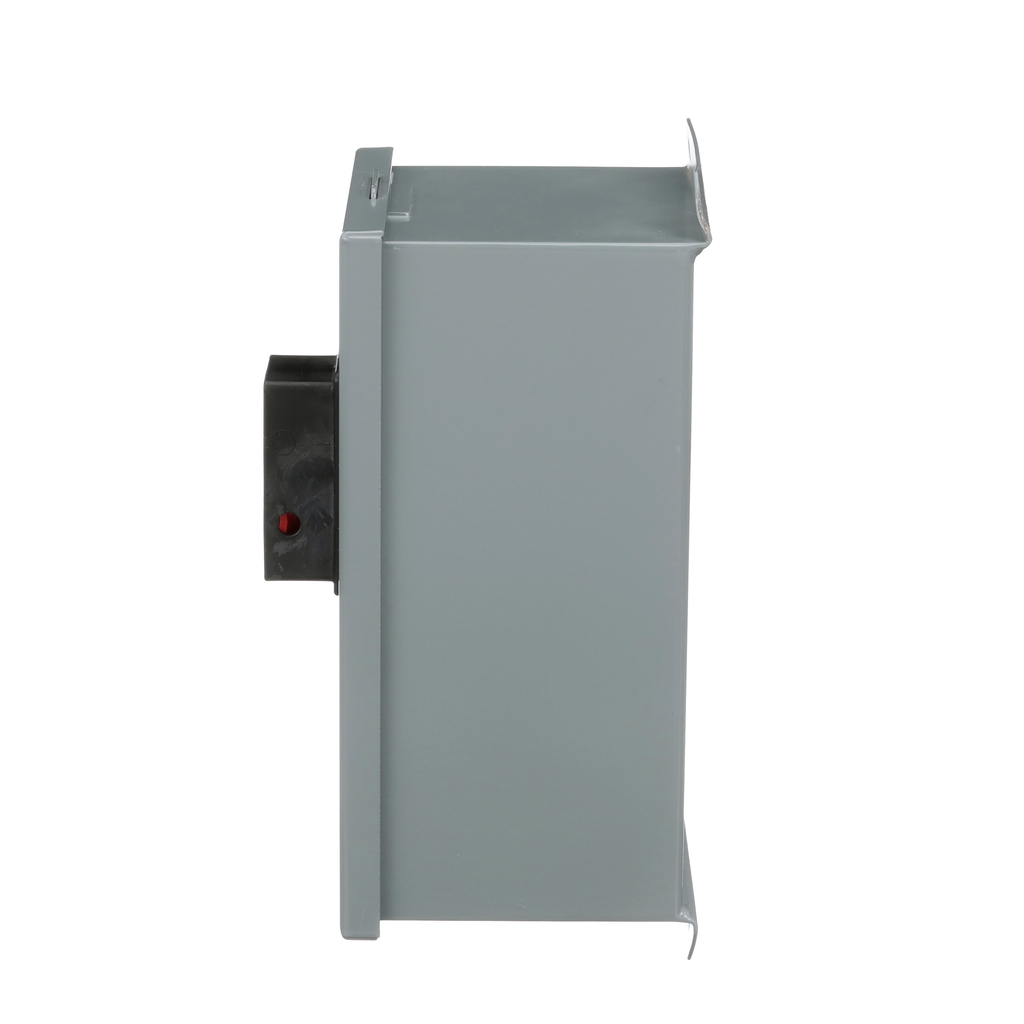

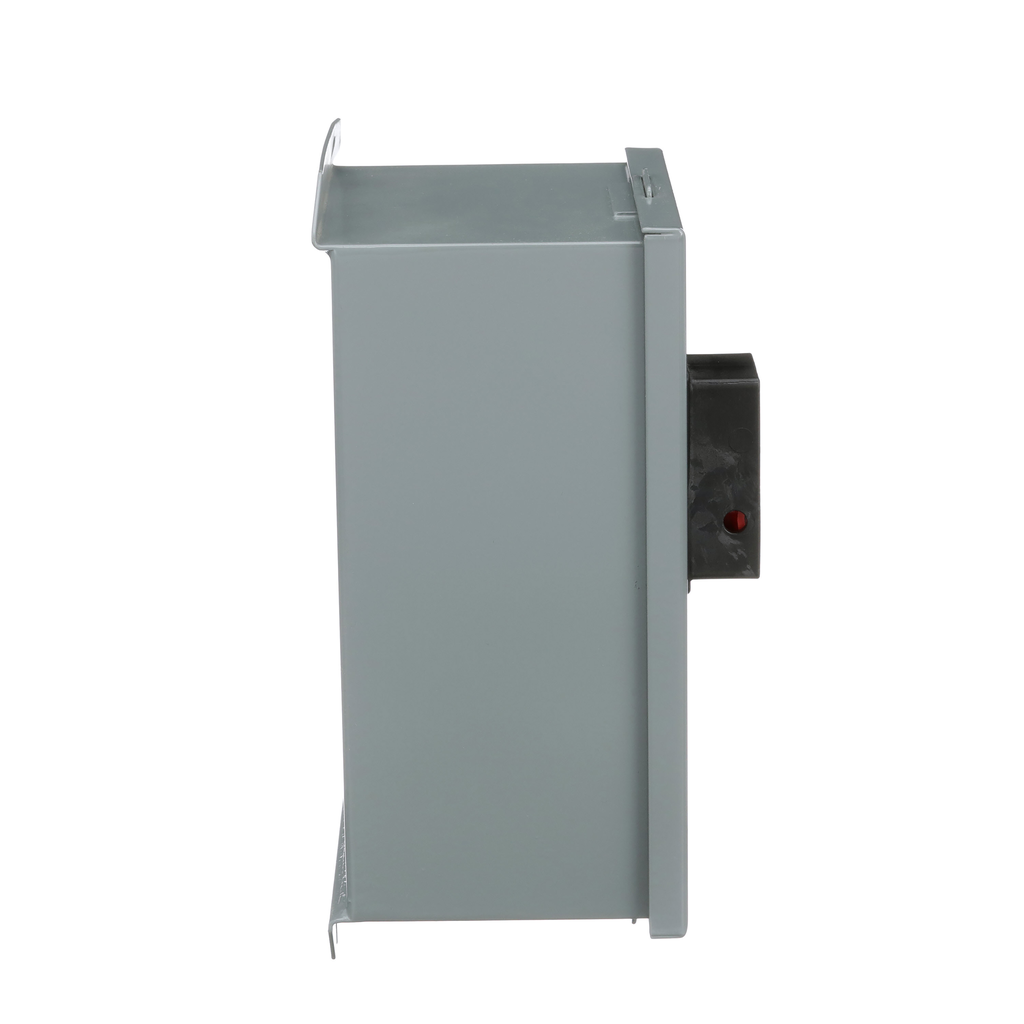

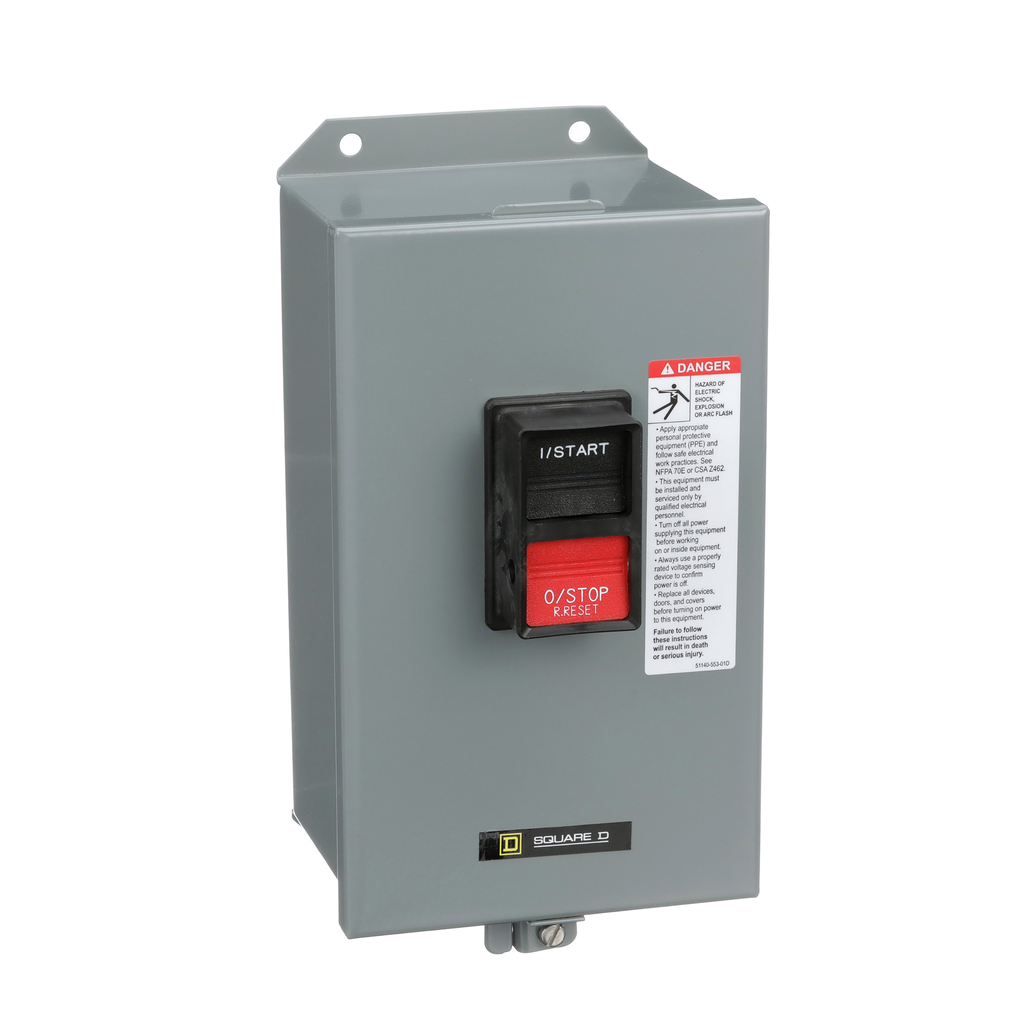

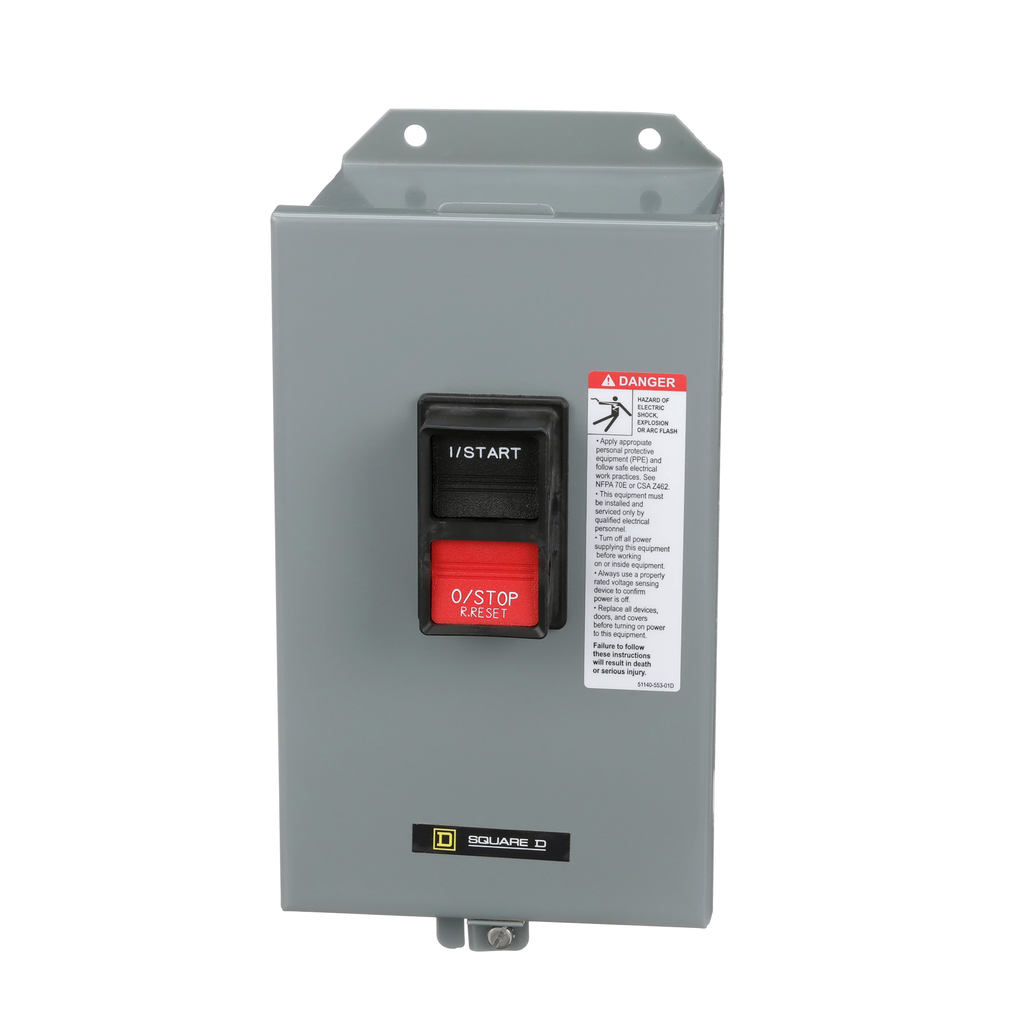

Square D 2510MBA1 230 VAC 18 Amp 2 Hp 2-Pole NEMA 12 Non-Reversing Manual Starter

Manufacturer: Square-D / Schneider | Catalog # 2510MBA1 | Cooper Electric Part # 295037
$381.38 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Brochure Product Catalog Page Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical ap

Technical Information

Amperage
18A
Contact Configuration
Without
Enclosure
12
NEMA Size
M-0
Number of Poles
2 Pole
Reset Type
THERMAL - MELTING ALLOY
Size
5.76 in
TC Connection
Pressure wire clamp
Type
Manual Starter
Voltage
600 Volt

Manufacturer Information

Brand
Square D
Sub Brand
M

General Product Info

12-Digit UPC
785901829713
Environmental Conditions
DUST TIGHT AND DRIP TIGHT (INDOOR)
GTiN
00785901829713
Product UPC
78590182971

Dimensions

Depth
5.76 Inch
Height
10.92 Inch
Warranty Length
18 mth
Width
5.78 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA LR60905 Class 3211 05,UL Listed File E42243 CCN NLRV
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.37831499738240376
  • 0.4 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 5 kg CO2 eq.
  • 4.936315441030866
Ue Rated Operational Voltage
  • 600 V AC
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 19 kg CO2 eq.
  • 18.530410612875276
Nema Degree Of Protection
  • NEMA 12 painted sheet steel
Accessories
  • B0.63
  • B0.71
  • B0.81
  • B0.92
  • B1.03
  • B1.16
  • B1.30
  • B1.45
  • B1.67
  • B1.88
Maximum Horse Power Rating
  • 1-1 hp 115 V AC, 1 phase
  • 2-2 hp 230 V AC, 1 phase
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 4 kg CO2 eq.
  • 4.188085850599413
Accessory Products
  • B0.63
  • B0.63
  • B0.71
  • B0.71
  • B0.81
  • B0.81
  • B0.92
  • B0.92
  • B1.03
  • B1.03
  • B1.16
  • B1.16
  • B1.30
  • B1.30
  • B1.45
  • B1.45
  • B1.67
  • B1.67
  • B1.88
  • B1.88
Carbon Footprint Of The Distribution Phase A4
  • 0.9137787680412307
  • 0.9 kg CO2 eq.
AWG Gauge
  • AWG 14...AWG 8 copper
Product Certifications
  • UL listed file E42243 CCN NLRV
  • CSA LR60905 class 3211 05
