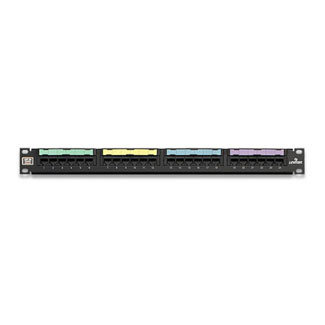

Leviton 5G596-U24 Category 5E 24-Port 1-Rack Unit Universal Patch Panel

Manufacturer: Leviton Mfg Co | Catalog # 5G596-U24 | Cooper Electric Part # 293906
$200.26/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Leviton Cat 5e Flat 110-Style Patch Panels and Patch Blocks are ideal for modular cross connection and available in a multitude of port densities to meet the needs of high-speed data applications. Craft-friendly 110 punch-downs on the rear of the panel make installation easy

Technical Information

Applications
High-Speed Data Applications
Conductor Size
26-22 AWG
Connection Type
110-IDC
Connector Type
110-IDC
Material
Plastic
Number of Ports
24
Standard
ANSI\TIA-1096-A (Formerly FCC Part 68),ANSI\TIA-568-C.2,CULus Listed,ISO\IEC 11801
Termination Type
110-Style Punchdown
Type
110-Style Flat Patch Panel

Manufacturer Information

Brand
Leviton
Sub Brand
GigaMax®

General Product Info

12-Digit UPC
078477178485
Color
Black
Finish
Painted
GTiN
00078477178485
Product UPC
07847717848

Dimensions

Depth
1.31 Inch
Height
19 Inch
Width
1.72 in

Certifications and Compliance

Country of Origin
USA
Patents
  • CA2567104
  • MX263819
Features
  • Patented Retention Force Technology protects tines from damage and increases system longevity
  • Craft-friendly installation
  • Universal T568A and T568B wiring cards for 110-style IDC terminations
  • Color-coded front labeling for easy port identification (ANSI/TIA-606-C compliant)
  • Terminates 26-22 gauge solid conductors
  • Centralized labeling (available on 48-port) promotes greater visibility of labels when patch cords are routed into horizontal cable management above and below the patch panel
  • Capable of multiple re-terminations
  • Panel available with patented magnifying lens label holder for easy reading
  • Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
  • ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications
