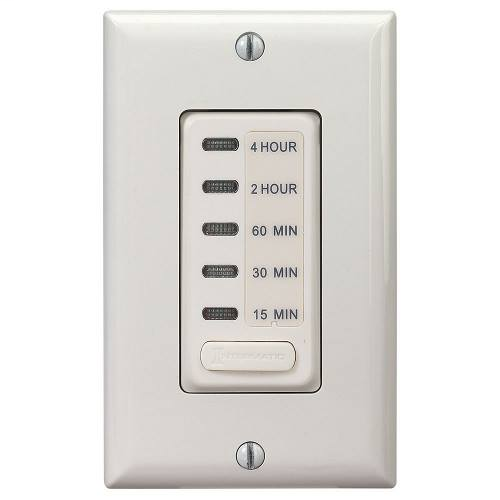

Product image for Intermatic EI215LA TIMER,LT ALMOND,1/4,1/2,1,2,4
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

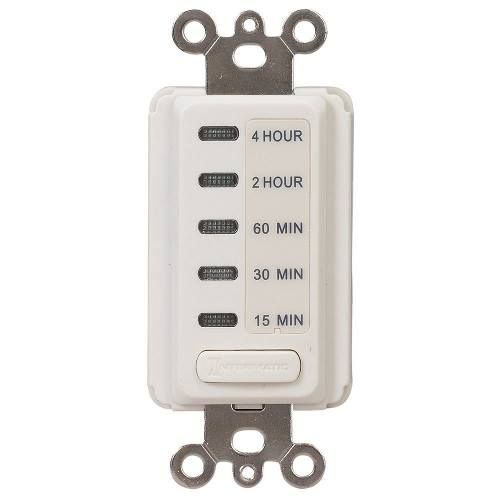

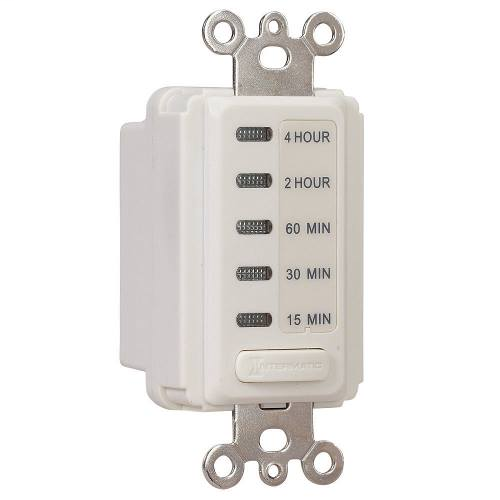

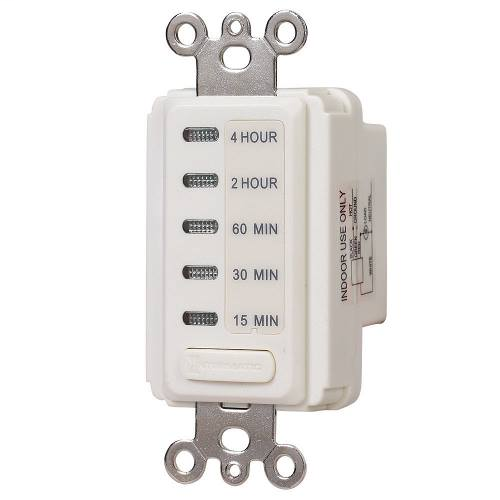

Intermatic EI215LA TIMER,LT ALMOND,1/4,1/2,1,2,4

Manufacturer: Intermatic, Inc | Catalog # EI215LA | Cooper Electric Part # 292956
$72.06/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
This timer requires no programming; preset countdown times are activated by pressing a single button. Silent operation makes this timer ideal for applications where the noise of mechanical countdown timers is of concern

Technical Information

Action
SPST
Amperage
15 Amp
Applications
Indoor, CFLs Lighting, LED Lighting, Fans, HVACR
Contact Configuration
1 NO
Contact Rating
8.3 AMP @ 120 VAC (Tungsten-Incandescent), 8 AMP @ 120 VAC (Ballast-Magnetic), 15 AMP @ 120 VAC (Resistive-Heater)
Frequency
50/60 Hz
Input Voltage
120 V
Max Operating Temperature
122 degrees F
Min Operating Temperature
0 degrees C
Mounting Type
Wall Mount
Number of Poles
1 Pole
Operating Temperature
122 degrees F
Size
2.79 HEIGHT X 1.75 WIDTH X 1.44 DEPTH IN, 70.86 HEIGHT X 44.45 WIDTH X 36.57 DEPTH MM
Standard
CULus Listed,California TITLE 24 Compliant,HVACR
Type
Electronic Countdown Auto Shut-Off In-Wall
Voltage
120 Volt
Wattage
1800 Watt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275108493
Color
Light Almond
GTiN
00078275108493
Product UPC
07827510849

Dimensions

Depth
36.5 mm
Height
104.8 mm
Warranty Length
1 yr
Width
42.93 mm
Features
  • Provides silent operation in time ranges from five minutes to 12 hours
  • Single button time selection, with some models having a HOLD mode, for continuous ON operation
  • Replaces single-pole switches in a variety of applications
  • Incandescent/fluorescent/CFL/LED compatible
  • For use with decorator-style wall plate (not included
  • Requires neutral connection
Applications
  • Bathroom Fans
  • Spas
  • Hot Tubs
  • Storage Closets
  • Garage Lights
