Thomas & Betts 10RC-6F 12-10 AWG Wire Range #6 Bolt Hole Yellow Insulated Vinyl Fork Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # 10RC-6F | Cooper Electric Part # 29020
$259.75/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

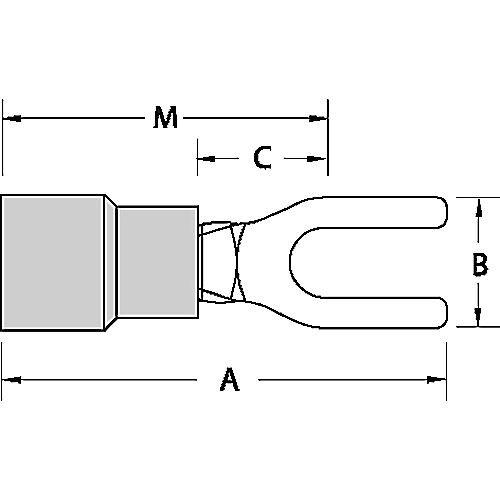

Vinyl-Insulated Fork Terminal, Length 1.09 Inches, Width .31 Inches, Maximum Insulation .210, Bolt Hole #6, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Stud Size
#6
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210838199
Color
Yellow
Finish
Tin Plated
GTiN
05414363935704
Product UPC
78621083819
Used With
Round Conductors

Dimensions

Height
3.3 Inch
Thickness
.04 in
Width
4.69 in
Features
  • These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.
Certifications
  • CSA
  • UL
