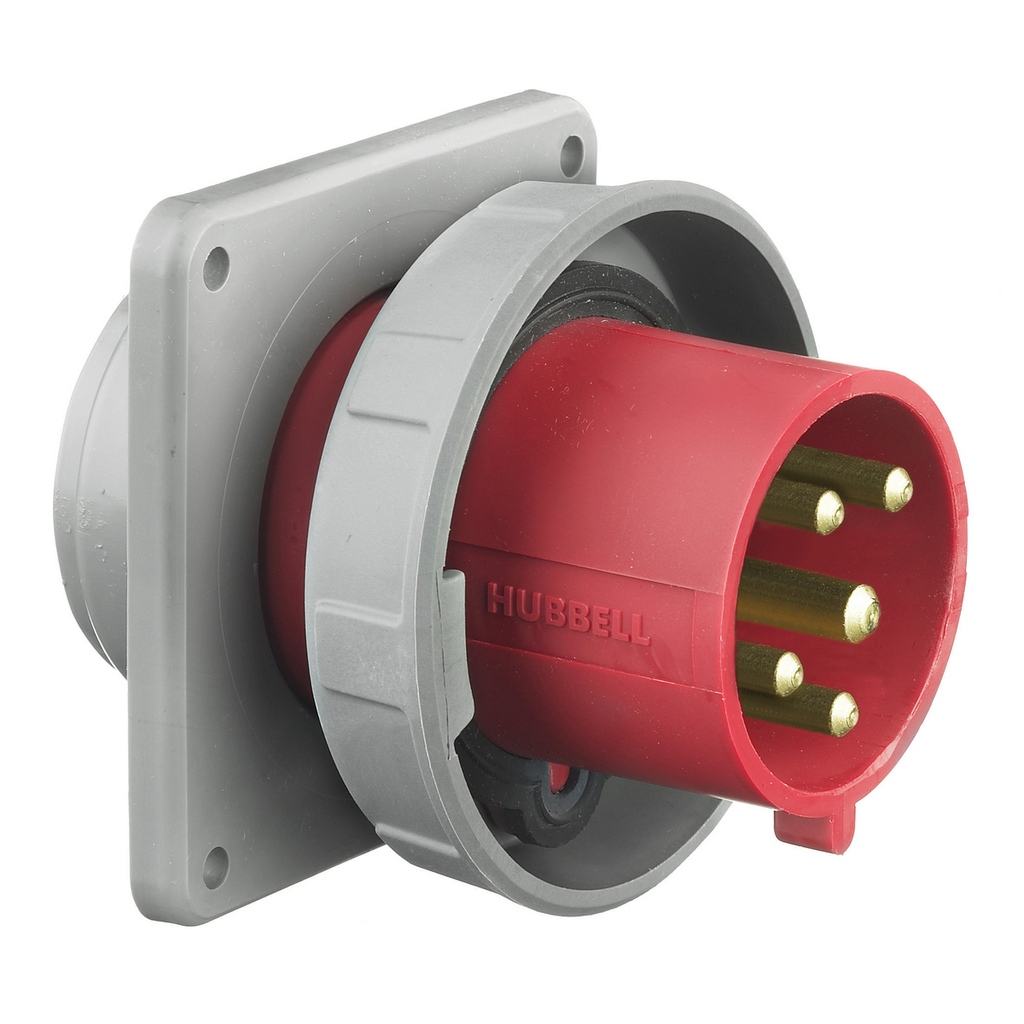

Product image for Hubbell HBL563B6W PS, IEC, INLET, 4P5W, 63A 220-415V, w/T
Email

Hubbell HBL563B6W PS, IEC, INLET, 4P5W, 63A 220-415V, w/T

Manufacturer: Hubbell Wiring Device | Catalog # HBL563B6W | Cooper Electric Part # 288968
$826.17/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Flanged Inlet, 63A 220-415V, 4-Pole 5- Wire Grounding, Terminal Screws, Red, Watertight

Technical Information

Amperage
63 Amp
Applications
For High Ampacity Watertight Connections
Conductor Size
8-2 AWG
Current
63 Amp
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
Multi Phase
Number of Poles
4 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Style
Standard Service
TC Connection
Pressure Screw Terminals
Temperature Rating
-40 degrees C
Type
Flanged, Waterproof
Voltage
240/415 Volt
Wattage
26145 Watt
Wire Count
5
Wire Size
8-2 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Inlets

General Product Info

12-Digit UPC
783585405742
Color
Red
GTiN
00783585405742
Product UPC
78358540574
Weight
2 lb

Dimensions

Height
4.62 Inch
Length
6 Inch
Width
5.250 in

Certifications and Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
USA
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstand 3000V AC
  • Electrical - Max. Working Voltage - 600V RMS
  • Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17
  • Environmental - Ingress Protection - IP67 Suitability
  • Environmental - Moisture Resistance - Watertight per IEC 60309-1
  • Environmental - Operating Temperatures - Maximum Continuous 75°C
  • Minimum - 40°C w/o impact
  • Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682
  • Mechanical - Product Identification - Ratings are a permanent part of the device housing
  • Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Features
  • Solid one-piece pins for reliable electrical contact
  • Watertight
  • Gasketed sealing ring provides watertight seal
  • Raised collar surrounds each phase pin
Industry Standard(s)
  • CSA Certified File LR280C
  • UL Classified to IEC 60309-1 IEC 60309-2
  • UL Listed, File E146032
Voltage Rating
  • 220/380 V V
  • 240/415 V V
