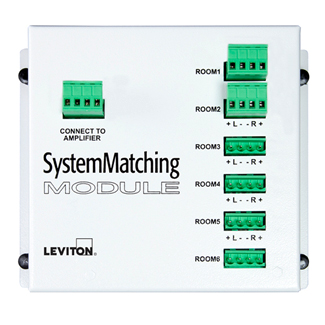

Product image for Leviton SGAMP 6.38 x 2.57 x 5.38 Inch 225 W White Independent Channel Grounding 6-Zone Audio Surge System Matching Module
Email

Leviton SGAMP 6.38 x 2.57 x 5.38 Inch 225 W White Independent Channel Grounding 6-Zone Audio Surge System Matching Module

Manufacturer: Leviton Mfg Co | Catalog # SGAMP | Cooper Electric Part # 288092
$246.49/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
One of the most challenging aspects of multi-room audio system design is the matching of speakers, zones and volume controls to the amplifier. Typical solutions employ impedance matching volume controls (which can lower system sensitivity and are sometimes inconvenient to set-up) or a separate impedance-matching audio component that is expensive and takes up extra space in the entertainment center. The Leviton Architectural Edition System Matching Module takes a much more contractor-friendly approach that saves time and money. All impedance matching can be accomplished at the central wiring point where speaker and control wiring converge to interface with the amplifier (either inside a structured cabling enclosure or at a designated wallplate location). The module is engineered for high power handling and long-term reliability with a design based on the same thermo-rated Cermetile audio-grade resistors used in the Leviton Architectural Edition Decora® brand Strauss Volume Controls. Note: like other system impedance-matching devices, the SGAMP must not be used in conjunction with impedance matching volume controls.

Technical Information

Applications
For use with Non-Impedance Matching Volume Controls in Systems up to Six Rooms
Grounding
Independent Channel,Independent Channel
Mounting Type
Enclosure
Power Rating
225 W Peak, 150 W RMS
Style
Leviton Spec-Grade Sound
Type
6-Zone

Manufacturer Information

Brand
Leviton
Sub Brand
SPECGRADE AUDIO

General Product Info

12-Digit UPC
078477244432
Color
White
GTiN
60078477244434
Product UPC
07847724443

Dimensions

Depth
2.57 Inch
Height
5.38 Inch
Width
6.38 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • AutoSurge Speaker Protection - Two-stage power protection, soft or peak, and hard or RMS, based on Leviton's expertise in industrial strength AC surge suppression, protects speakers from potentially damaging signals.
  • The Spec-Grade Sound System Matching Module - is a solution that saves time and money, as well as one that provides another layer of AutoSurge circuit protection to ensure total system reliability. The module is engineered for high power handling and long term reliability with a design based on the same thermo-rated Cermetile audio-grade resistors used in Leviton's Decora Strauss Volume Controls.
  • Activates Only When Harmful Voltage Transients are Present - such as those produced when a system is significantly overdriven, resetting itself automatically shortly thereafter. It can instantaneously handle the full peak output power of any consumer-grade amplifier on the market today.
  • Convenient Single-Point Connection for All Speakers - Mounts in Leviton Structured Media Center and provides a convenient single connection point for up to 6 rooms/zones.
  • Independent channel grounds for safe amplifier connection.
