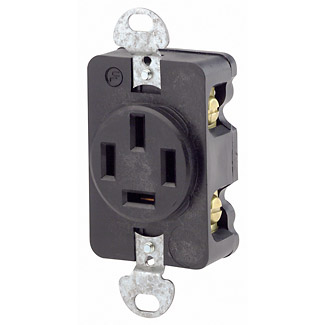

Product image for Leviton 7250-FR 120/208 Volt Star 20 Amp 4-Pole 4-Wire NEMA 18-20R Black Nylon Flush Mount Straight Blade Receptacle
Image thumbnail 0
Image thumbnail 1
Email

Leviton 7250-FR 120/208 Volt Star 20 Amp 4-Pole 4-Wire NEMA 18-20R Black Nylon Flush Mount Straight Blade Receptacle

Manufacturer: Leviton Mfg Co | Catalog # 7250-FR | Cooper Electric Part # 287459
$91.48/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
20 Amp, 120/208 Volt, 3., NEMA 18-20R, 4P, 4W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Non-Grounding, , Side Wired, Steel Strap, - Black

Technical Information

Amperage
20 Amp
Applications
Commercial
Body Material
Nylon
Conductor Size
14-6 AWG
Connection Type
Side Wired
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Non-Grounding
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Box
NEMA
18-20R
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Standard
ANSI C-73
TC Connection
Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Type
Single
Voltage
120 Volt
Wire Count
4
Wire Size
14-6 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
LOCKING DEVICES

General Product Info

12-Digit UPC
078477808733
Color
Black
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477808733
Product UPC
07847780873

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
NEMA
  • 18-20R
Features
  • Built of durable thermoplastic, Leviton Power Receptacles in flush mount, surface mount and panel mount versions come equipped with heavy-gauge, double wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings. Flush mount receptacles fit Levitons wide range of 2.15-diameter wallplates and mounting hardware is included.
