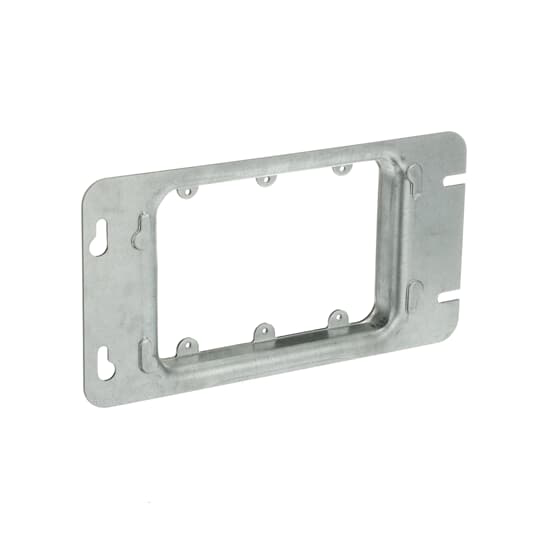

Product image for Steel City 3GC Three Gang Steel Gang Box Cover, 8-13/16" x 4-11/16", Raised 15/16" for Plaster, 13.5 cu.in.
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Steel City 3GC Three Gang Steel Gang Box Cover, 8-13/16" x 4-11/16", Raised 15/16" for Plaster, 13.5 cu.in.

Manufacturer: Steel City | ABB | Catalog # 3-GC | Cooper Electric Part # 28624
$2,060.42/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Three Gang Box Cover, 13.5 Cubic Inches, 8-13/16 Inches Long x 4-11/16 Inches Wide x 13/16 Inches Raised for Plaster, Galvanized Steel, Holes between Gangs are Spaced on 13/16 Inch Centers, Tapped Holes in Ears, Spaced on 3-9/32 Inches Centers to Accommodate All Standard Receptacles and Switches, Furnished with Extra Plugged Screw Holes, if these Screw Holes are Used, the Cover will fit the Next Smaller Size Box

Technical Information

Applications
The cover will fit the next smaller size box
Material
Steel
Number of Gangs
3 Gang
Number of Outlets
3
Size
4-11/16 in
Standard
UL E2969
Type
Outlet Box Covers

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
785991129502
Finish
Galvanized
GTiN
00785991129502
Product UPC
78599112950

Dimensions

Depth
13/16 Inch
Length
8-13/16 Inch
Width
4-11/16 in
Features
  • Tapped holes in ears are spaced 3-9/32\" to accommodate all standard receptacles and switches.
  • Holes between gangs are spaced on 1-3/16\" centers.
  • Furnished with extra plugged screw holes. If these screw holes are used, the cover will fit the next smaller size box.
