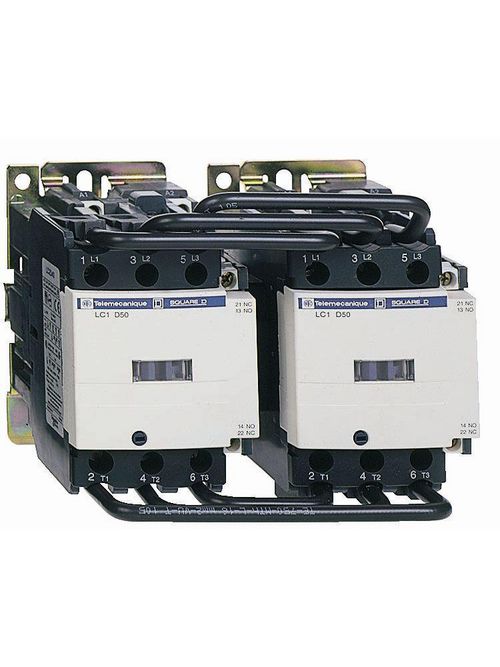

Square D LC2D50G7 575 VAC 50 Amp 3-Pole 1NO 1NC Touch Safe Terminal Full Voltage Reversing IEC Contactor

Motor control

120@50/60Hz V

1 NO + 1 NC,3 NO

10 A 60 AC CONTROL CIRCUIT-80 A 60 AC POWER CIRCUIT

- Ith 80 A 50 Hz For Power Circuit

2.4 kg

3 Pole

3600 CYC/H 60 AC

-40-70 Adegrees C AT UC,-5-60 Adegrees C

5.59 in

CSA C22.2 No 14,EN 60947-4-1,EN 60947-5-1,IEC 60947-4-1,IEC 60947-5-1,UL 508

-60-80 degrees C

Control circuit 1 1-4 mmflexible with cable end;power circuit 2 1-25 mmflexible with cable end;power circuit 2 1-25 mmflexible without cable end;power circuit 2 1-25 mmsolid without cable end;power circuit 2 1-35 mmflexible with cable end;power circuit 2 1-35 mmflexible without cable end;power circuit 2 1-35 mmsolid without cable end;control circuit 1 1-4 mmflexible without cable end;control circuit 1 1-4 mmsolid without cable end;control circuit 2 1-2.5 mmflexible with cable end;control circuit 2 1-4 mmflexible without cable end;control circuit 2 1-4 mmsolid without cable end;power circuit 1 1-35 mmflexible with cable end;power circuit 1 1-35 mmflexible without cable end;power circuit 1 1-35 mmsolid without cable end

Reversing contactor;Standard;Mechanical

3.7 Watt AC-3 - ITH 80 Amps

Schneider Electric

LC2D

338911045668

03389110456677

78590145667

2.4 kg

142 mm

5.2 in

18 mth

6.5 in

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

BV,CCC,CSA,DNV,GL,GOST,LROS (Lloyds Register Of Shipping),RINA,UKCA,UL

Czechia
