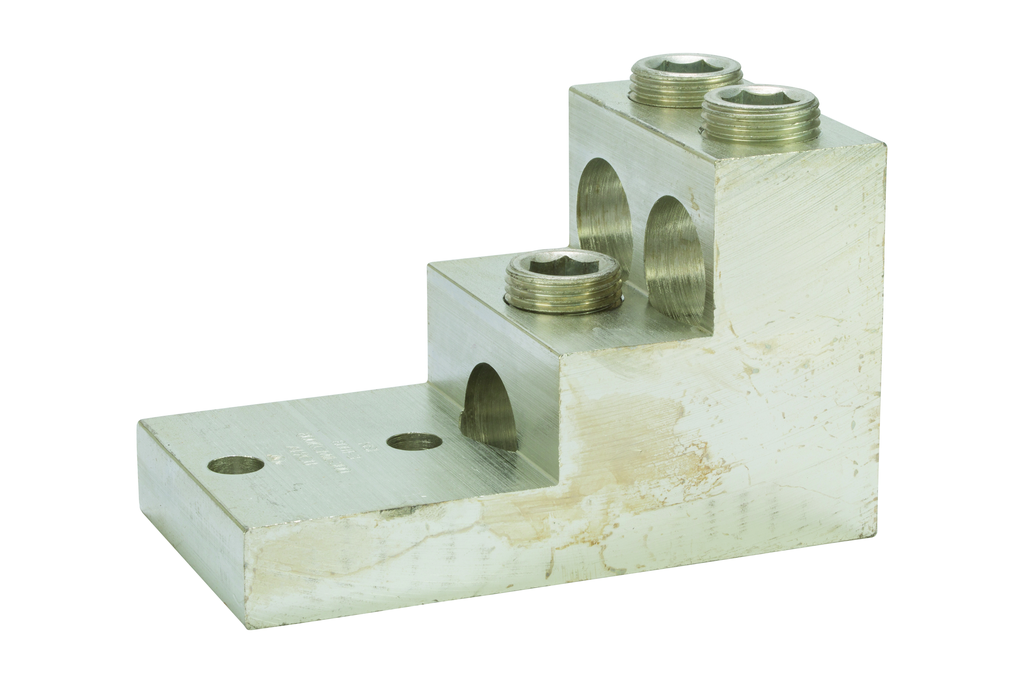

Product image for NSI 800T-3 Step Panel Lug (3)800-30
Email

NSI 800T-3 Step Panel Lug (3)800-30

Manufacturer: NSi | Catalog # 800T-3 | Cooper Electric Part # 285272
$91.34/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet
3 Port Stacked Lug 800 - 300 MCM Stacked Lugs are large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts (2000V max. per UL486B). UL486A/B Listed. Temperature rating 90 degrees C. Mounting hole spacing is NEMA standard of 1.75".

Technical Information

Applications
Wire Termination
Bolt Size
3/8 IN
Conductor Size
300-800 kcmil
Material
6061T-6 Aluminum Alloy
Max Temperature
90 degrees C
Mounting Hole
2
Number of Conductors
3
Number of Poles
1 Pole
Number of Ports
3
Standard
CULUS
Temperature Rating
90 degrees C
Type
Aluminum Stacked Lug
Voltage
600 Volt
Wire Size
300-800 kcmil

Manufacturer Information

Brand
NSI Industries
Sub Brand
Mechanical Connector

General Product Info

12-Digit UPC
662381001863
Color
Aluminum
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381001863
Product UPC
66238100186

Dimensions

Height
3 Inch
Length
4.91 Inch
Warranty Length
1 yr
Width
2.63 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Large size set-screw connectors with wire holes stacked on top of each other to minimize the width of the connector
  • Made of 6061T-6 aluminum alloy
  • Electro-tin plated for low contact resistance
  • For use with copper or aluminum conductors
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486A-486B
