Square D XB4BG33 22 mm 1.2 Amp 600 VAC 2NO 3-Position Maintained Round Key Non-Illuminated Selector Switch

Manufacturer: Square-D / Schneider | Catalog # XB4BG33 | Cooper Electric Part # 283680
$103.64 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure

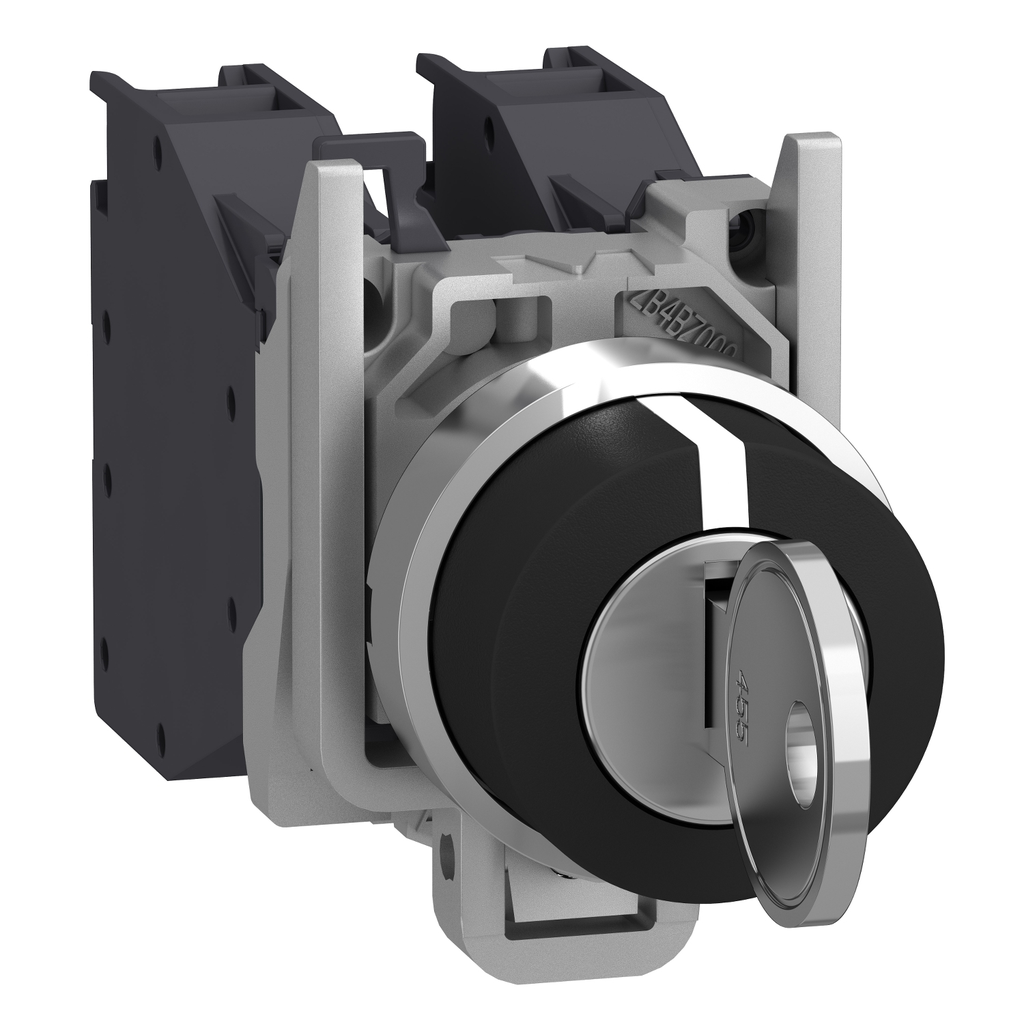

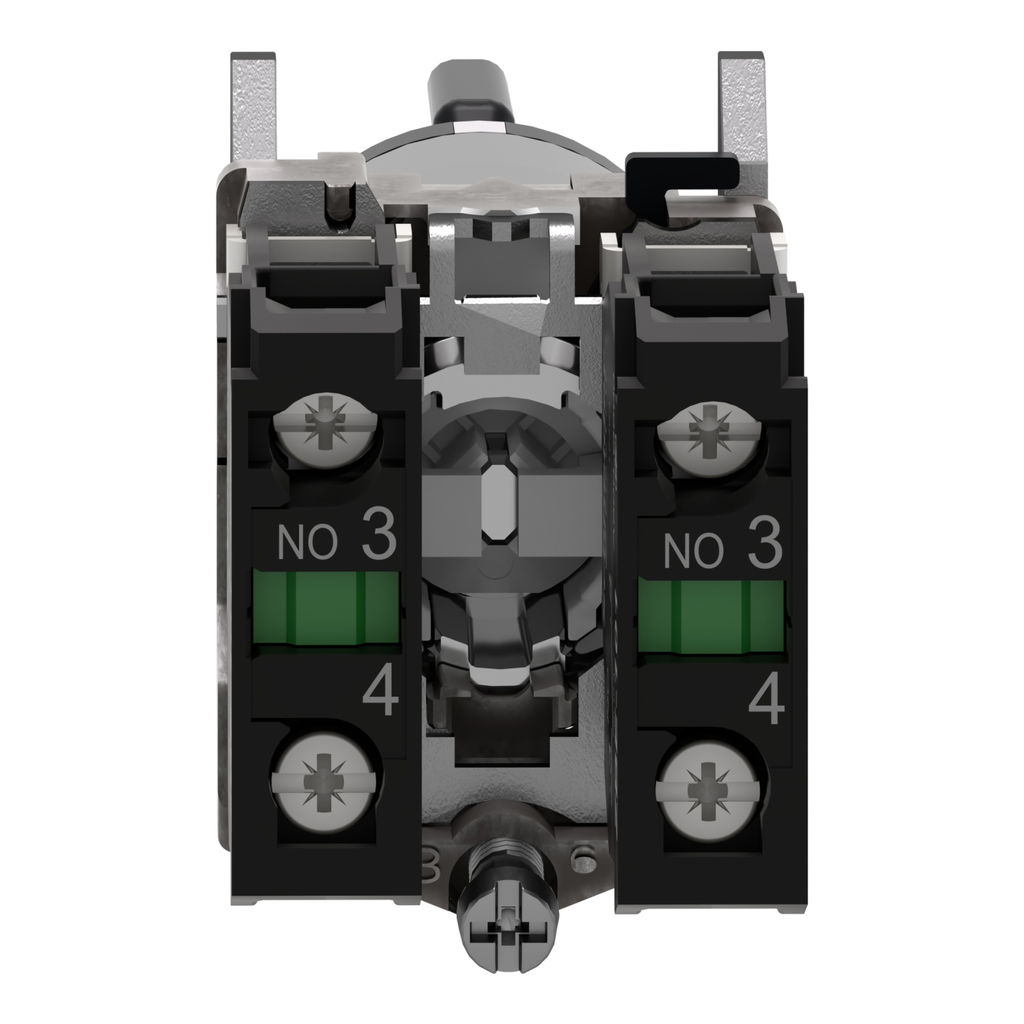

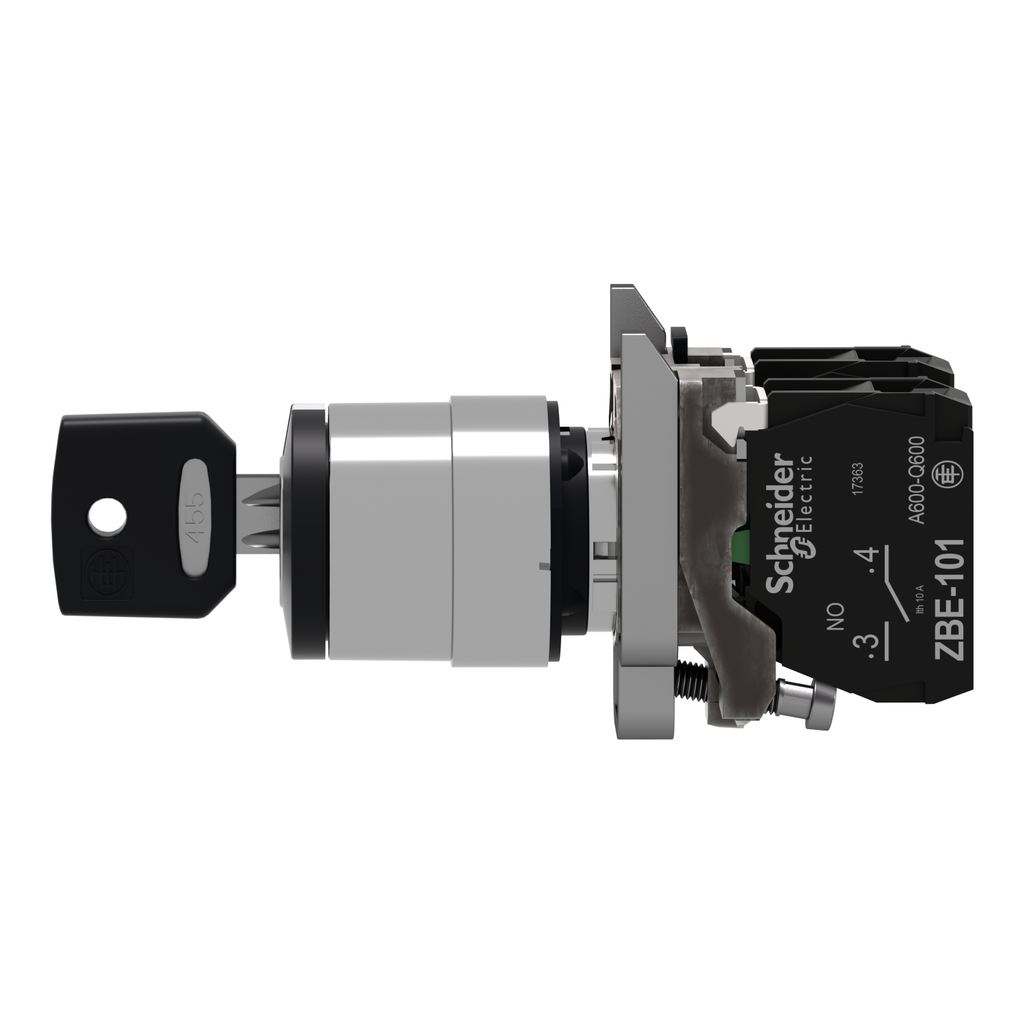

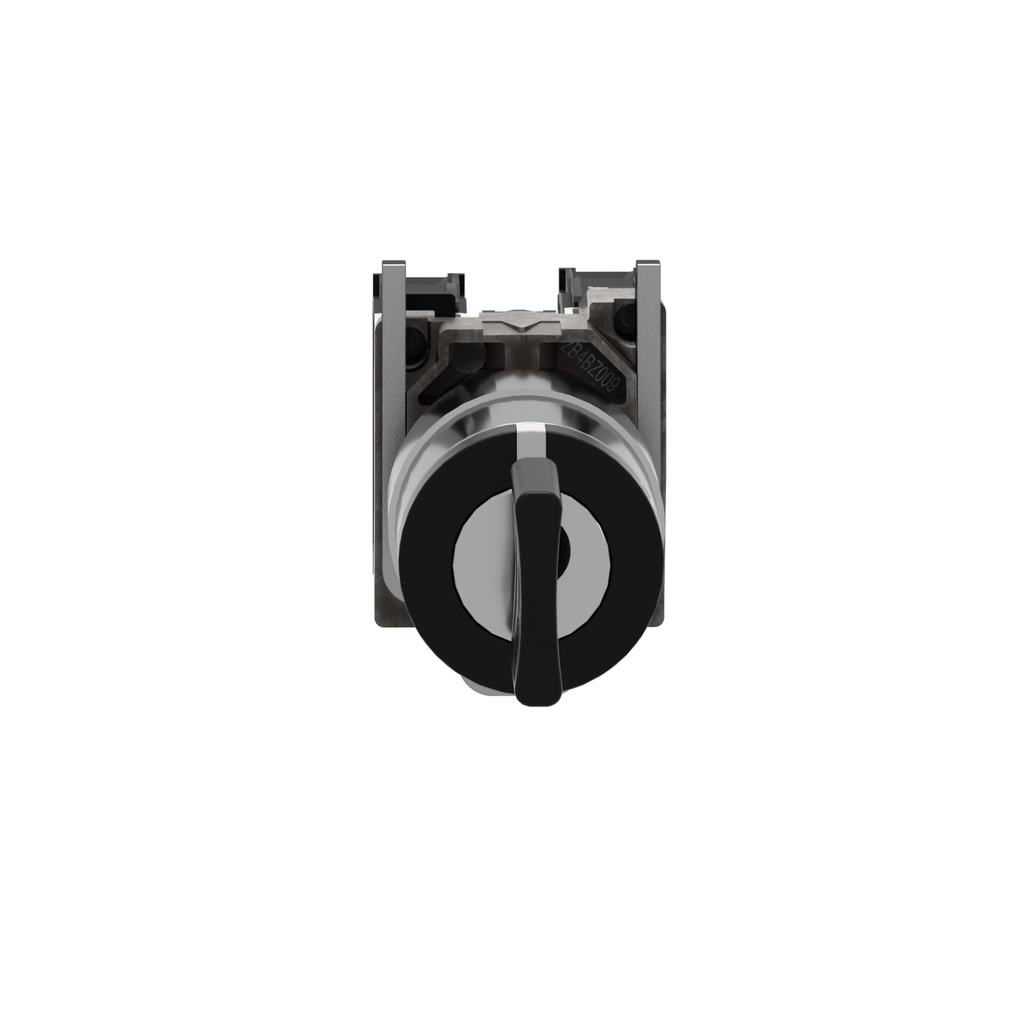

This Harmony XB4 modular black key selector switch (key no.455) has 3 positions, operates with a stay-put mechanism with key withdrawal on the center position. It has a metal bezel. This key selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Technical Information

Action
Slow-break
Actuator
3 positions +/- 45
Amperage
10 Amp
Bezel Material
Chromium Plated Metal
Contact Configuration
2 NO
Contact Material
Silver Alloy
Contact Rating
AC15 - DC13
Enclosure
NEMA 4/4X/13
Head Type
Standard
Net Weight
0.127 kg
Operating Temperature
-40-70 Adegrees C
Size
3.39 in
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP
Type
Selector switch

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XB4

General Product Info

12-Digit UPC
389110887153
Environmental Conditions
WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
03389110887150
Product UPC
78590138065
Weight
0.127 kg

Dimensions

Depth
86 mm
Height
47 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZBZ2102
  • ZBY2101
Cross Sell Products
  • XAPD1501
Spare Part Products
  • ZB4BZ103
  • ZB4BG3
