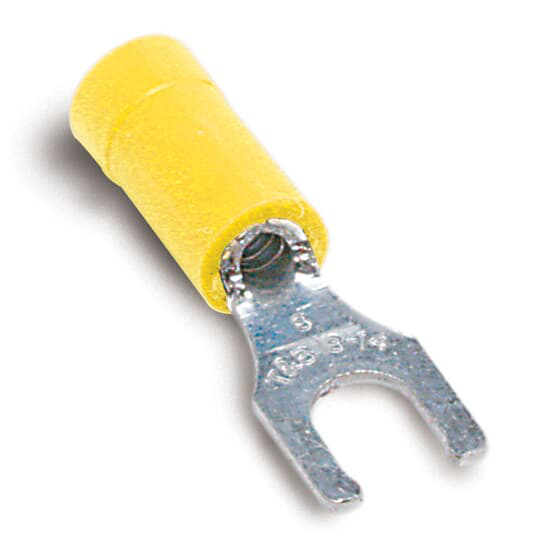

Product image for Thomas & Betts 10RC-14FL Vinyl-Insulated Locking Fork Terminal - #12-10, 1/4"bolt
Image thumbnail 0
Image thumbnail 1
Email

Thomas & Betts 10RC-14FL Vinyl-Insulated Locking Fork Terminal - #12-10, 1/4"bolt

Manufacturer: ABB | Thomas & Betts | Catalog # 10RC-14FL | Cooper Electric Part # 283620
$380.33/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

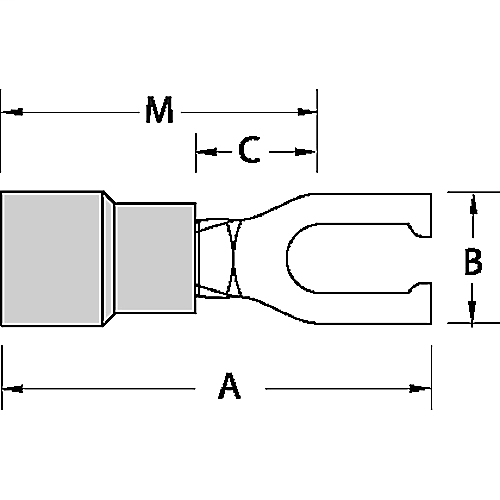

Vinyl-Insulated Locking Fork Terminal, Length 1.09 Inches, Width .49 Inches, Maximum Insulation .220, Bolt Hole 1/4 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Standard
CSA,E2186,UL
Stud Size
1/4 in
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Locking, Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210807287
Color
Yellow
Finish
Tin Plated
GTiN
05414363136231
Product UPC
78621080728
Used With
Round Conductors

Dimensions

Height
9 Inch
Thickness
.04 in
Width
9-1/4 in
Certifications
  • UL
  • CSA
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
