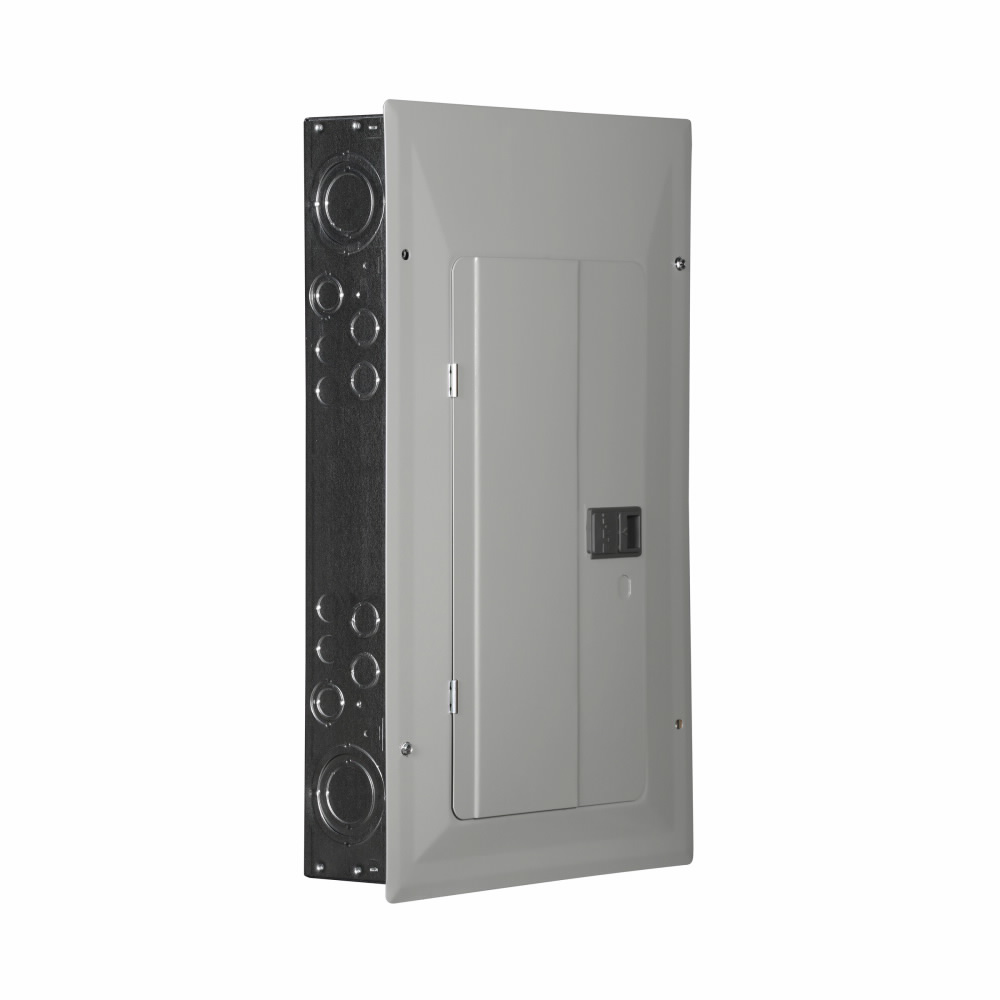

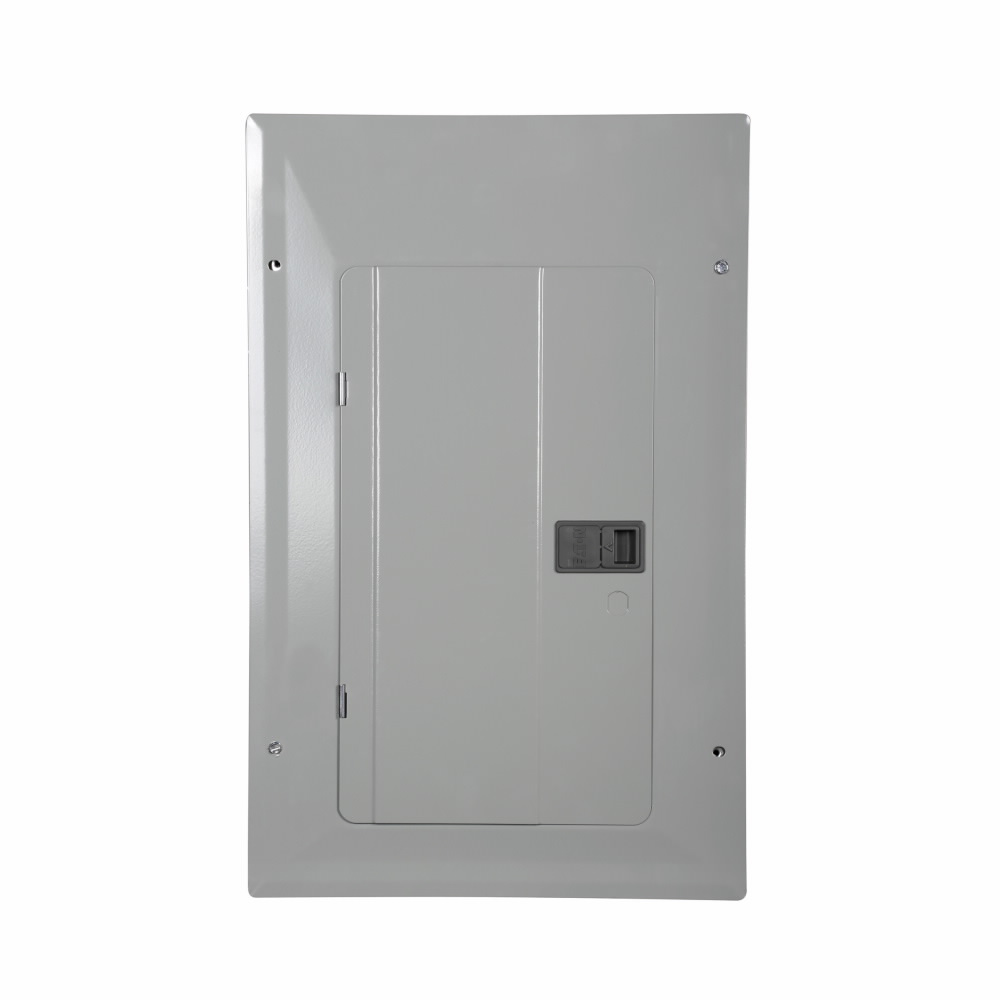

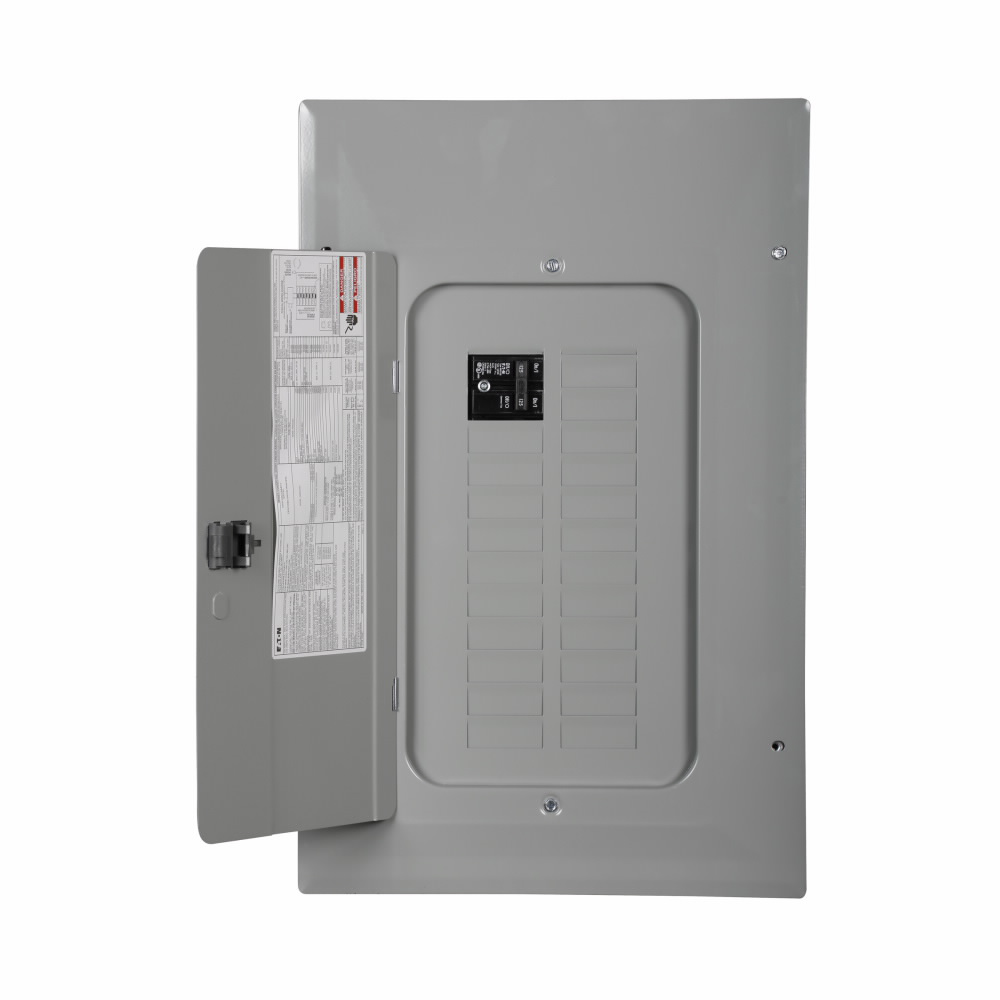

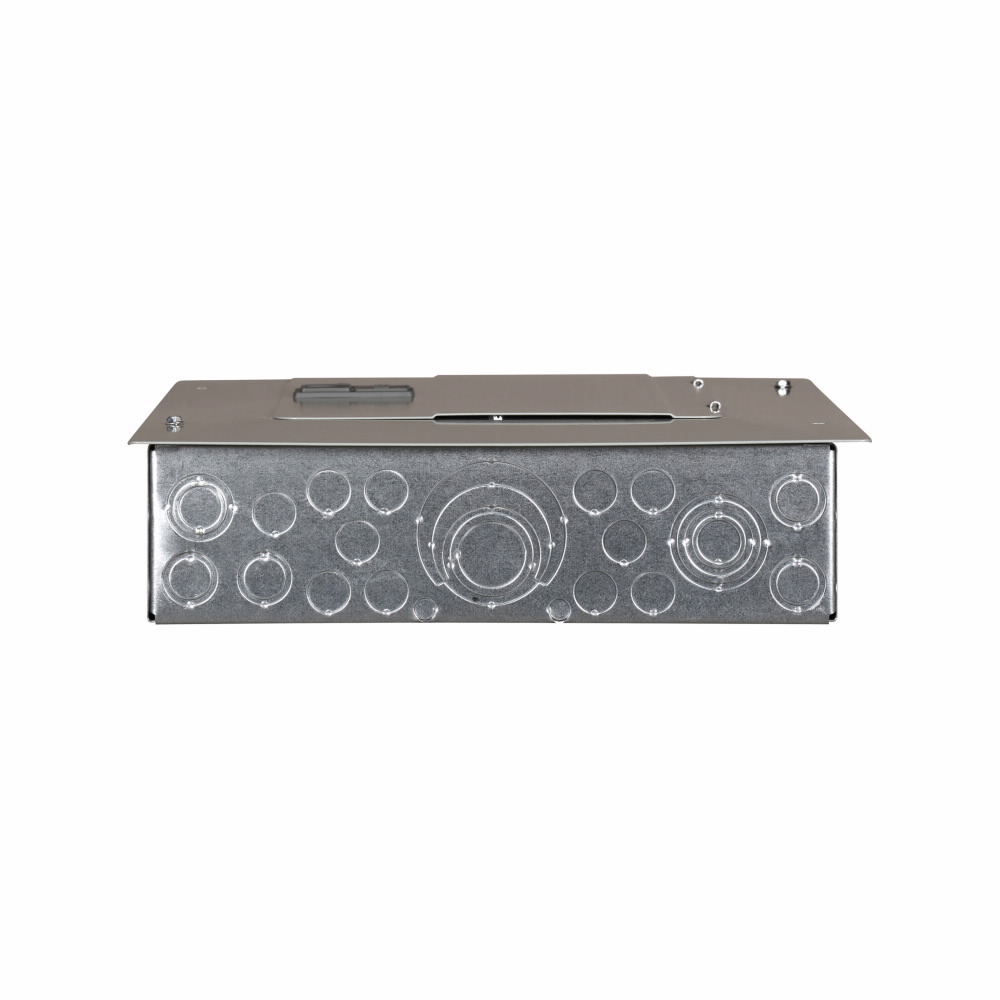

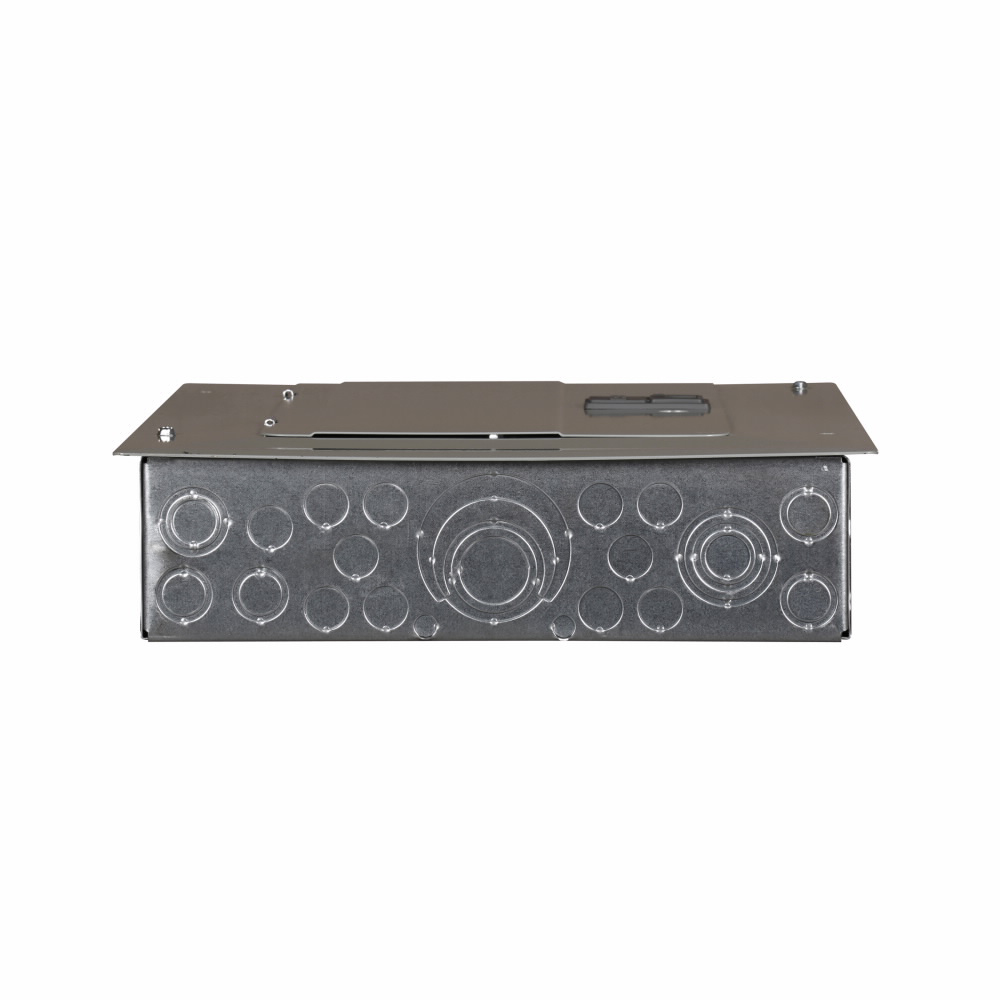

Product image for Eaton Electrical BR2024B125 120/240 VAC 125 Amp 1-Phase 3-Wire 1 Inch Main Breaker Load Center
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Email

Eaton Electrical BR2024B125 120/240 VAC 125 Amp 1-Phase 3-Wire 1 Inch Main Breaker Load Center

Manufacturer: Cutler-Hammer / Eaton | Catalog # BR2024B125 | Cooper Electric Part # 283317
$805.52/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
BR style 1-inch loadcenter, main circuit breaker, no feed-thru lugs, 125A, single-phase, 24-pole, 24 circuits, 20 spaces, 120/240V, #4-2/0 AWG Cu/Al at 60.C or 75.C wire, NEMA 1 enclosure, c1 box size

Technical Information

Amperage
125 Amp
Bus Material
Aluminum
Conductor Size
4-2/0 AWG
Cover Type
Cover included
Enclosure
NEMA 1
Enclosure Material
Metal
Interrupt Rating
10 kAIC
Mounting Type
Combination
NEMA
1
Number of Circuits
24
Number of Phases
1 Phase
Number of Spaces
20
Number of Wires
3 Wire
Size
C1
Standard
UL 50,UL 67
Type
Main Circuit Breaker
Voltage
120/240 Volt
Wire Size
4-00 AWG

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786676444453
Color
Black
GTiN
00786676444453
Product UPC
78667644445
Weight
24 lb

Dimensions

Height
16-3/4 Inch
Length
3.88 Inch
Width
14.31 in
