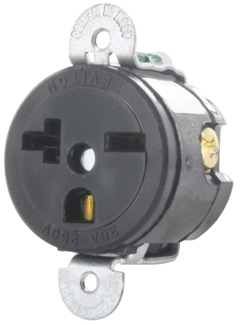

Product image for LEV 5458-SS EB REC SGL 2PO 3WI 6-20
Email

LEV 5458-SS EB REC SGL 2PO 3WI 6-20

Manufacturer: Leviton Mfg Co | Catalog # 5458-SS | Cooper Electric Part # 282854
$26.79/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
Single Receptacle Outlet, Commercial Specification Grade, Short Strap, 20 Amp, 250 Volt, Side Wire, NEMA 6-20R, 2-Pole, 3-Wire - Black

Technical Information

Amperage
20 Amp
Applications
Commercial
Base Material
Nylon
Body Material
Nylon
Conductor Size
14-10 AWG
Connection Type
Side Wired
Cover Material
Nylon
Dielectric
2000 V
Dielectric Strength
2000 V Minimum
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Grounding
Horsepower
2 hp
Material
Nylon
Mounting Type
Box
NEMA
WD-6
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
2.31 H x 1.20 D IN
Standard
ANSI C-73
TC Connection
Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Termination Type
Side Wire
Type
Single
Voltage
250 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Commercial Receptacles

General Product Info

12-Digit UPC
078477807644
Color
Black
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477807644
Product UPC
07847780764

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Levitons line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
NEMA
  • 6-20R
