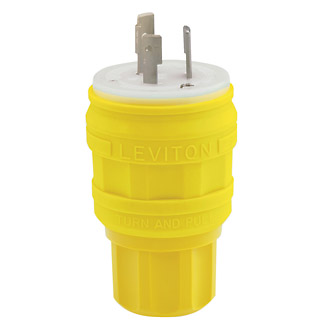

Product image for Leviton 26W47 125 Volt 20 Amp 2-Pole 3-Wire NEMA L5-20P Yellow Thermoplastic Vulcanizate Grounding Polarized Locking Plug
Image thumbnail 0
Image thumbnail 1
Email

Leviton 26W47 125 Volt 20 Amp 2-Pole 3-Wire NEMA L5-20P Yellow Thermoplastic Vulcanizate Grounding Polarized Locking Plug

Manufacturer: Leviton Mfg Co | Catalog # 26W47 | Cooper Electric Part # 281607
$115.31/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
20 Amp, 125 Volt, NEMA L5-20P, 2P, 3W, Locking Plug, Industrial Grade, Grounding, Wetguard - YELLOW

Technical Information

Actuator
Stainless Steel 300,Stainless Steel 300
Amperage
20 Amp
Applications
Industrial
Blade Type
Nickel-Plated Brass,Nickel-Plated Brass
Body Material
EPTR Rubber
Conductor Size
16-10 AWG
Connection Type
Screw Terminal
Contact Material
Electroless Nickel-Coated Brass,Nickel-Plated Brass
Cord Type
SO,SOO,ST,STO
Device Type
Locking Plug
Dielectric
2000 V
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
Material
TPV
Mounting Type
Cable
NEMA
WD-6
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Rating
UL 498
Screw Type
Electroless,Nickel-Coated Brass,Stainless Steel 300,Stainless Steel, Non-Magnetic
Size
24 Diameter X 3.61 L IN
Standard
ANSI C-73,CSA,UL
TC Connection
Screw Terminal
Temperature Rise
200 %
Terminal Size
#16-10 AWG
Torque
12 lb-in
Type
Locking,Watertight Plug
Voltage
125 Volt
Wire Count
3
Wire Size
16-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
DUSTGUARD WETGUARD

General Product Info

12-Digit UPC
078477967973
Color
Yellow
Environment
Wet
Environmental Conditions
Operating Temperature Range (-40 To 60) C
GTiN
00078477967973
Product UPC
07847796797

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
NEMA
  • L5-20P
Features
  • BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
  • WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
  • UNIQUE DESIGN- Exclusive tongue and groove design provides superior ingress protection from water, dirt and debris
  • HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
  • THE BRAND YOU TRUST- Backed by a lifetime warranty
