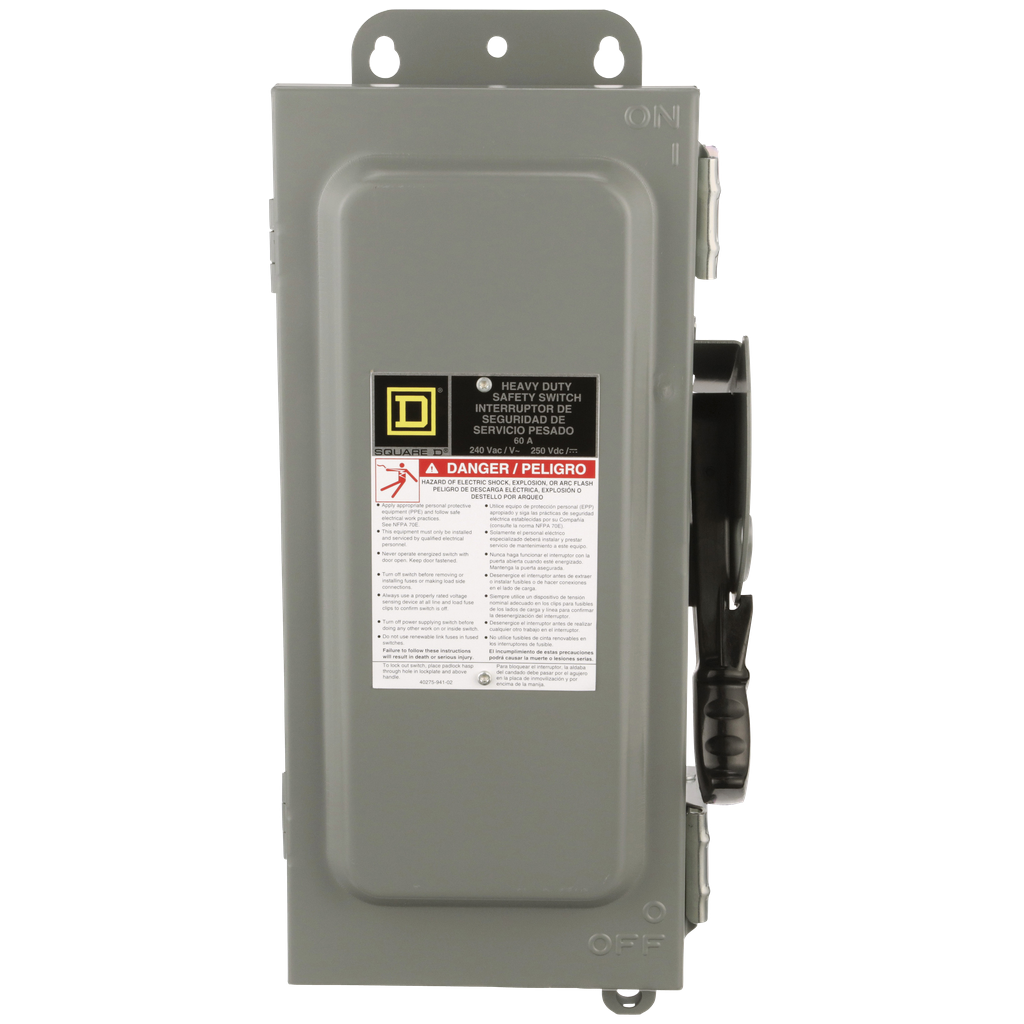

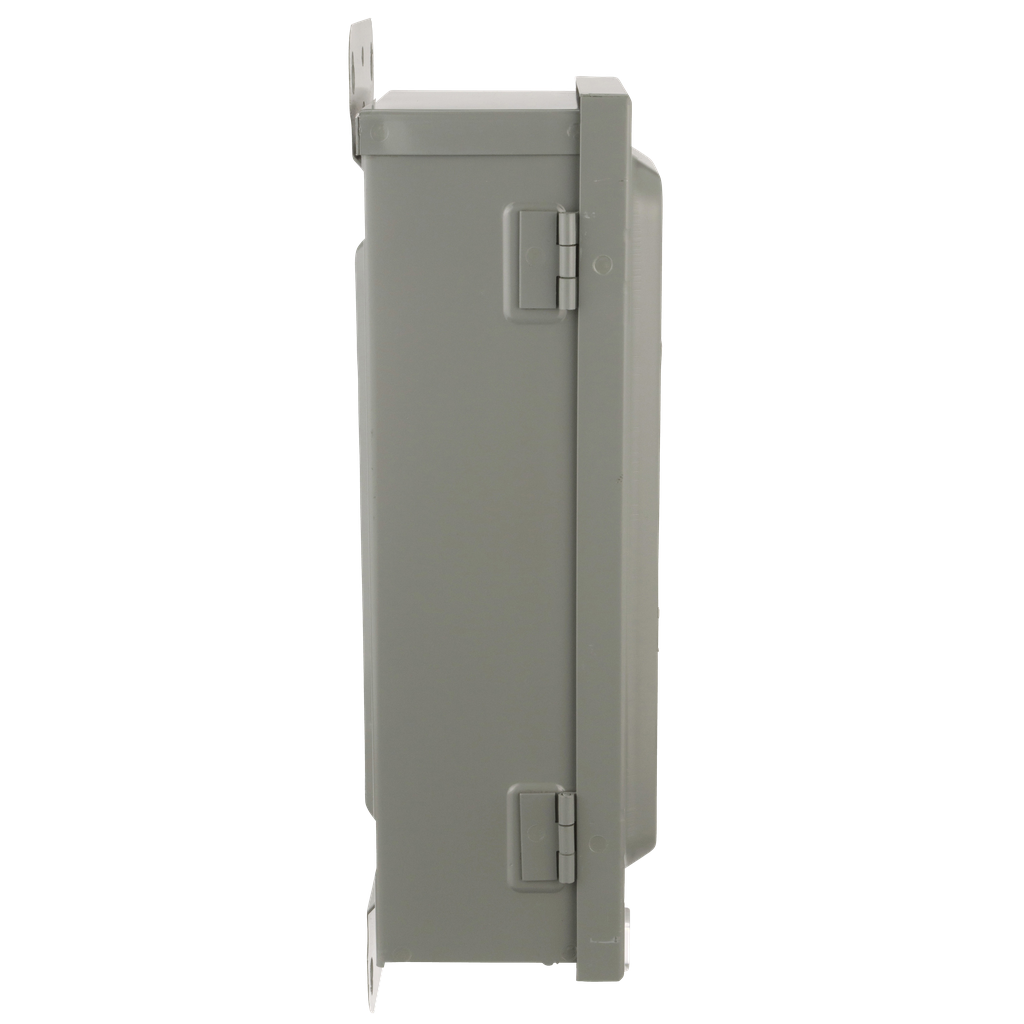

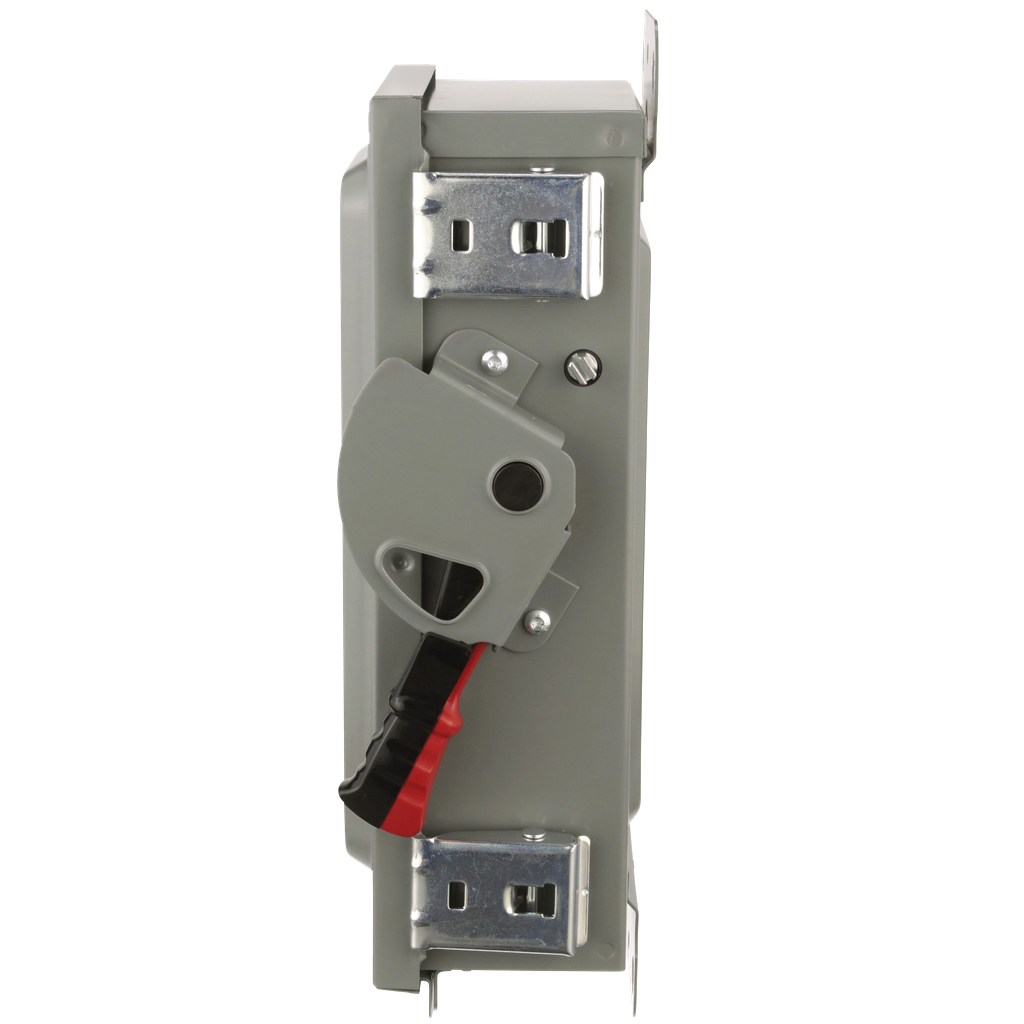

Square D H222AWK 240 VAC 60 Amp 2-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch

Manufacturer: Square-D / Schneider | Catalog # H222AWK | Cooper Electric Part # 281569
$647.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This is a Single Throw Safety Switch. This safety switch has a rated current of 60A and is 2 pole. This safety switch has a rated operational voltage of 240 VAC at 200 kA and 250 VDC at 10 kA. With a motor power of 3 hp. This heavy duty disconnect is surface mounted. This product complies with UL listed file E2875 standards. This product has a NEMA 3R/12 degree of protection. and os made of galvannealed steel. Dimensions for this disconnect are 14.6 in (H), 6.63 in (W), 4.96 in (D).

Technical Information

Amperage
60 Amp
Applications
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Conductor Size
12-3 AWG (AL)/14-3 AWG (CU)
Contact Configuration
2
Contact Rating
Y
Current
60 Amp
Disconnect Type
Fusible disconnect NULL
Duty Rating
Heavy duty NULL
Enclosure
12,3R
Enclosure Material
Stainless Steel
Enclosure Rating
NEMA 3R/12 galvannealed steel
Fuse Type
H Or K,R Or J
Line Rated Current
60 A
Mounting Type
Surface
NEMA Size
12,3R
Net Weight
5 kg
Number of Phases
3 Phase
Number of Poles
2 Pole
Short Circuit Current
10 kA
Size
14.6 IN,4.96 IN,6.63 IN
TC Connection
AWG 14...AWG 3 COPPER-AWG 12...AWG 3 ALUMINIUM,LUGS
Type
SAFETY SWITCH
Voltage
240 Volt
Wattage
12 3R
Wire Size
AWG 14...AWG 3 copper;AWG 12...AWG 3 aluminium

Manufacturer Information

Brand
Square D
Sub Brand
HEAVY DUTY

General Product Info

12-Digit UPC
785901477822
Environmental Conditions
RAINPROOF, SLEET/ICE PROOF AND DUST TIGHT (INDOOR/OUTDOOR)
GTiN
00785901477822
Product UPC
78590147782
Weight
11.02 lb

Dimensions

Depth
4.96 Inch
Height
14.6 Inch
Warranty Length
18 mth
Width
6.63 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL Listed File E2875
Country of Origin
USA
