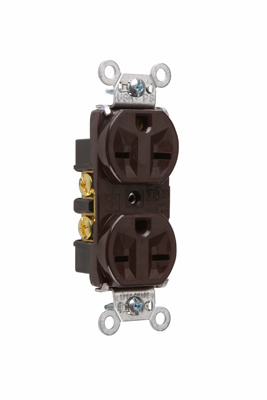

Product image for Pass & Seymour 5662 Heavy-Duty Spec Grade Duplex Receptacle, Back & Side Wire, 15A 250V - Brown
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour 5662 Heavy-Duty Spec Grade Duplex Receptacle, Back & Side Wire, 15A 250V - Brown

Manufacturer: Pass & Seymour / Legrand | Catalog # 5662 | Cooper Electric Part # 281322
$9.59/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Heavy-Duty Spec Grade Duplex Receptacle Back & Side Wire 15amp 250volt Ivory

Technical Information

Amperage
15 Amp
Applications
Commercial Grade
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Grade
Specification
Material
Nylon
Mounting Type
Wall
NEMA
6-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.322 L x .780 W x 3.281 H In
TC Connection
Back and side wire
Temperature Rating
-40 degrees C to 60 degrees C
Type
Heavy Duty
Voltage
250 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007566208
Color
Brown
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTiN
00785007566208
Product UPC
78500756620
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Heavy-duty, brass strap for added strength and ground conductivity.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Strap tabs wrap around face to prevent strap from separating from face and back body.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • High strength nylon face.
  • Internal screw-pressure-plate back and side wired to accept #14 and #10 AWG stranded or solid copper or copper-clad conductors.
  • Eight back wire holes.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
  • Federal Spec Listed
