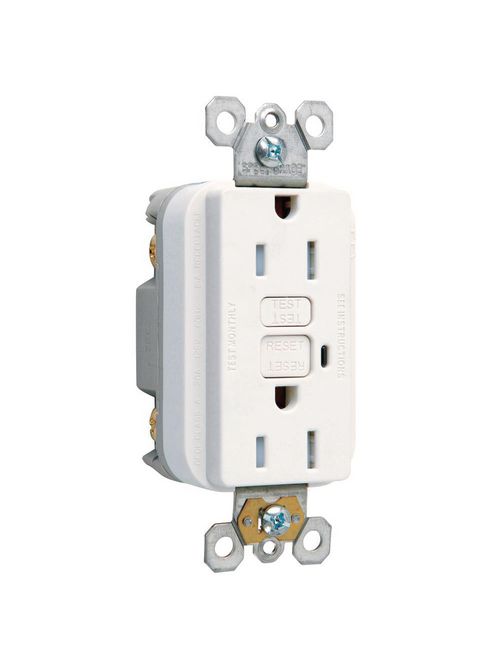

Product image for Pass & Seymour 1595-TRSW GFCI Tamper-Resistant Auto Ground Receptacle, 10kA SCCR,15A 125VAC - White
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour 1595-TRSW GFCI Tamper-Resistant Auto Ground Receptacle, 10kA SCCR,15A 125VAC - White

Manufacturer: Pass & Seymour / Legrand | Catalog # 1595-TRSW | Cooper Electric Part # 281068
$36.65/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. Our spec-grade GFCI are the most durable GFCI available. Also features patented SafeLock™ protection.if critical components are damaged and ground fault protection is lost, power to the receptacle is disconnected.

Technical Information

Amperage
15 Amp
Grade
Specification
NEMA
5-15R
Style
Decorator
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
adorne

General Product Info

12-Digit UPC
785007239942
Color
White
GTiN
00785007239942
Product Series
TradeMaster
Product UPC
78500723994

Dimensions

Depth
1.13 Inch
Height
4.2 Inch
Length
4.2 Inch
Width
1.72 in
Features & Benefits
  • High-impact-resistant thermoplastic construction.
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • 10kA short circuit rating.
  • Ground screw has a back wire clamp for easy installation.
  • Supplied with matching TP26 nylon wall plate.
  • Trip indicator light (red LED).
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • Side or internal screw-pressure-plate back wire with #10 #14 AWG solid or stranded copper wire.
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
  • 1/4\" thinner than competitors' GFCIs; leaves more room for wires in the box.
  • Dual-direction test and reset buttons.
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
  • Button colors match the device face.
  • Class A rated GFCI.
  • Two back wire holes per terminal.
  • Tri-drive screws.
  • Extra-long strap.
  • FSUL Listed (Federal Specification WC596).
  • For covering patents, see www.legrand.us/patents.
  • Meets 2008 National Electrical Code® Tamper-Resistant requirements.
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
Available Options
  • TradeMaster®/Spec Grade Tamper-Resistant 15A Duplex GFCI w/ Auto Ground, Ivory
  • TradeMaster®/Spec Grade Tamper-Resistant 15A Duplex GFCI w/ Auto Ground, Light Almond
