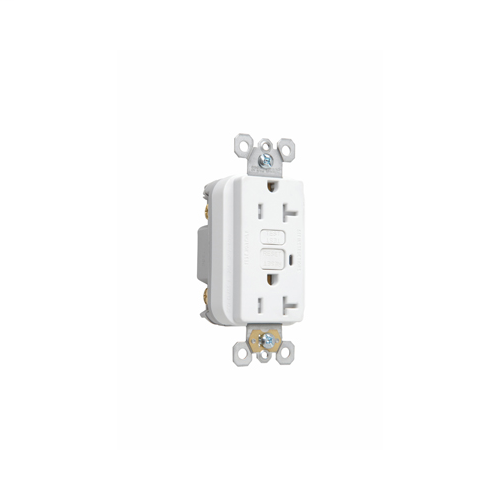

Product image for Pass & Seymour 2095-TRSW GFCI Tamper-Resistant Auto GroundReceptacle, 10kA SCCR,20A 125VAC - White
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour 2095-TRSW GFCI Tamper-Resistant Auto GroundReceptacle, 10kA SCCR,20A 125VAC - White

Manufacturer: Pass & Seymour / Legrand | Catalog # 2095-TRSW | Cooper Electric Part # 280799
$42.60/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. With high-impact-resistant, thermoplastic construction, our spec-grade GFCI are the most durable GFCI available. Also features patented SafeLock™ Protection.if critical components are damaged and ground fault protection is lost, power to the receptacle is disconnected.

Technical Information

Amperage
20 Amp
Grade
Specification
NEMA
5-20R
Style
Decorator
Type
Duplex
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007239928
Color
White
GTiN
00785007239928
Product UPC
78500723992

Dimensions

Depth
1.13 Inch
Height
4.2 Inch
Width
1.72 in
Features & Benefits
  • Zinc-plated steel mounting strap.
  • FSUL Listed (Federal Specification WC596).
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • Dual-direction test and reset buttons.
  • Nightlight uses cooler LED illumination.
  • Energy-efficient LED has average 20-year life expectancy, eliminating bulb replacement.
  • Trip indicator light (red LED).
  • Class A rated GFCI.
  • Sealed nightlight with high impact-resistant Lexan® lens prevents tampering.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
  • 10kA short circuit rating.
  • Photocell turns nightlight ON in dark, OFF in daylight. SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • Button colors match the device face.
  • For covering patents, see www.legrand.us/patents.
  • Stylish rounded corners match Signature wall plates and devices.
  • Tamper-resistant models have dual mechanical shutter system to help prevent insertion of foreign objects.
  • High-impact-resistant thermoplastic construction.
  • Tri-drive screws.
Available Options
  • Spec Grade Tamper-Resistant 20A Duplex GFCI w/ Auto Ground, Light Almond
  • Spec Grade Tamper-Resistant 20A Duplex GFCI w/ Auto Ground, Ivory
