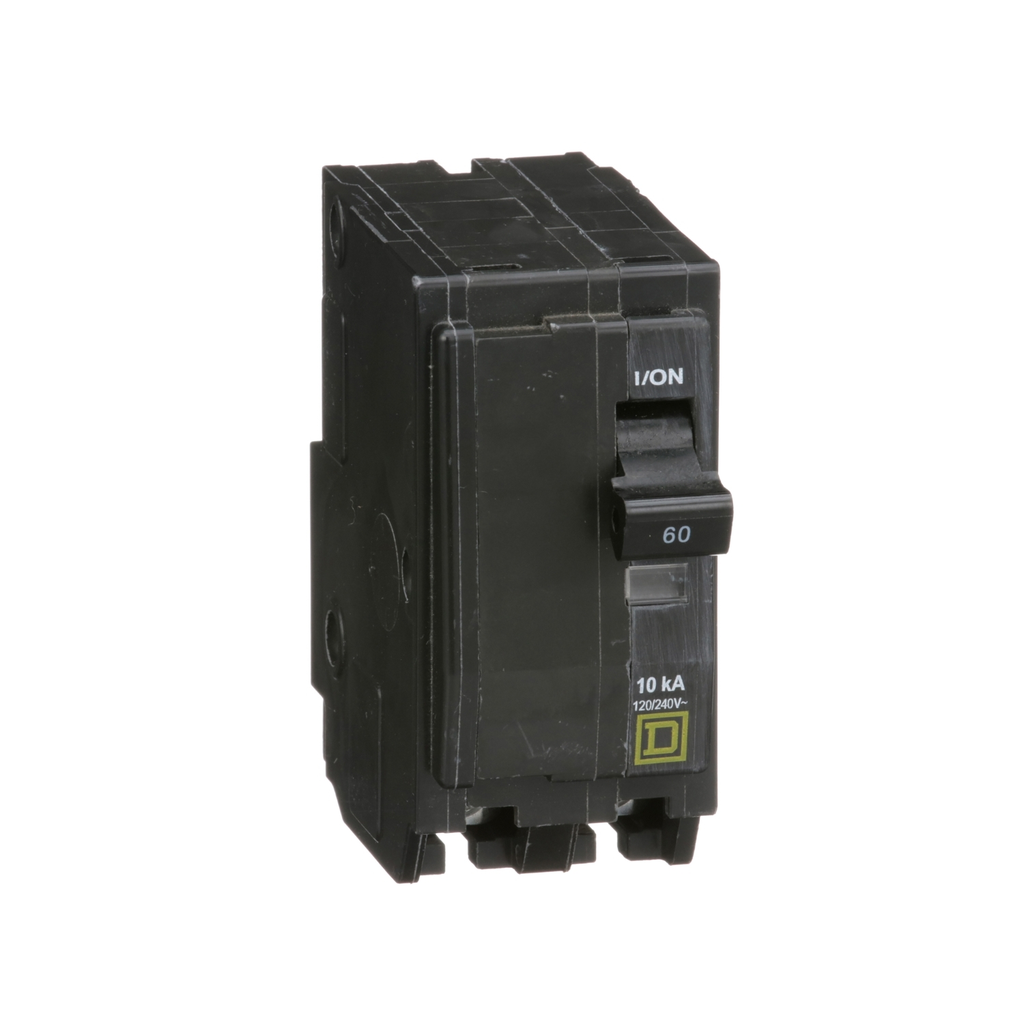

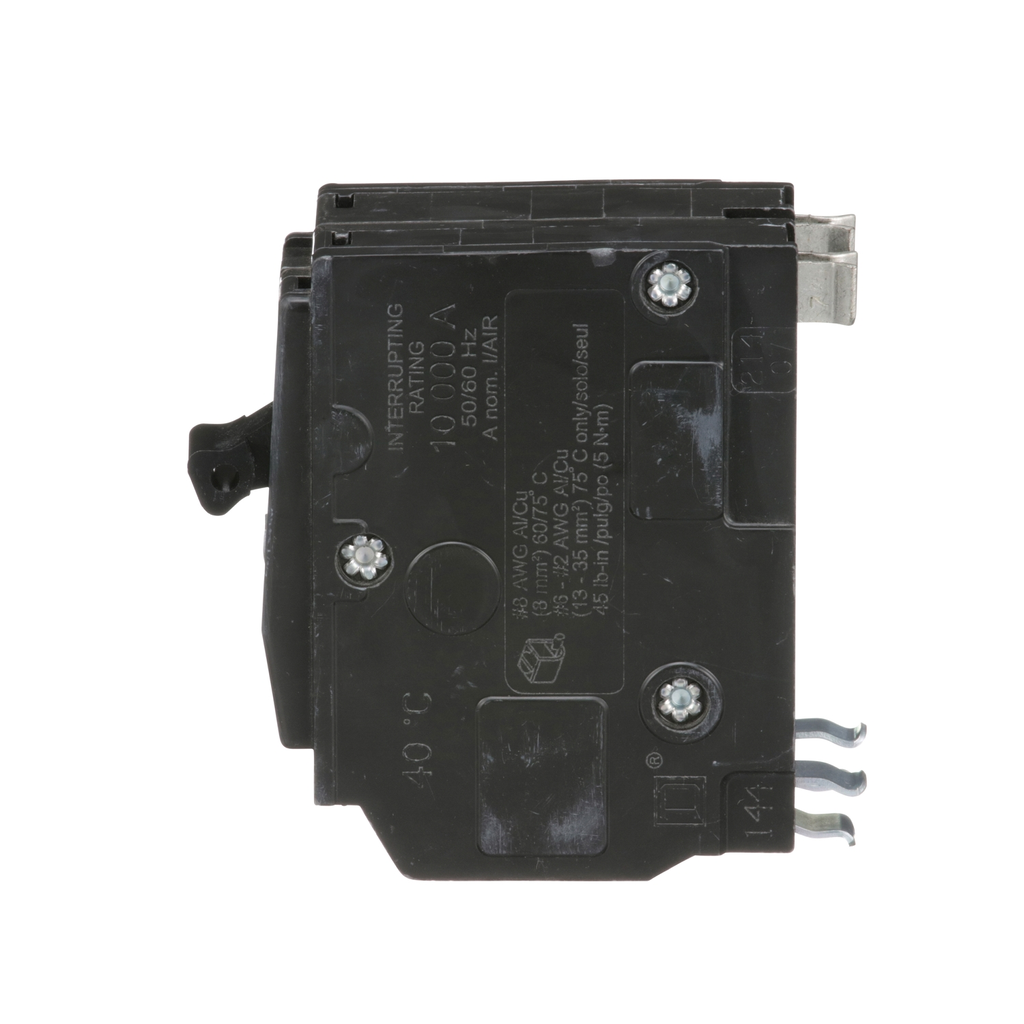

Square D QO260 60A 120/240v 2Pole Miniature Circuit Breaker, Plug-In

Manufacturer: Square-D / Schneider | Catalog # QO260 | Cooper Electric Part # 28070
$67.00/ea
ea
Log in or register to view your price, purchase history, and more!
1 2 3
Plug-In Neutral Pigtail Neutral
5 available

For Pick Up

at Ocean Opens Monday 7:00am ET
236 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO miniature breaker is rated as 60 A, 120/240 V, and 2 pole. This unit provides 10 kA breaking capacity and plug in mounting. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches, is also available QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Technical Information

Amperage
60 Amp
Applications
HACR rated
Circuit Breaker Type
Standard
Conductor Size
8-2 AWG
Current
60 Amp
Interrupt Rating
5, 10 kAIC
Line Rated Current
60 A
Mounting Type
Plug-in
Net Weight
0.295 kg
Number of Poles
2 Pole
Operating Temperature
40 Adegrees C
Short Circuit Current
10 kA
TC Connection
Box lugs
Type
Miniature circuit-breaker
Voltage
120 Volt
Wire Size
AWG 8...AWG 2 copper or aluminium

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901400561
GTiN
00785901400561
Product UPC
78590140056
Weight
0.295 kg

Dimensions

Depth
2.91 in
Height
3.11 in
Length
2.91 Inch
Warranty Length
18 mth
Width
1.5 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.0000736476
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.1 kg CO2 eq.
  • 0.0538980366
Ue Rated Operational Voltage
  • 120/240 V AC
  • 120 V AC
Related Products
  • EZM113125
  • EZM114125
  • EZM114125X
  • EZM115125
  • EZM115125X
  • EZM313125
  • EZM314125
  • EZM314125X
  • EZM315125
  • EZM316125X
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 2 kg CO2 eq.
  • 1.7227871686
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 17 kg CO2 eq.
  • 17.3042434783
Carbon Footprint Of The Distribution Phase A4
  • 0.0380406258
  • 0 kg CO2 eq.
AWG Gauge
  • AWG 8...AWG 2 copper or aluminium
Product Certifications
  • UL Listed
  • CSA
