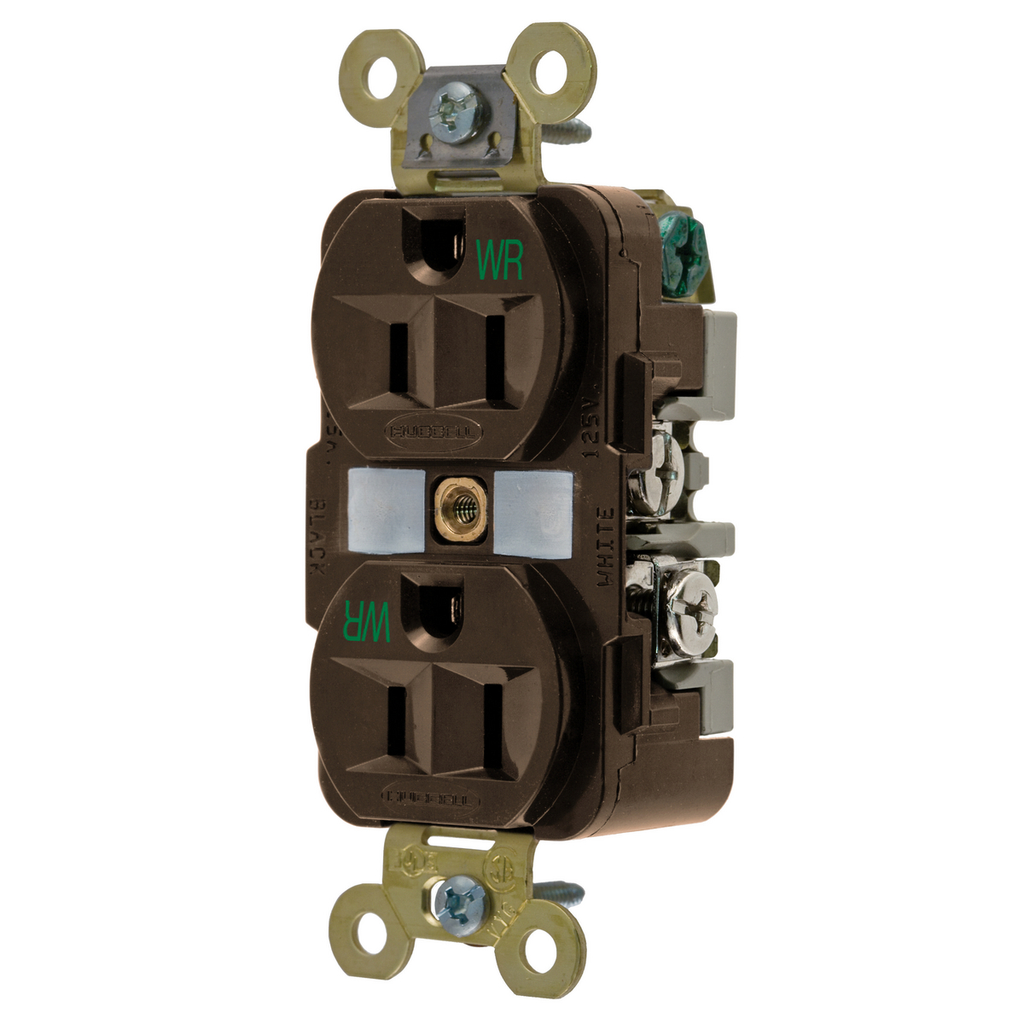

Product image for Hubbell HBL5262WR WR Receptacle, DUP, SB, HD SPEC, 15A 125V, BR
Image thumbnail 0
Image thumbnail 1
Email

Hubbell HBL5262WR WR Receptacle, DUP, SB, HD SPEC, 15A 125V, BR

Manufacturer: Hubbell Wiring Device | Catalog # HBL5262WR | Cooper Electric Part # 280064
$72.47/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Weather-Resistant Duplex, Industrial Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Brown, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grounding
Self
Horsepower
0.5 hp
Material
Nylon
Mounting Type
Screw, Recessed/Flush
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Finder Groove Face
TC Connection
Back & Side Wired
Type
Traditional, Extra Heavy Duty
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 A

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585320496
Color
Brown
Environmental Conditions
Weather-Resistant
GTiN
00783585320496
Product Series
Extra Heavy Duty
Product UPC
78358532049
Weight
0.25 lb

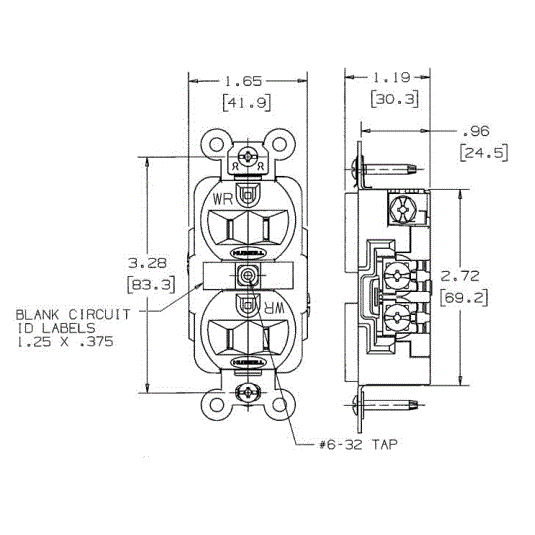

Dimensions

Height
1.19 Inch
Length
3.28 Inch
Width
1.65 in

Certifications and Compliance

Country of Origin
USA
Features
  • Weather-resistance complies with national electrical code requirements
  • Finder Groove Face
  • One-piece brass integral ground strap
  • Deep body design with circuit ID face
  • Weather Resistant- Self Grounding
