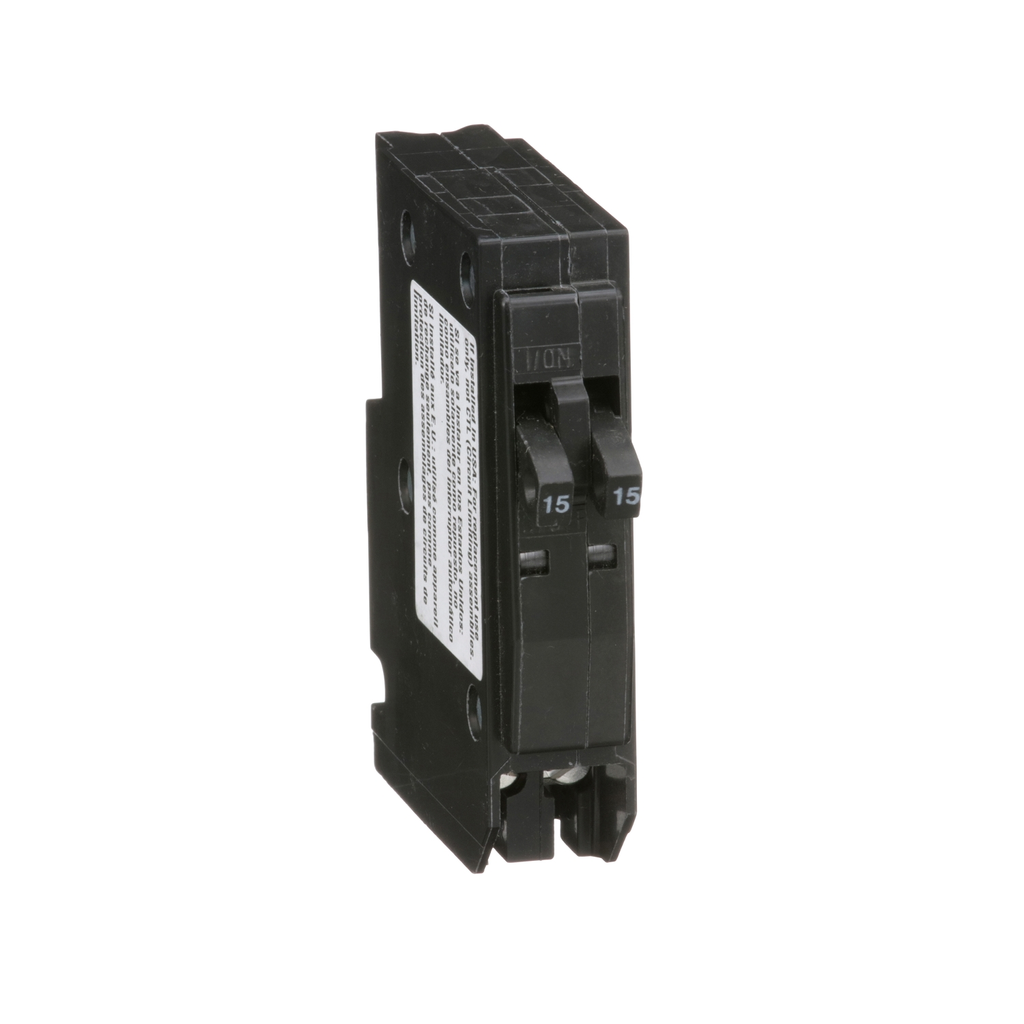

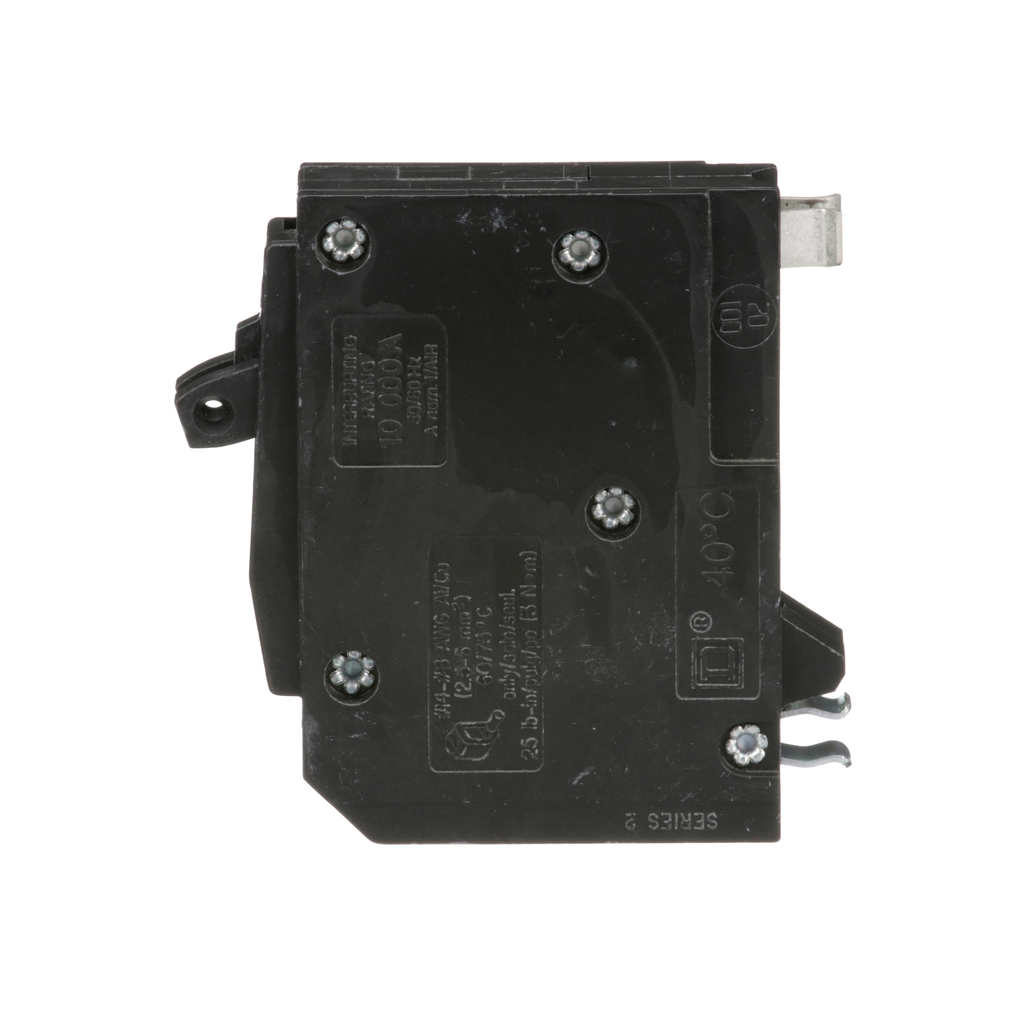

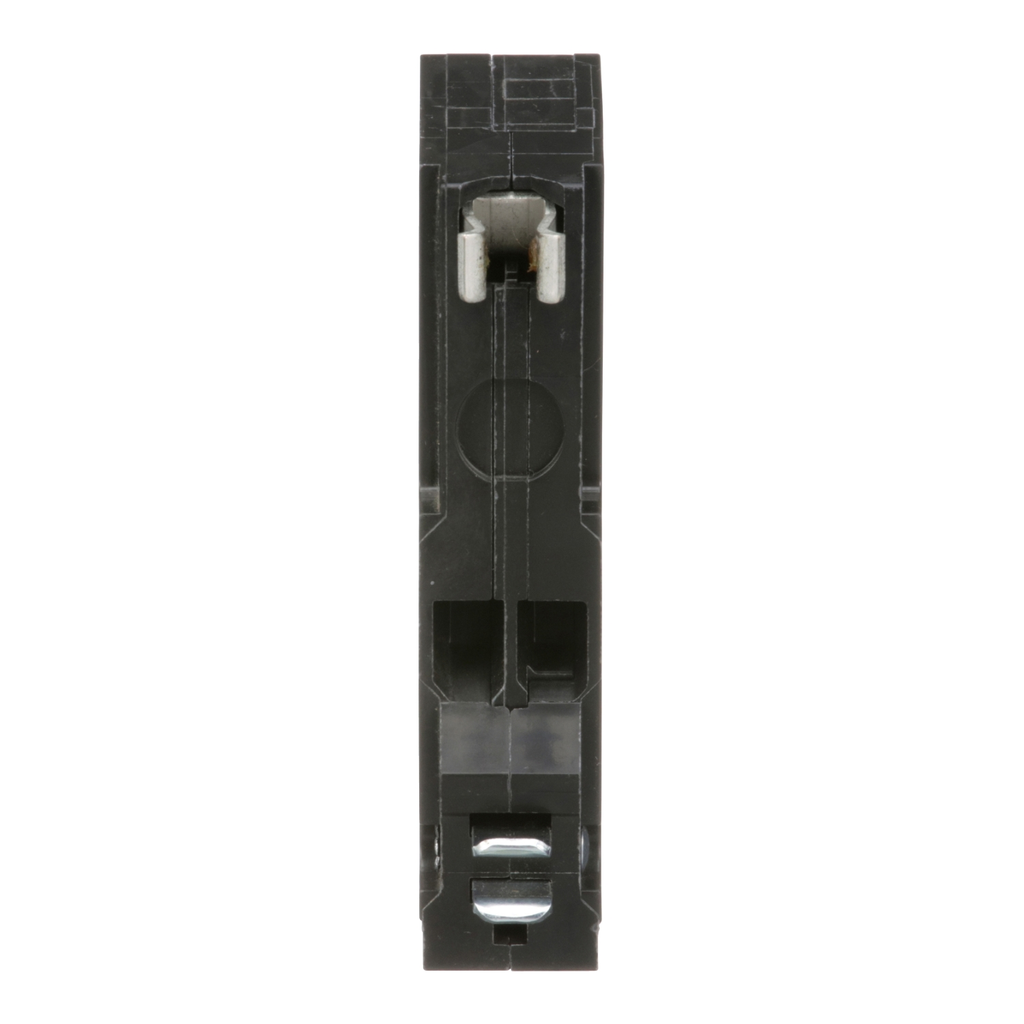

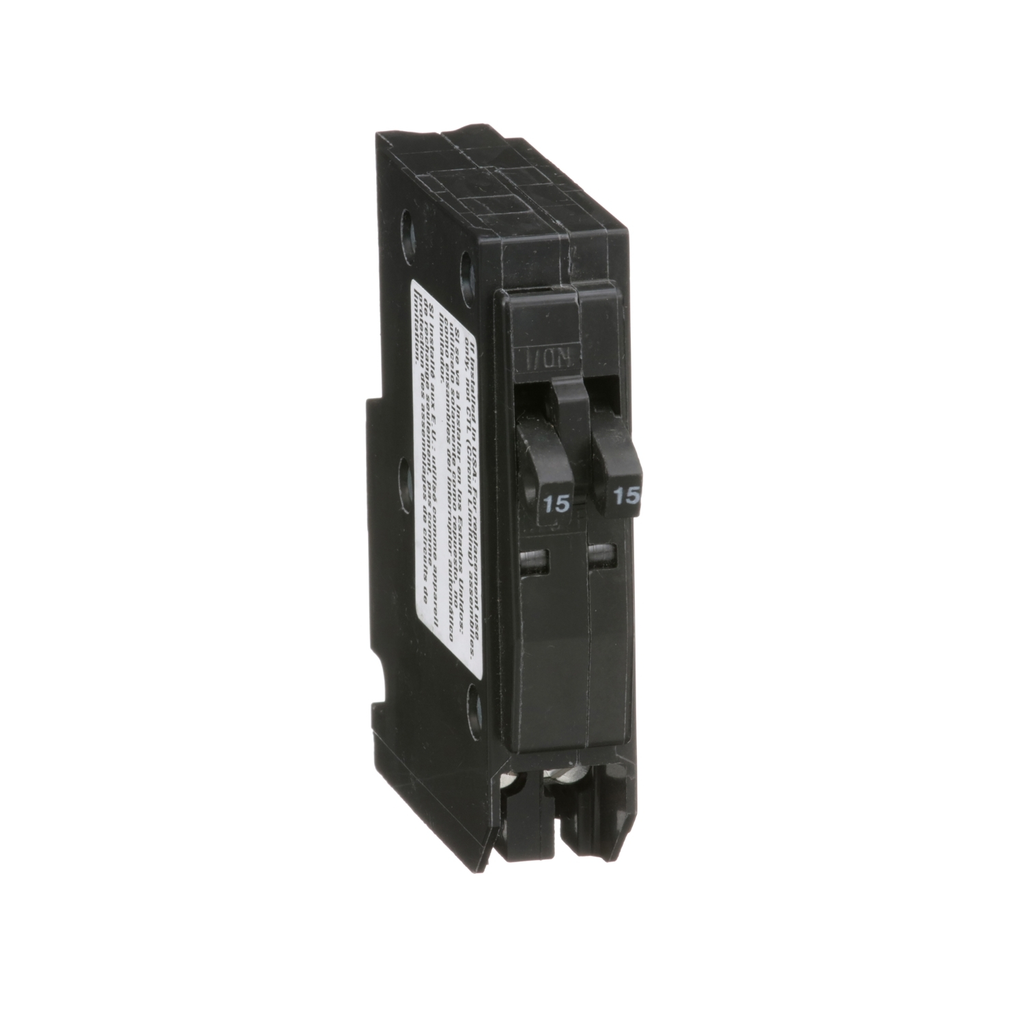

Square D QO1515 Tandem Circuit Breaker 15A/15A 120/240V 1Ph , Plug-On

Manufacturer: Square-D / Schneider | Catalog # QO1515 | Cooper Electric Part # 27949
$73.00/ea
ea
Log in or register to view your price, purchase history, and more!
1 2 3
Plug-In Neutral Pigtail Neutral
11 available

For Pick Up

at Ocean Opens Monday 7:00am ET
150 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
Square D™ QO™ and QOB Miniature Circuit Breakers, QO1515, come in plug-in mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Equipped with tandem HACR rated circuit breaker. UL listed.

Technical Information

Amperage
15 Amp
Applications
HACR RATED
Circuit Breaker Type
Tandem
Conductor Size
14-8 AWG
Current
15 Amp
Interrupt Rating
10 kAIC
Line Rated Current
15 A
Mounting Type
Plug-in
Net Weight
0.127 kg
Number of Poles
1 Pole
Operating Temperature
40 Adegrees C
Range
QO NULL
Short Circuit Current
10 kA
TC Connection
PRESSURE PLATE #14 TO #8 AWG(AL/CU)
Type
MINIATURE CIRCUIT BREAKER
Voltage
120/240 Volt
Wire Size
AWG 14...AWG 8 copper or aluminium

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901400905
GTiN
00785901400905
Product UPC
78590140090
Weight
0.127 kg

Dimensions

Depth
74 mm
Height
82 mm
Length
2.91 Inch
Warranty Length
18 mth
Width
19 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
Mexico
Compatible Products
  • QO1LO
  • QO24L70RB
  • QO2DTI
  • QO48M60DSGP
  • QOHPL
  • QOTHT
  • HLO1
  • QO1816M200FTRB
  • QO1PA
  • QO2DTIM
  • QO1PAF
