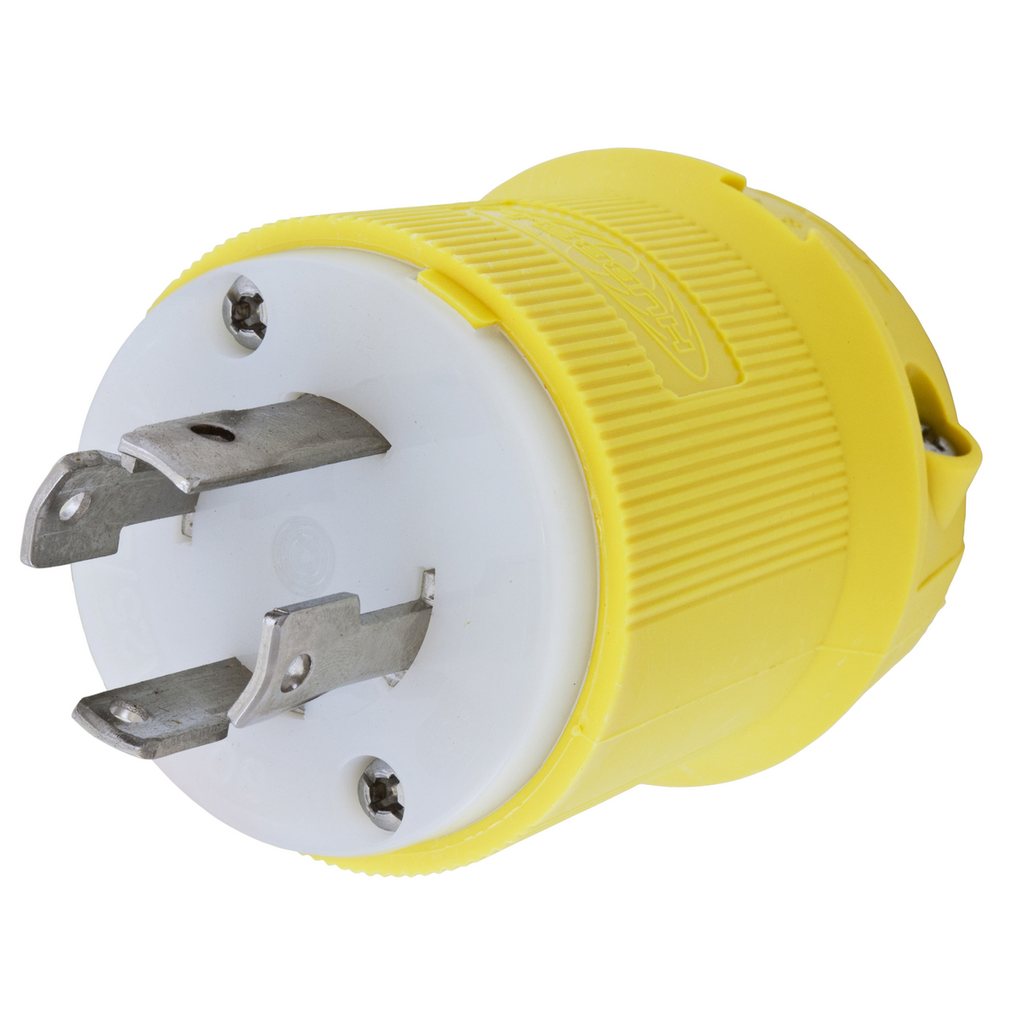

Product image for Hubbell HBL27CM11 30 Amp 125/250 VAC 3-Pole 4-Wire NEMA L14-30P Yellow Locking Plug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL27CM11 30 Amp 125/250 VAC 3-Pole 4-Wire NEMA L14-30P Yellow Locking Plug

Manufacturer: Hubbell Wiring Device | Catalog # HBL27CM11 | Cooper Electric Part # 27858
$79.76/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Marine Grade, Male Insulgrip® Plug, 30A 125/250V AC, 3-Pole 4-Wire Grounding, NEMA L14-30P, Screw Terminal, Corrosion resistant, Yellow.

Technical Information

Amperage
30 Amp
Applications
Power Connection
Conductor Size
10-8 AWG
Cord Type
Portable
Current
30 Amp
Grade
Marine
Horsepower
2 hp
Material
Nylon
Mounting Type
Cord

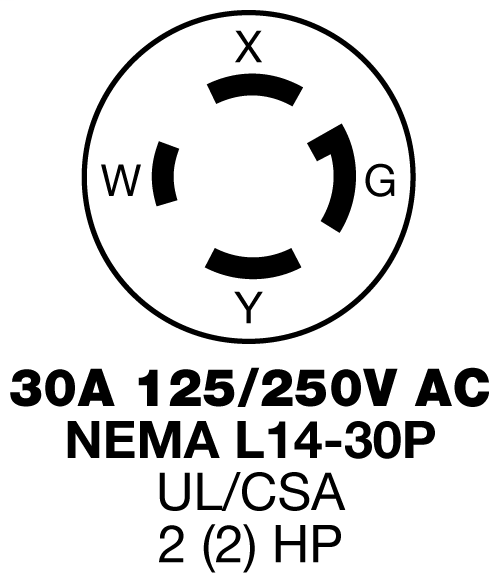

NEMA
L14-30P
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
2.33 in x 2.33 in x 2.75 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Type
Standard Sized, Marine Grade
Voltage
125/250 Volt
Wattage
7500 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585039558
Color
Yellow
Environmental Conditions
Corrosion Resistant
GTiN
00783585039558
Product UPC
78358503955
Weight
0.30 lb

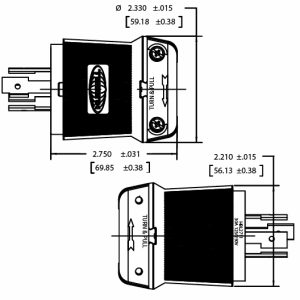

Dimensions

Height
2-3/4 Inch
Length
2.33 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Nickel plated blades and stainless steel screws provide maximum corrosion resistance.
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Corrosion Resistant
