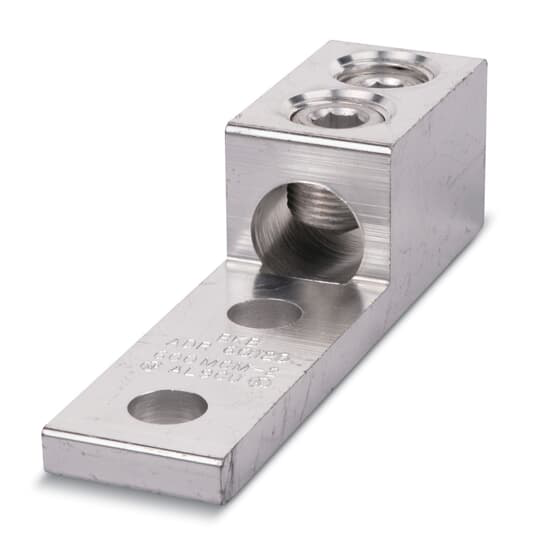

Blackburn ADR80-12DS Extruded Aluminum Lug

Manufacturer: Blackburn / Thomas & Betts | Catalog # ADR80-12DS | Cooper Electric Part # 275518
$7,010.25/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Type ADR-ALCUL Single-Conductor, Switchgear Mount for Conductor Range Max 800 kcmil, Min 300 kcmil

Technical Information

Material
Aluminum
Number of Conductors
1
Standard
UL E9809
Type
Dual-Rated Mechanical Connector

Manufacturer Information

Brand
Blackburn

General Product Info

12-Digit UPC
783786610402
Finish
Tin Plated
GTiN
00783786610402
Product UPC
78378661040

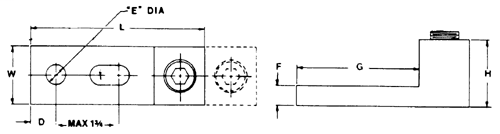

Dimensions

Height
1-7/8 Inch
Length
6-3/16 Inch
Width
1-5/8 in
Notes
  • Connectors accomodating conductors 600 kcmil and larger have double rows of set screws (D suffix).
  • NEMA spacing 1 3/4 inch centers.
Certifications
  • CSA
  • UL
Features
  • Easy Installation - no special tools required.
