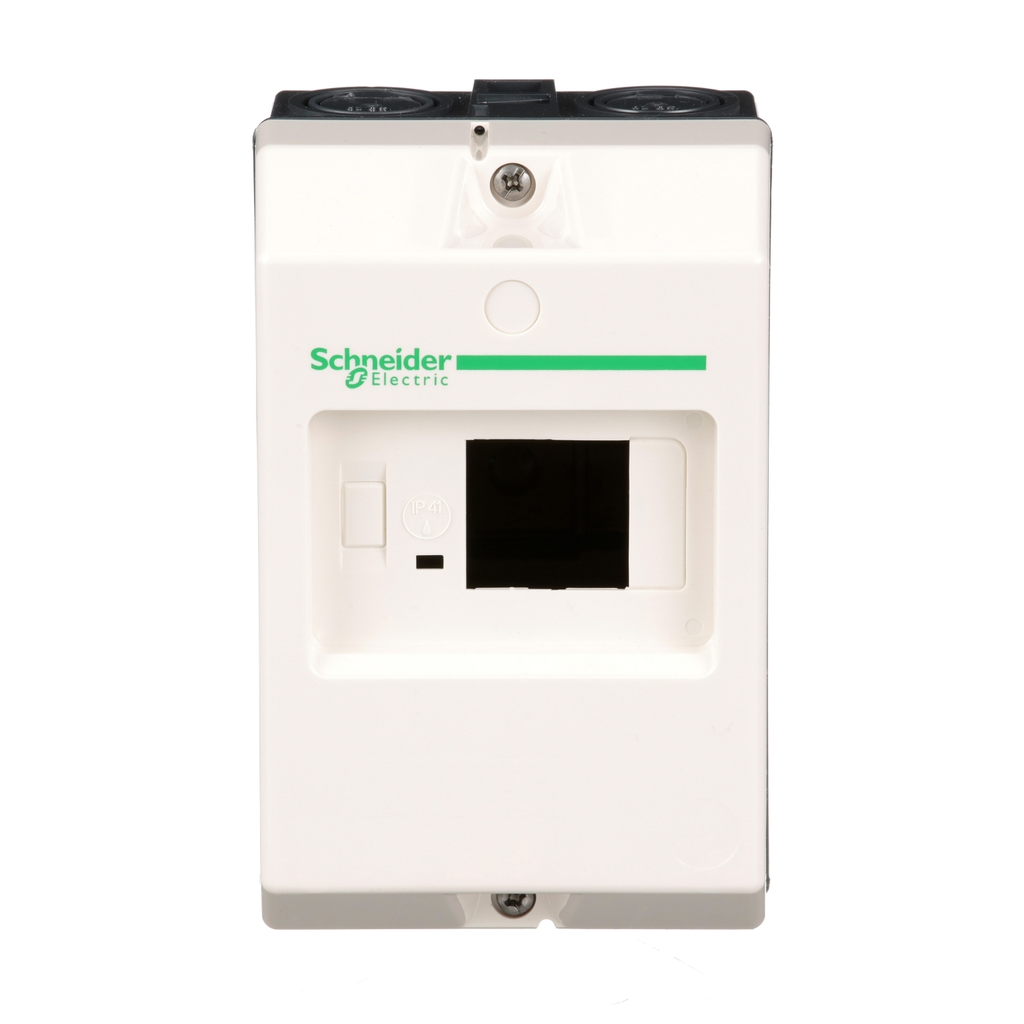

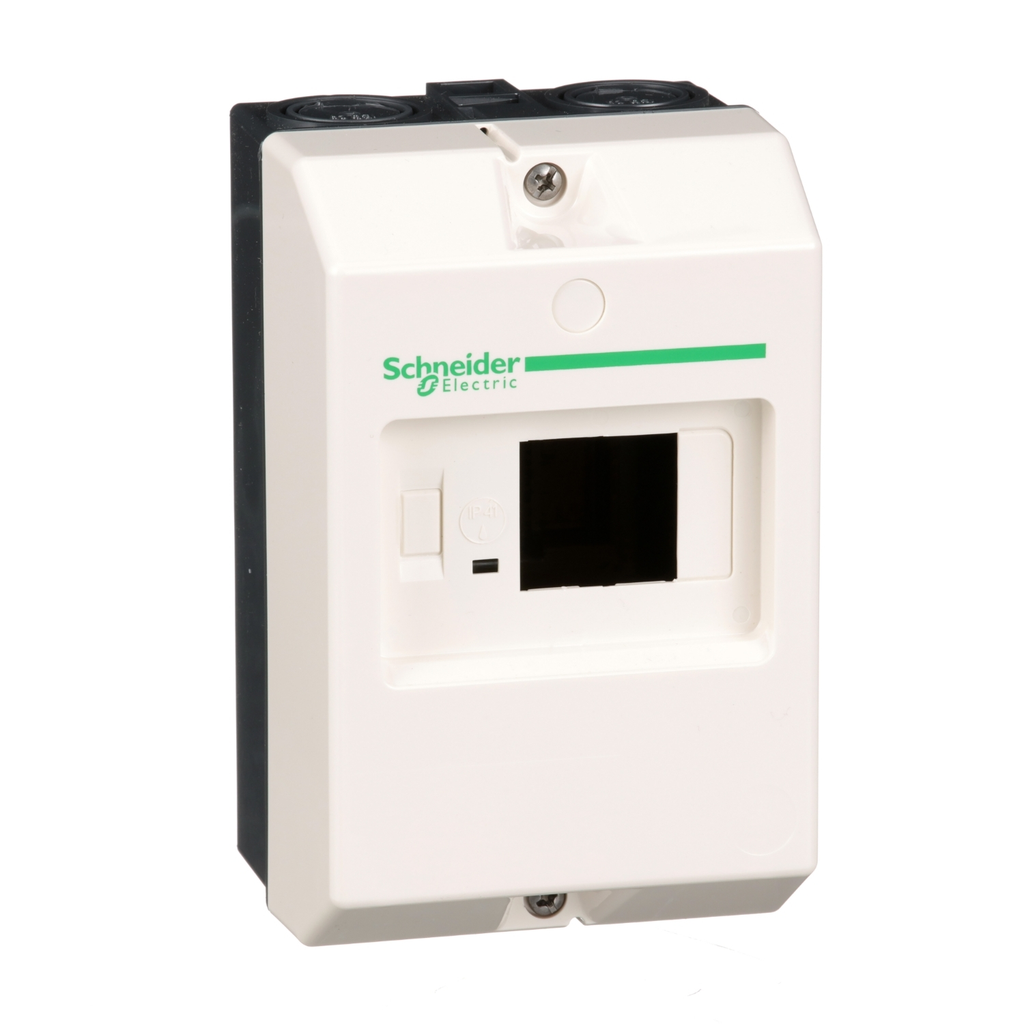

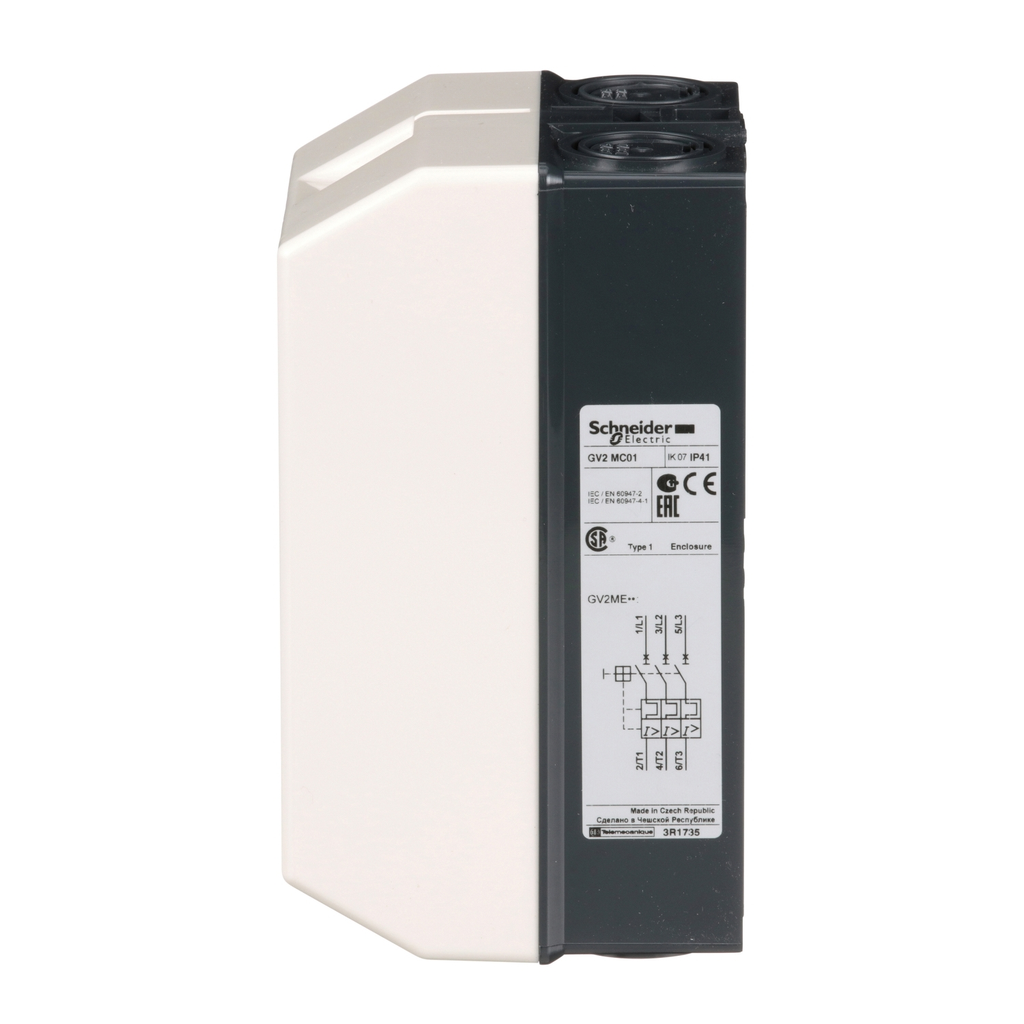

Square D GV2MC01 NEMA 1 Surface Mount Manual Starter Enclosure

Manufacturer: Square-D / Schneider | Catalog # GV2MC01 | Cooper Electric Part # 275180
$86.90/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Friday 8:00am ET
2 available

For Delivery

Order by 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP41 protection. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).

Technical Information

Applications
GV2ME
Enclosure
IP41
Enclosure Type
Surface mounting
Operating Temperature
-5C TO 55C
Range
TeSys
Size
3.31 in
TC Connection
CONDUIT CUTOUTS
Type
GV2MC;Enclosure

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS

General Product Info

12-Digit UPC
389110213648
Environmental Conditions
STANDARD ENVIRONMENT
GTiN
03389110213645
Product UPC
78590188272

Dimensions

Depth
84 mm
Height
147 mm
Warranty Length
18 mth
Width
93 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Country of Origin
Czechia
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
