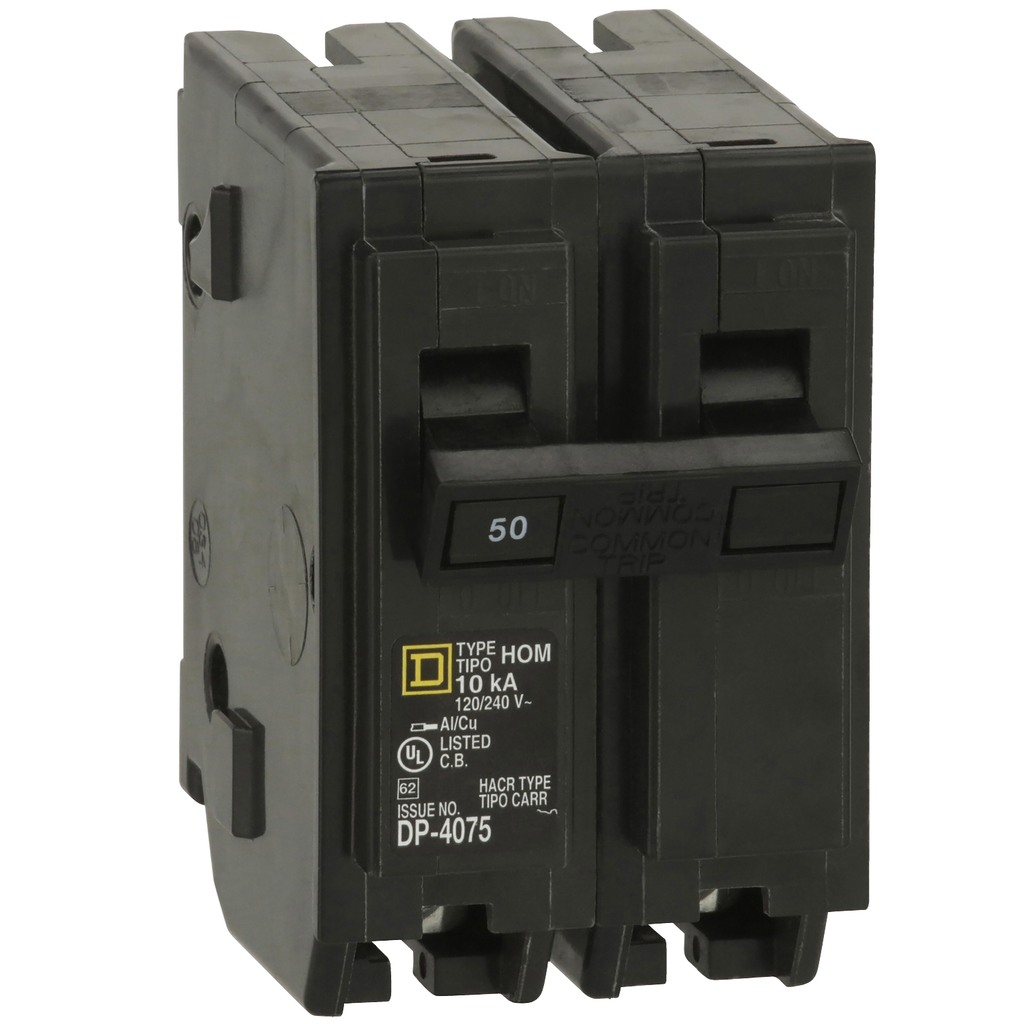

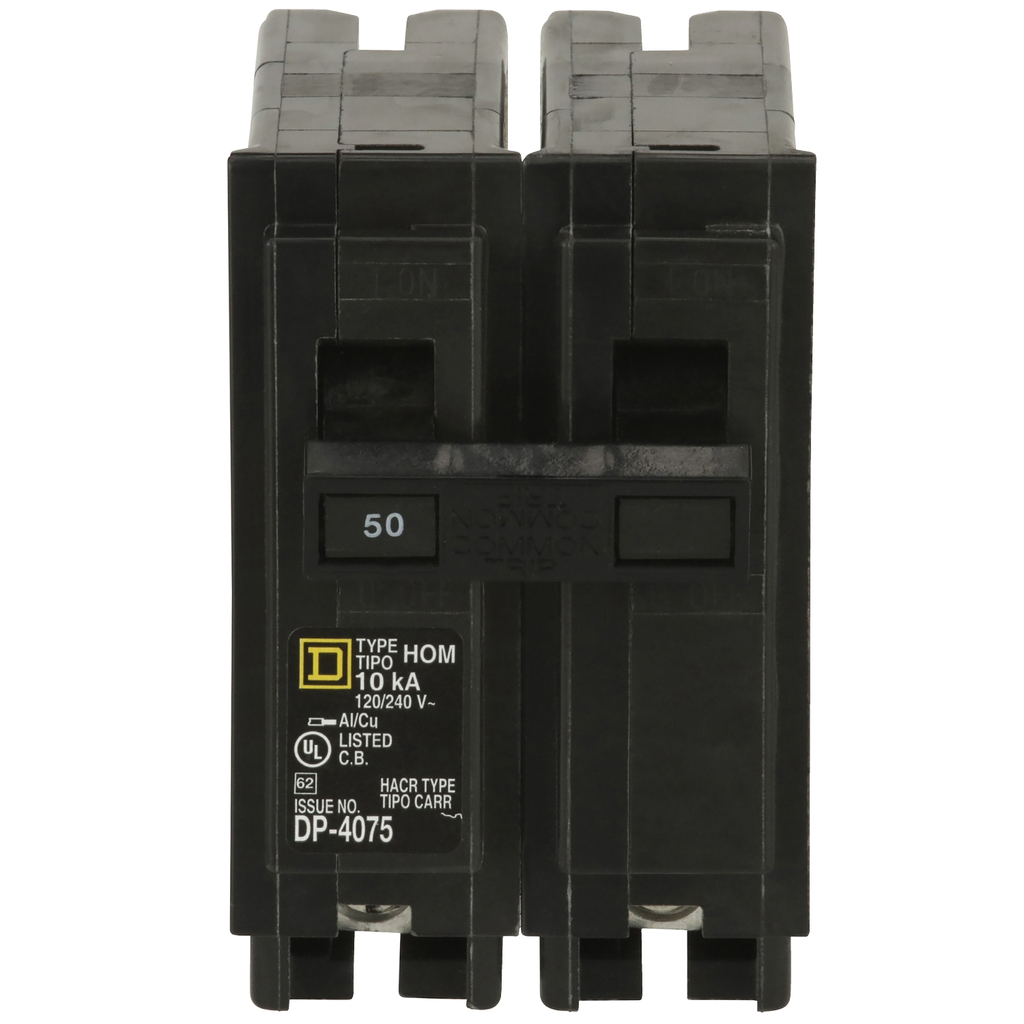

Square D HOM250 120/240 Volt 50 Amp Miniature Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # HOM250 | Cooper Electric Part # 27510
$60.00 /ea
ea
Log in or register to view your price, purchase history, and more!
1 2 4
Plug-In Neutral Pigtail Neutral
12 available

For Pick Up

at Ocean opens friday 7:00am et
1,143 available

For Delivery

Order by 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Brochure Product Catalog Page Product Spec Sheet
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 50A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Technical Information

Amperage
50 Amp
Applications
PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
Circuit Breaker Type
Standard
Conductor Size
8-2 AWG
Current
50 Amp
Interrupt Rating
10 kAIC
Line Rated Current
50 A
Mounting Type
Plug-in
Number of Poles
2 Pole
Number of Spaces
2
Operating Temperature
40 Adegrees C
Range
Homeline NULL
Short Circuit Current
10 kA
Short Circuit Current Ratng
10 kA
TC Connection
SCREW #8-2 AWG(AL/CU)
Type
MINIATURE CIRCUIT BREAKER
Voltage
120/240 Volt
Wire Size
AWG 8...AWG 2 aluminium/copper)1

Manufacturer Information

Brand
Square D
Sub Brand
HOMELINE

General Product Info

12-Digit UPC
785901065326
GTiN
00785901065326
Product UPC
78590106532

Dimensions

Depth
2.98 Inch
Height
3.13 Inch
Length
2.98 Inch
Warranty Length
Lifetime
Width
2 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
Mexico
Features
  • Homeline™ MCBs provide value through their ease in installation, reliability, and superior circuit protection
  • Designed to protect against equipment overloads and short-circuits
  • Easy plug on design with SE Homeline Loadcenters
  • Residential and Commercial circuit protection
  • Product characteristics conformity is certified by the Underwriters Laboratories (UL)
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Accessory Products
  • HOM2HBD
  • HOM2PALA
