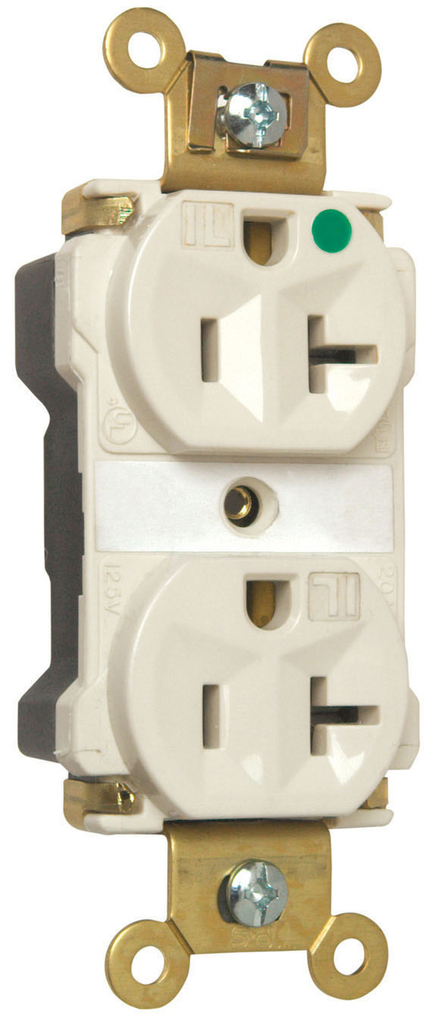

Product image for Pass & Seymour PT8300-ILI PlugTail™ Extra Heavy-Duty Hospital Grade Illuminated Duplex Receptacle, 20A 125V - Ivory
Email

Pass & Seymour PT8300-ILI PlugTail™ Extra Heavy-Duty Hospital Grade Illuminated Duplex Receptacle, 20A 125V - Ivory

Manufacturer: Pass & Seymour / Legrand | Catalog # PT8300ILI | Cooper Electric Part # 274134
$52.11/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
PlugTail® Extra Heavy-Duty Hospital Grade Illuminated Duplex Receptacle 20 A 125 V WhiteFor detailed PlugTail® information, visit our PlugTail® Headquarters.

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
12 AWG
Dielectric Strength
2000 V
Duty Rating
Extra Heavy Duty
Grade
Hospital
Material
Nylon
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.625 L x .866 W x 3.281 H In
Temperature Rating
-40 degrees C
Type
Receptacles
Voltage
125 Volt
Wire Size
12 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007238532
Color
Ivory
GTiN
00785007238532
Product Series
PlugTail
Product UPC
78500723853
UNSPSC
39121406

Dimensions

Depth
0.856 Inch
Height
2-3/4 Inch
Width
1.625 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Molded-in ''IL'' markings on face of product.
  • Efficient, 15.5W power supply for fast charging of mobile phones and tablets
  • Exclusive patented feature, circuit label on face allows permanent circuit identification.
  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Crimped and welded contacts.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Large brass contacts snugly terminate on device blade terminals.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6\"\" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Certifications
  • cULus Listed
