Ocal HUB1/2-G 1/2 Inch Ocal Gray Hub

Manufacturer: Ocal / Thomas & Betts | Catalog # HUB1/2-G | Cooper Electric Part # 274102
$108.88/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

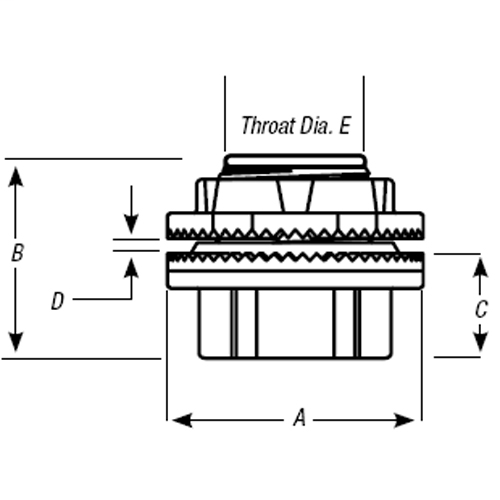

PVC Coated Zinc Hub Connector with Thermoplastic Insulated Throat, Pipe Size 1/2 Inch/16 Metric, Overall Diameter 1.44 Inch/36.58 Millimeters, Maximum Panel Thickness 0.19 Inch/4.83 Millimeters, Throat Diameter 0.59 Inch/14.99 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray

Technical Information

Applications
To Positively Bond Conduit to Box or Enclosure
Material
Zinc
Size
1/2 in
Temperature Rating
105 degrees C
Trade Size
1/2 Inch
Type
Hub Connector

Manufacturer Information

Brand
ABB
Sub Brand
Ocal®

General Product Info

12-Digit UPC
704508388119
Box Quantity
100
Color
Dark Gray
Construction Type
External Thread
Finish
PVC Coated
GTiN
00704508388119
Housing Material
Other
Product UPC
70450838811

Dimensions

Diameter
16 mm
Features
  • Coated with a nominal .002 inch (2 mil) blue urethane on the interior, before PVC Coating is applied.
  • A minimum .040 inch (40 mil) PVC Coating is bonded to the exterior.
  • Innovative sealing ring and groove.
  • Hexagonal body and locknut design.
  • Insulated throat and sharper and deeper teeth.
  • Pressure sealing sleeves to protect the connection.
