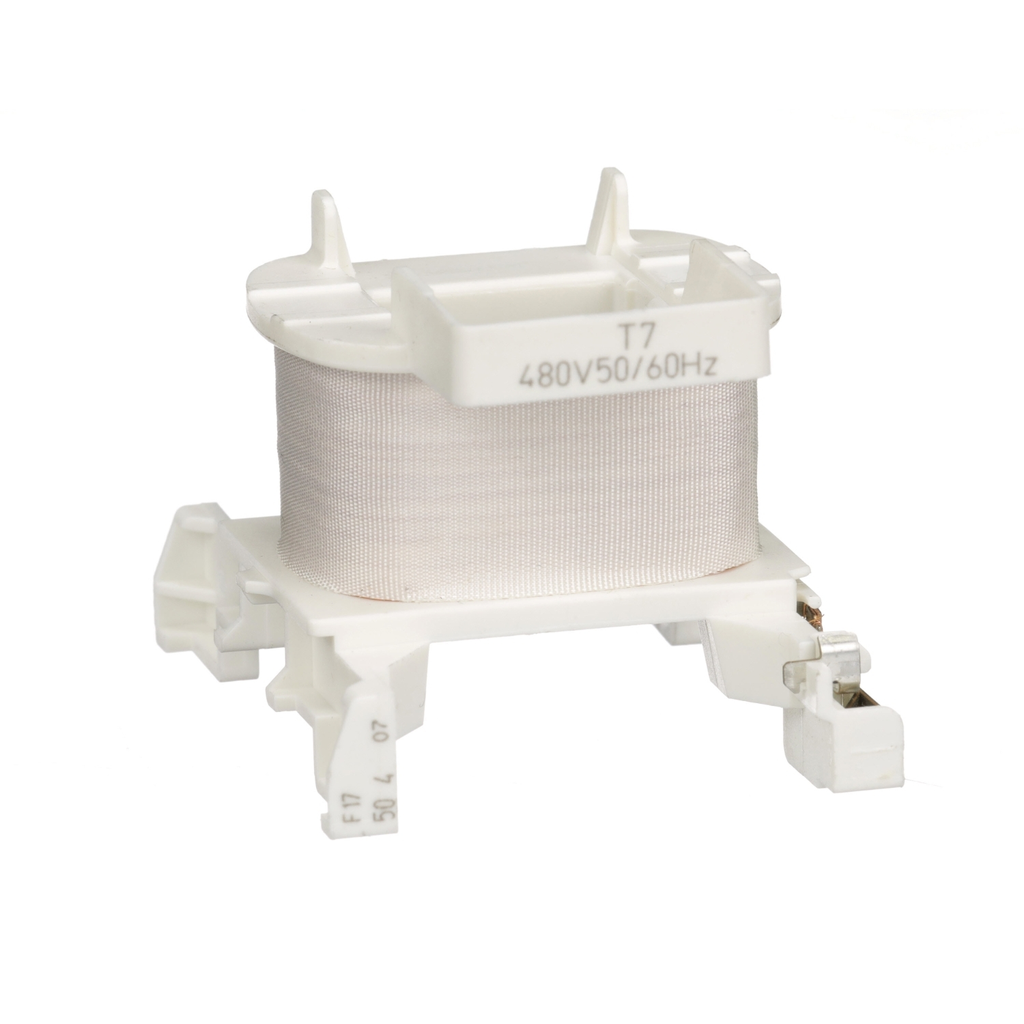

Product image for Square D LXD1T7 480 VAC at 50/60 Hz 70 VA AC Contactor Coil
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Square D LXD1T7 480 VAC at 50/60 Hz 70 VA AC Contactor Coil

Manufacturer: Square-D / Schneider | Catalog # LXD1T7 | Cooper Electric Part # 273871
$32.68 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Catalog Page Product Spec Sheet Product Brochure
TeSys D replacement coils are for replacing the operating coil in a TeSys D contactors with 9 amperes to 38 ampere ratings and Tesys D Relays. This coil has an operating voltage of 480 Vac 50/60 Hz. This coil has an inrush consumption rating of 70 VA and a sealed consumpation rating ofd 7 VA. The 60Hz operating range is 85 to 110% of nomial voltage at 60 degrees C.

Technical Information

Applications
LC1DT20...DT40;CAD;LC1D09...D38
Coil Voltage
480@50/60Hz V
Net Weight
0.07 kg
Operating Cycles
3600 cyc/h 60 C
Operating Temperature
23F..140F (-5C..60C)
Range
TeSys
TC Connection
SCREW CLAMP
Type
Contactor coil

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS

General Product Info

12-Digit UPC
338911046795
GTiN
03389110467956
Product UPC
78590146795
Weight
0.07 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Country of Origin
Indonesia
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Features
  • Spare coil for Deca contactor
  • New modern look & feel of all machines
  • Easier to install
  • Digital customer experience for technical documents
