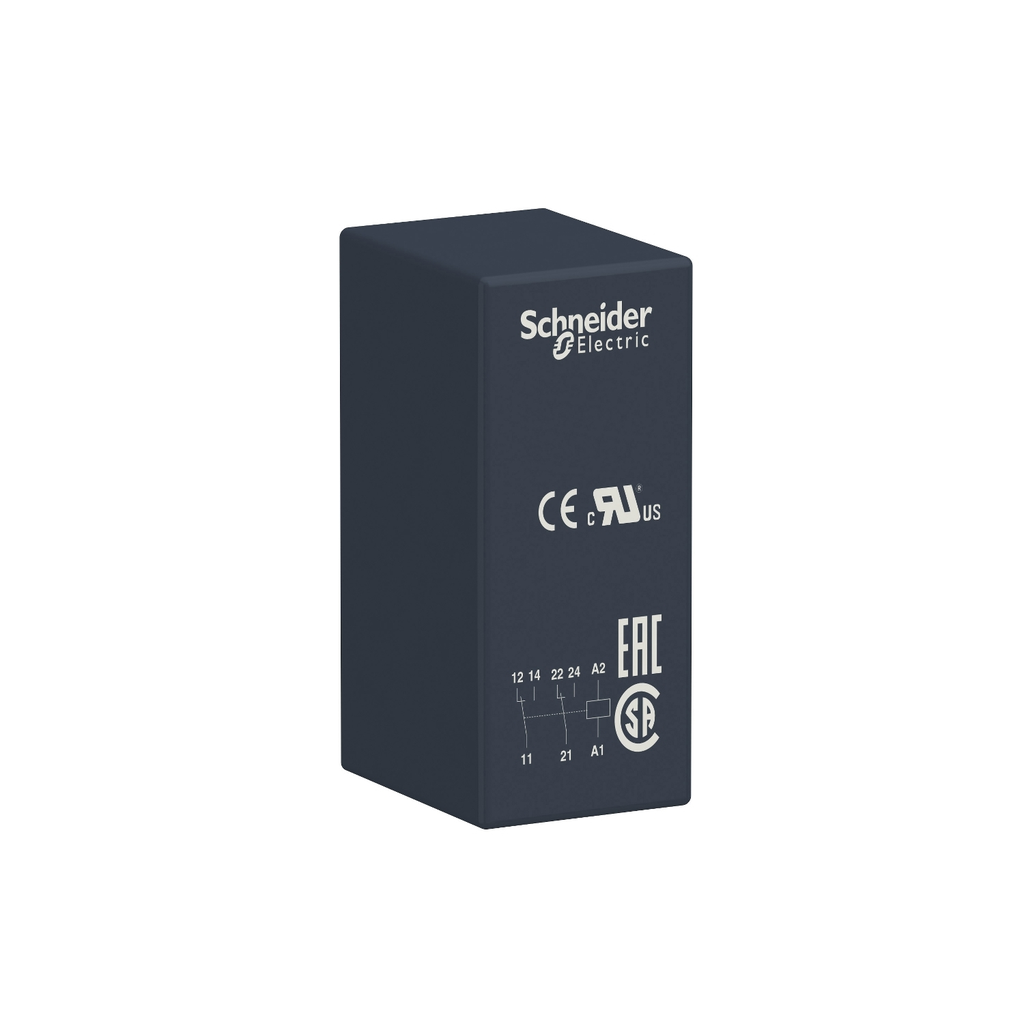

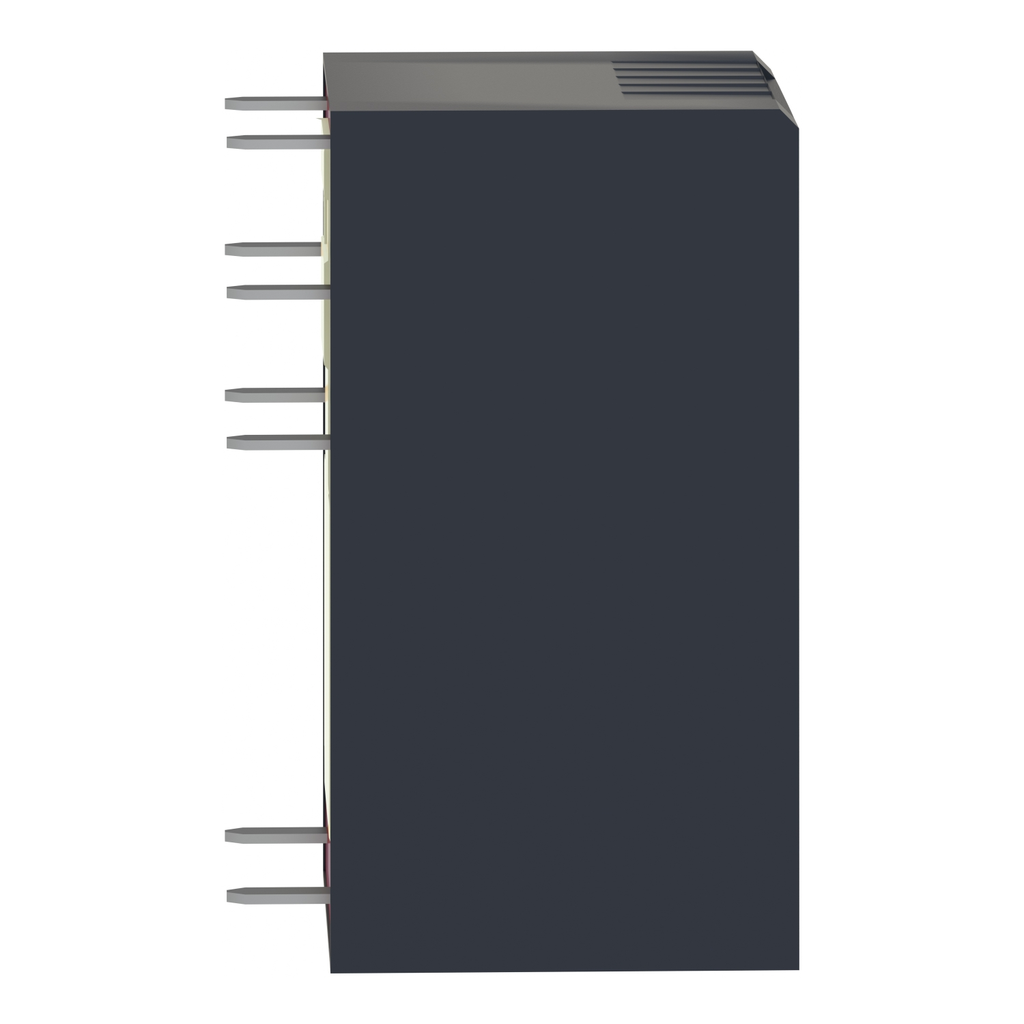

Square D RSB2A080BD 24 VDC 8 Amp DPDT 2CO Silver Alloy Plug-In Interface Relay

Manufacturer: Square-D / Schneider | Catalog # RSB2A080BD | Cooper Electric Part # 273829
$6.04/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
41 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch

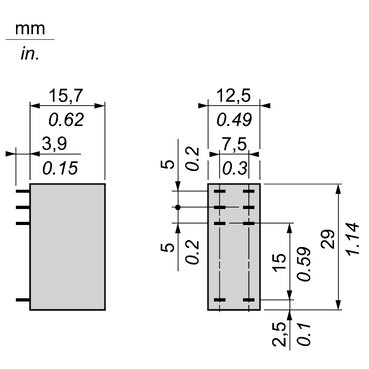

CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony RSB interfacing plug-in relay has a control coil voltage of 24V DC and has 2 changeover contacts double pole double throw with a rating of 8A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
4 Amp AC-1/DC-1) NC IEC-8 Amp AC-1/DC-1) NO IEC,8 Amp 250 V AC-8 Amp 28 V DC
Contact Configuration
2 C/O
Contact Material
Silver Alloy
Control Type
Without push-button
Dielectric Strength
1000 V
Enclosure
IP 40 CONFORMING TO IEC/EN 60529
Line Rated Current
8 A
Net Weight
0.014 kg
Operating Cycles
<= 18000 Cycles/hour No-load,<= 600 Cycles/hour Under Load
Operating Temperature
-40-85 Adegrees C DC)
Resistance
1440 OHM (AC) AT 20 C +/- 10
Standard
CSA C22.2 No 14,IEC 61810-1,UL 508
Storage Temperature
-40-85 degrees C
TC Connection
PRINTED CIRCUIT BOARD (PCB)
Type
Plug-in relay;Flat (PCB type)
Voltage
36 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RSB

General Product Info

12-Digit UPC
338911025233
GTiN
03389110252361
Product UPC
78590161813
Weight
0.014 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Certifications
CSA,EAC,UL
Country of Origin
Austria
IE Rated Operational Current
  • 4 A AC-1/DC-1) NC IEC
  • 8 A AC-1/DC-1) NO IEC
Test Levels
  • level A group mounting
IP Degree Of Protection
  • IP40 conforming to IEC 60529
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Carbon Footprint Of The Installation Phase A5
  • 0 kg CO2 eq.
  • 0.00010086
Load Current
  • 8 A 250 V AC
  • 8 A 28 V DC
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.026203
  • 0 kg CO2 eq.
Operating Time
  • 20 ms operating
  • 20 ms reset
Maximum Switching Voltage
  • 300 V DC IEC
UC Control Circuit Voltage
  • 24 V DC
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.1 kg CO2 eq.
  • 0.13972
UI Rated Insulation Voltage
  • 400 V IEC 60947
Accessories
  • RSZE1S48M
  • RSZE08P
Electrical Durability
  • 100000 cycles, 8 A at 250 V, AC-1 NO
  • 100000 cycles, 4 A at 250 V, AC-1 NC
  • 100000 cycles, 4 A at 250 V, AC-
Vibration Resistance
  • +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Drop Out Voltage Threshold
  • >= 0.1 Uc DC
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 5 kg CO2 eq.
  • 5.0251
ITHE Conventional Enclosed Thermal Current
  • 8 A -40-40 °C
Accessory Products
  • RSZE1S48M
  • RSZE08P
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Dielectric Strength
  • 1000 V AC between contacts
  • 2500 V AC between poles
  • 5000 V AC between coil and contact
  • 5000 V AC between coil and cont
Carbon Footprint Of The Distribution Phase A4
  • 0.0020517
  • 0 kg CO2 eq.
Average Resistance
  • 1440 Ohm DC 20 °C +/- 10 %
Minimum Switching Capacity
  • 120 mW 10 mA, 12 V
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Operating Rate
  • <= 600 cycles/hour under load
  • <= 18000 cycles/hour no-load
Shock Resistance
  • 10 gn 11 ms) not operating IEC 60068-2-27
  • 5 gn 11 ms) in operation IEC 60068-2-27
  • 5 gn 1
Ambient Air Temperature For Operation
  • -40-85 °C DC)
UE Rated Operational Voltage
  • 19.2...26.4 V DC
Average Coil Consumption
  • 0.45 W DC
UIMP Rated Impulse Withstand Voltage
  • 3.6 kV IEC 61000-4-5
