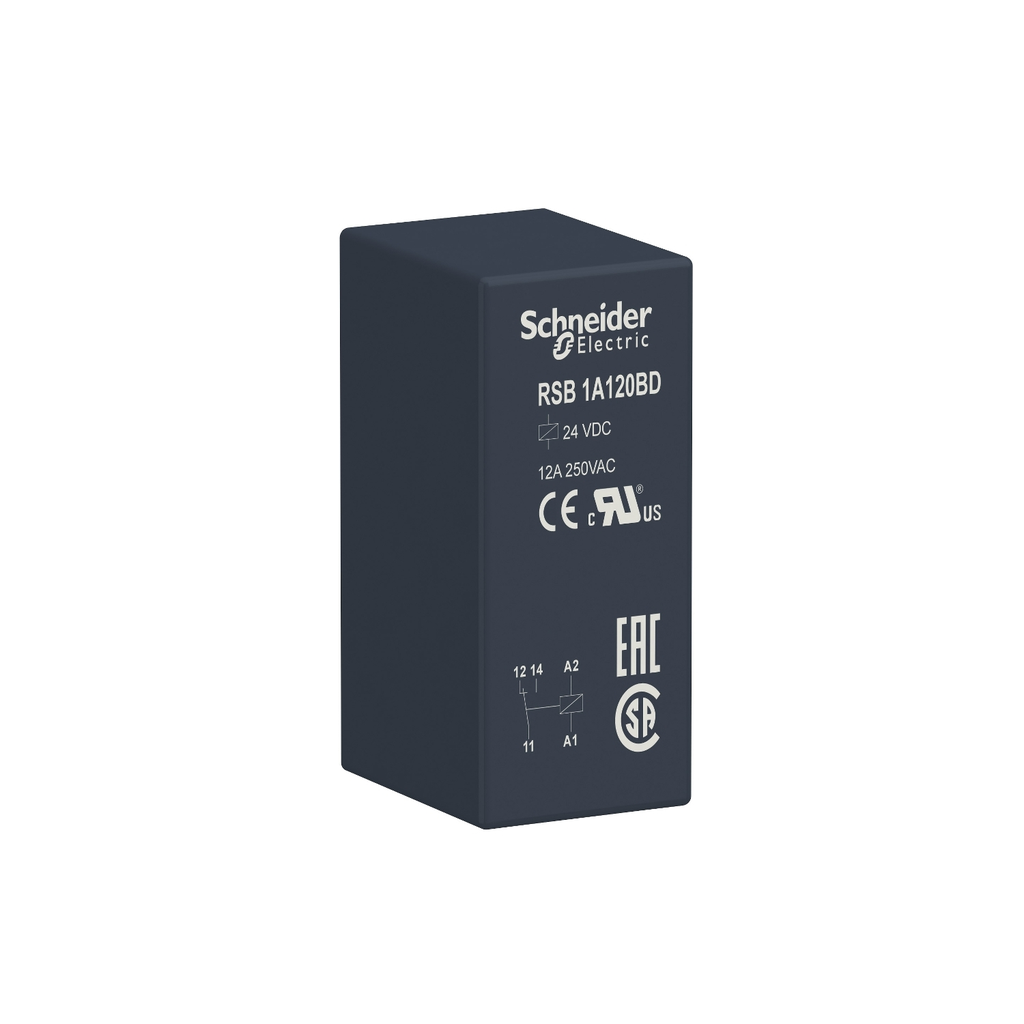

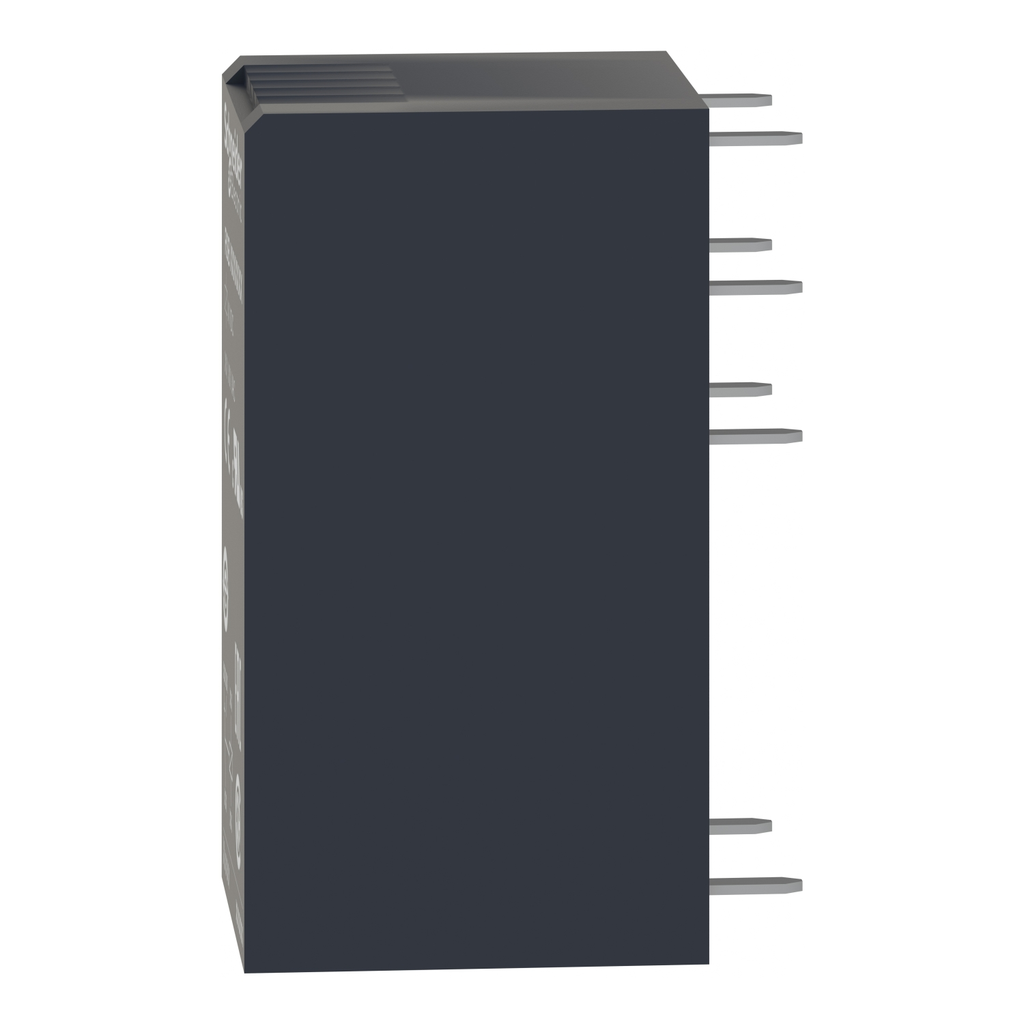

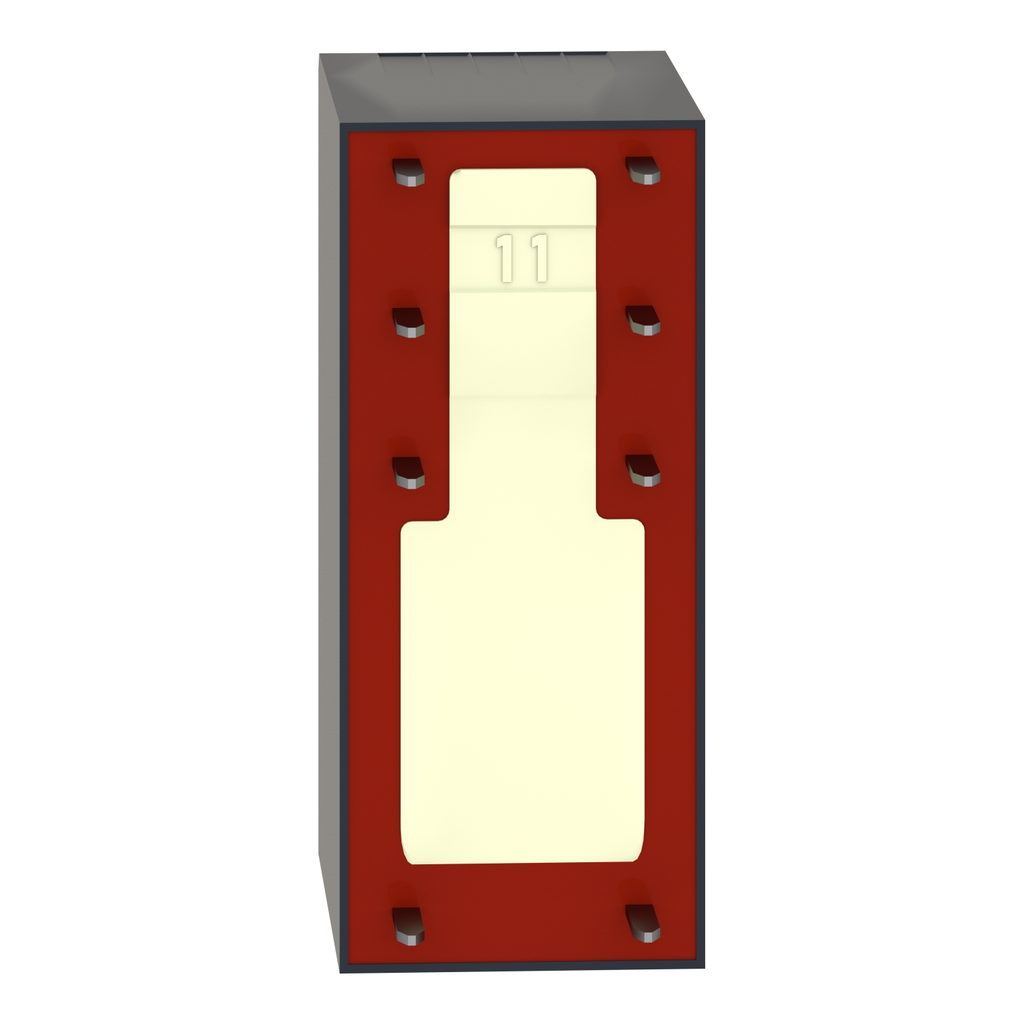

Square D RSB1A120BD 24 VDC 12 Amp SPDT 1CO Silver Alloy Plug-In Interface Relay

Manufacturer: Square-D / Schneider | Catalog # RSB1A120BD | Cooper Electric Part # 273825
$5.04/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony RSB interfacing plug-in relay has a control coil voltage of 24V DC and has 1 changeover contact single pole double throw with a rating of 12A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
12 Amp 250 V AC-12 Amp 28 V DC,12 Amp AC-1/DC-1) NO IEC-6 Amp AC-1/DC-1) NC IEC
Contact Configuration
1 C/O
Contact Material
Silver Alloy
Control Type
Without push-button
Dielectric Strength
1000 V
Enclosure
IP 40 CONFORMING TO IEC/EN 60529
Line Rated Current
12 A
Net Weight
0.014 kg
Operating Cycles
<= 18000 Cycles/hour No-load,<= 600 Cycles/hour Under Load
Operating Temperature
-40-85 Adegrees C DC)
Resistance
1440 OHM (AC) AT 20 C +/- 10
Standard
CSA C22.2 No 14,IEC 61810-1,UL 508
Storage Temperature
-40-85 degrees C
TC Connection
PRINTED CIRCUIT BOARD (PCB)
Type
Plug-in relay;Flat (PCB type)
Voltage
36 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RSB

General Product Info

12-Digit UPC
338911025417
GTiN
03389110254136
Product UPC
78590156912
Weight
0.014 kg

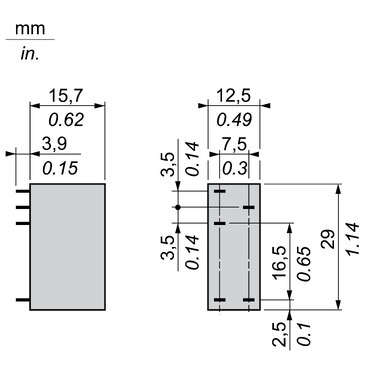

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Certifications
CSA,EAC,UL
Country of Origin
Austria
IE Rated Operational Current
  • 12 A AC-1/DC-1) NO IEC
  • 6 A AC-1/DC-1) NC IEC
Test Levels
  • level A group mounting
IP Degree Of Protection
  • IP40 conforming to IEC 60529
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Carbon Footprint Of The Installation Phase A5
  • 0 kg CO2 eq.
  • 0.0001028528
Load Current
  • 12 A 250 V AC
  • 12 A 28 V DC
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.0267207138
  • 0 kg CO2 eq.
Operating Time
  • 20 ms operating
  • 20 ms reset
Maximum Switching Voltage
  • 300 V DC IEC
UC Control Circuit Voltage
  • 24 V DC
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.1 kg CO2 eq.
  • 0.1424805609
UI Rated Insulation Voltage
  • 400 V IEC 60947
Accessories
  • RSZE1S35M
  • RSZE05P
Electrical Durability
  • 100000 cycles, 12 A at 250 V, AC-1 NO
  • 100000 cycles, 6 A at 250 V, AC-1 NC
  • 100000 cycles, 6 A at 250 V
Vibration Resistance
  • +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Drop Out Voltage Threshold
  • >= 0.1 Uc DC
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 5 kg CO2 eq.
  • 4.8845457012
ITHE Conventional Enclosed Thermal Current
  • 12 A -40-40 °C
Accessory Products
  • RSZE1S35M
  • RSZE05P
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Dielectric Strength
  • 1000 V AC between contacts
  • 2500 V AC between poles
  • 5000 V AC between coil and contact
  • 5000 V AC between coil and cont
Carbon Footprint Of The Distribution Phase A4
  • 0.0020922371
  • 0 kg CO2 eq.
Average Resistance
  • 1440 Ohm AC 20 °C +/- 10 %
Minimum Switching Capacity
  • 120 mW 10 mA, 12 V
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Operating Rate
  • <= 600 cycles/hour under load
  • <= 18000 cycles/hour no-load
Shock Resistance
  • 10 gn 11 ms) not operating IEC 60068-2-27
  • 5 gn 11 ms) in operation IEC 60068-2-27
  • 5 gn 1
Ambient Air Temperature For Operation
  • -40-85 °C DC)
UE Rated Operational Voltage
  • 16.8...36 V DC
Average Coil Consumption
  • 0.45 W DC
UIMP Rated Impulse Withstand Voltage
  • 3.6 kV IEC 61000-4-5
