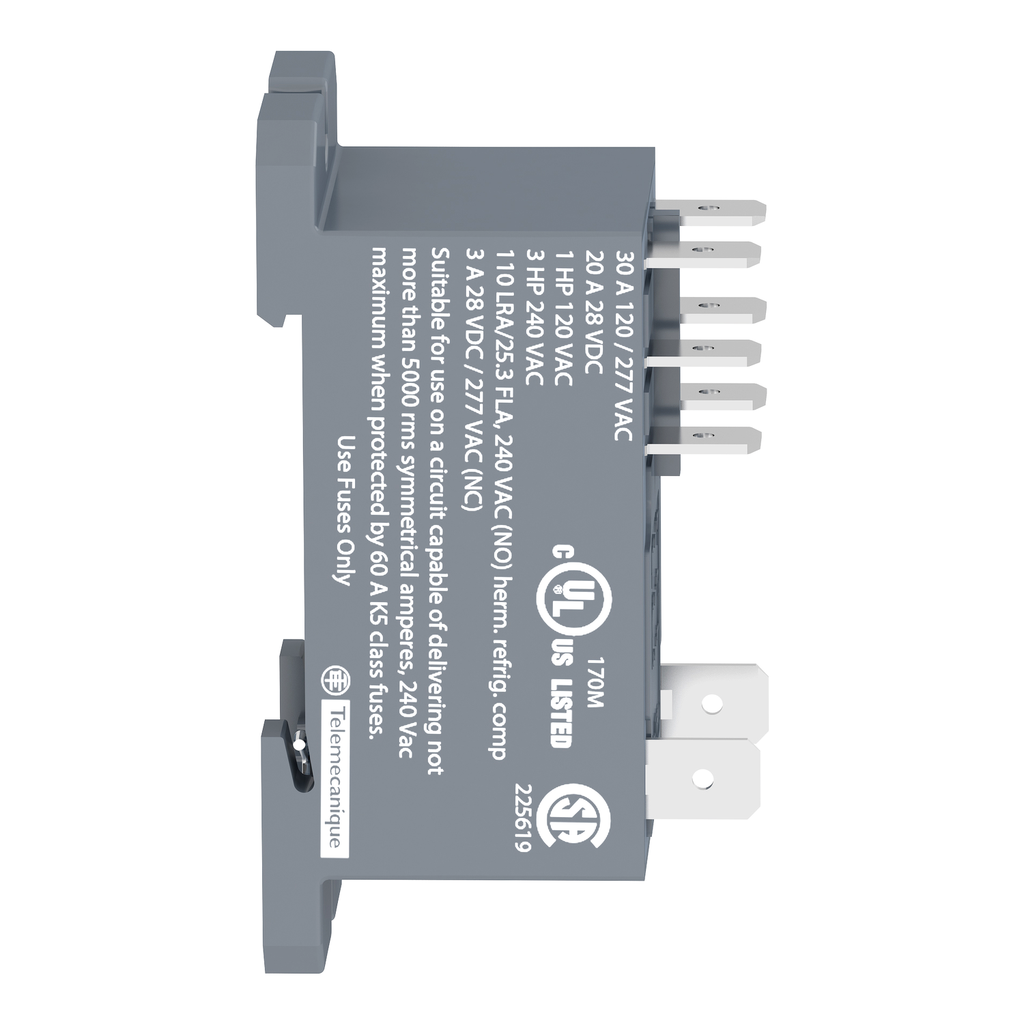

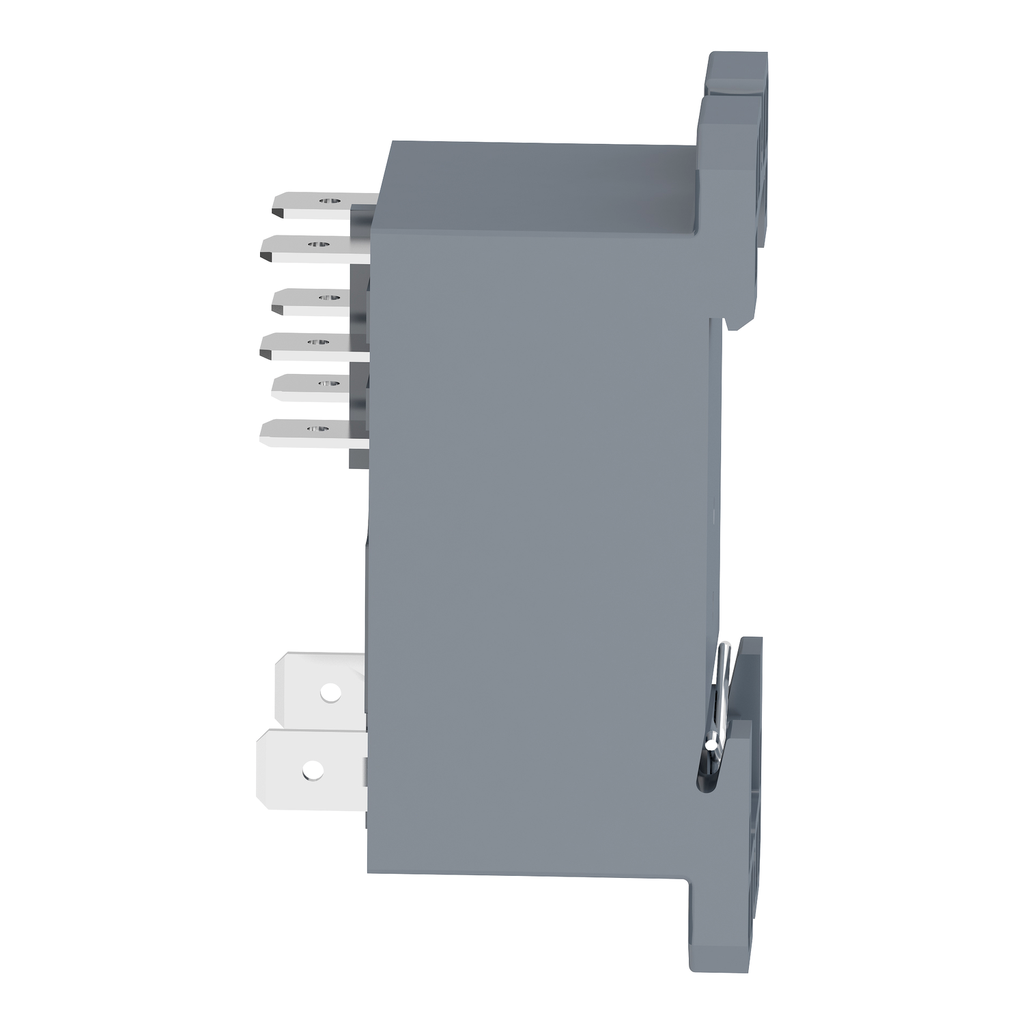

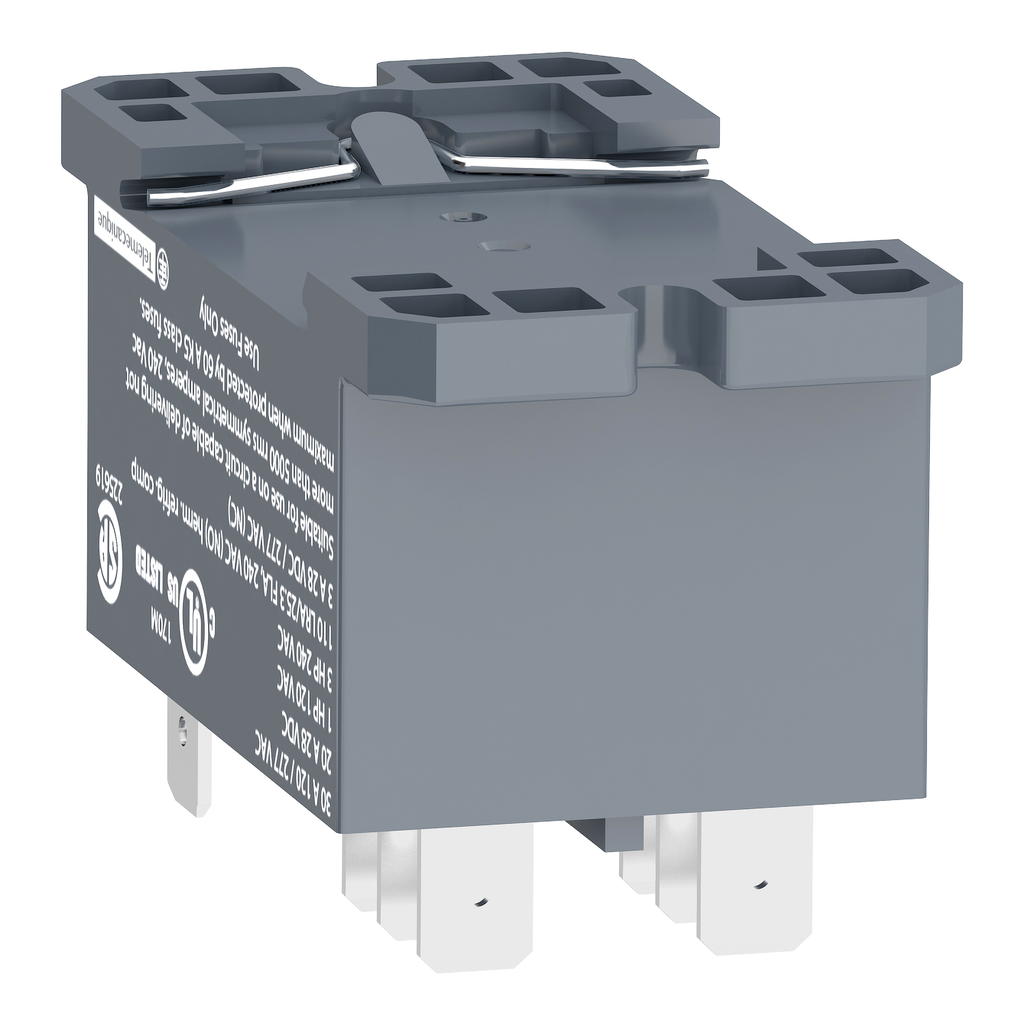

Square D RPF2BF7 120 VAC 30 Amp 2NO 2NC Din Rail/Panel Mount Plug-In Relay

Manufacturer: Square-D / Schneider | Catalog # RPF2BF7 | Cooper Electric Part # 273822
$15.69/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony RPF panel mounting power relay with fast-on terminals has a coil control voltage of 120V AC and has 2 normally open contacts with a rating of 30A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
30 Amp 277 V AC) NO UL-20 Amp 28 V DC) NO UL-30 Amp 250 V AC) NO IEC-25 Amp 28 V DC) NO IEC-3 Amp 277 V AC) NC UL-3 Amp 28 V DC) NC UL-3 Amp 250 V AC) NC IEC-3 Amp 28 V DC) NC IEC
Contact Configuration
2 C/O
Contact Material
Silver Tin Oxide
Contact Rating
25 A 28 V DC-30 A 250 V AC
Control Type
Without lockable test button NULL
Dielectric Strength
1500 V
Enclosure
IP 40 CONFORMING TO IEC/EN 60529
Line Rated Current
30 A
Net Weight
0.082 kg
Operating Cycles
1200,18000
Operating Temperature
-40-55 degrees C
Power Consumption
4 VA
Resistance
1600 OHMS
Standard
CSA C22.2 No 14,IEC 61810-1,UL 508
Storage Temperature
-40-85 degrees C
TC Connection
FLAT/SPADE (FASTON TYPE)
Type
Plug-in relay

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RPF

General Product Info

12-Digit UPC
389119401602
GTiN
03389119401609
Product UPC
78590143782
Weight
0.082 kg

Dimensions

Height
68.5 mm
Warranty Length
18 mth
Width
33.7 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Certifications
CE,CSA,GOST,UL
Country of Origin
China
IE Rated Operational Current
  • 30 A 277 V AC) NO UL
  • 20 A 28 V DC) NO UL
  • 30 A 250 V AC) NO IEC
  • 30 A
Test Levels
  • level A group mounting
IP Degree Of Protection
  • IP40 conforming to IEC 60529
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Carbon Footprint Of The Installation Phase A5
  • 0.0003047993681876018
  • 0 kg CO2 eq.
Load Current
  • 25 A 28 V DC
  • 30 A 250 V AC
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.2 kg CO2 eq.
  • 0.20902329317351404
Maximum Switching Voltage
  • 250 V IEC
UC Control Circuit Voltage
  • 120 V AC 50/60 Hz
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.8 kg CO2 eq.
  • 0.7827114994592784
Average Consumption
  • 4 VA 60 Hz
UI Rated Insulation Voltage
  • 250 V IEC
  • 300 V UL
Electrical Durability
  • 100000 cycles resistive
Vibration Resistance
  • 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation
  • 10 gn +/- 1 mm 10-150 Hz)5 cycles not operating
  • 10 gn +/- 1 mm 10-150
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 27 kg CO2 eq.
  • 26.551167340930224
ITHE Conventional Enclosed Thermal Current
  • 25 A -40-55 °C relays side by side without a gap
  • 30 A -40-55 °C 13 mm gap between two relays
  • 30 A -40-55 °C 13 m
Dielectric Strength
  • 2000 V AC between poles with basic
  • 4000 V AC between coil and contact with reinforced
  • 4000 V AC be
Carbon Footprint Of The Distribution Phase A4
  • 0.11098077113366862
  • 0.1 kg CO2 eq.
Average Resistance
  • 4250 Ohm at 20 °C +/- 15 %
Minimum Switching Capacity
  • 6000 mW 500 mA / 12 V NO
  • 170 mW 10 mA / 6 V NC
Operating Rate
  • <= 1200 cycles/hour under load
  • <= 18000 cycles/hour no-load
Shock Resistance
  • 10 gnin operation
  • 30 gnnot operating
UIMP Rated Impulse Withstand Voltage
  • 4 kV 1.2/50 s
