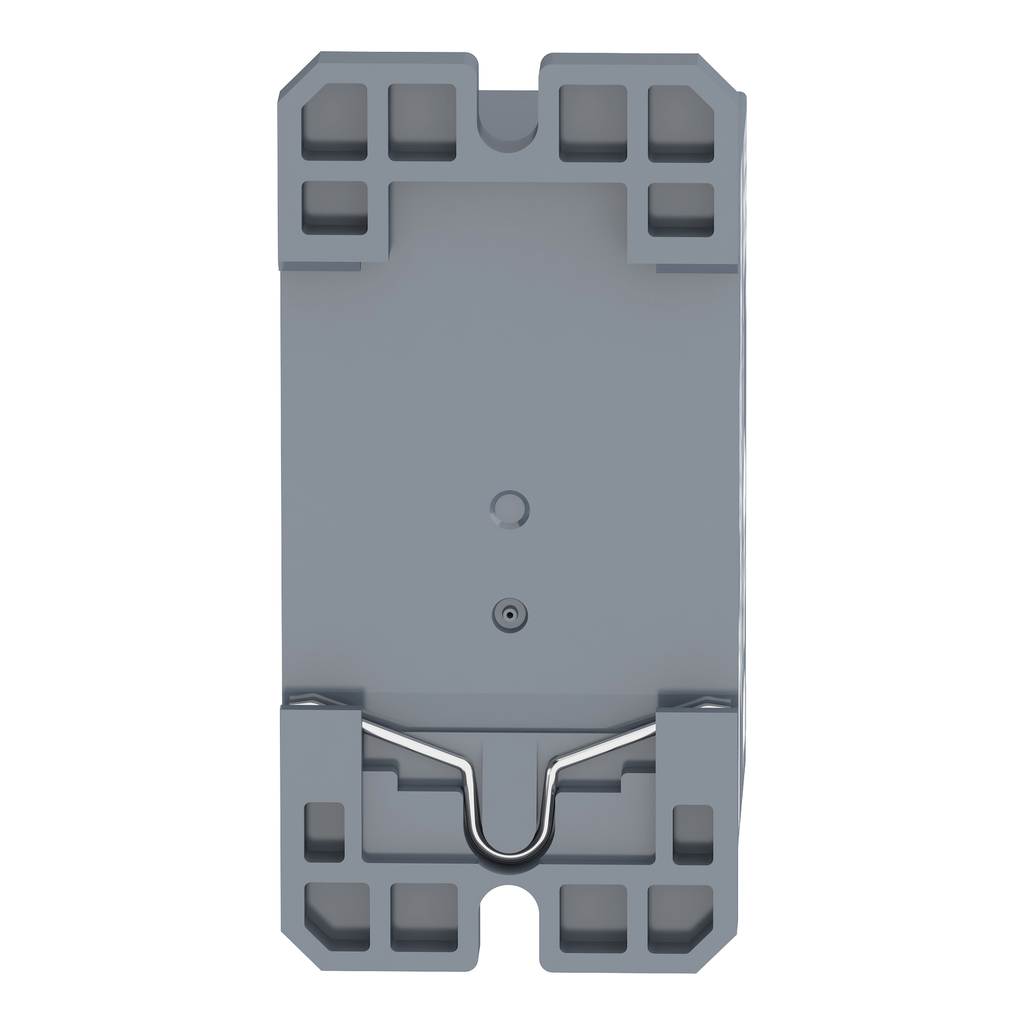

Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Email

Square D RPF2AF7 120 VAC 30 Amp 2NO Din Rail/Panel Mount Plug-In Relay

Manufacturer: Square-D / Schneider | Catalog # RPF2AF7 | Cooper Electric Part # 273818
$14.97/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
9 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony RPF panel mounting power relay with fast-on terminals has a coil control voltage of 120V AC and has 2 normally open contacts with a rating of 30A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
30 Amp 277 V AC) NO UL-20 Amp 28 V DC) NO UL-30 Amp 250 V AC) NO IEC-25 Amp 28 V DC) NO IEC
Contact Configuration
2 NO
Contact Material
Silver Tin Oxide
Contact Rating
25 A 28 V DC-30 A 250 V AC
Control Type
Without lockable test button NULL
Dielectric Strength
1500 V
Enclosure
IP 40 CONFORMING TO IEC/EN 60529
Line Rated Current
30 A
Net Weight
0.082 kg
Operating Cycles
1200,18000
Operating Temperature
-40-55 degrees C
Power Consumption
4 VA
Resistance
1600 OHMS
Standard
CSA C22.2 No 14,IEC 61810-1,UL 508
Storage Temperature
-40-85 degrees C
TC Connection
FLAT/SPADE (FASTON TYPE)
Type
Plug-in relay

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RPF

General Product Info

12-Digit UPC
389119401541
GTiN
03389119401548
Product UPC
78590157278
Weight
0.082 kg

Dimensions

Height
68.5 mm
Warranty Length
18 mth
Width
33.7 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,GOST,UL
Country of Origin
China
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
