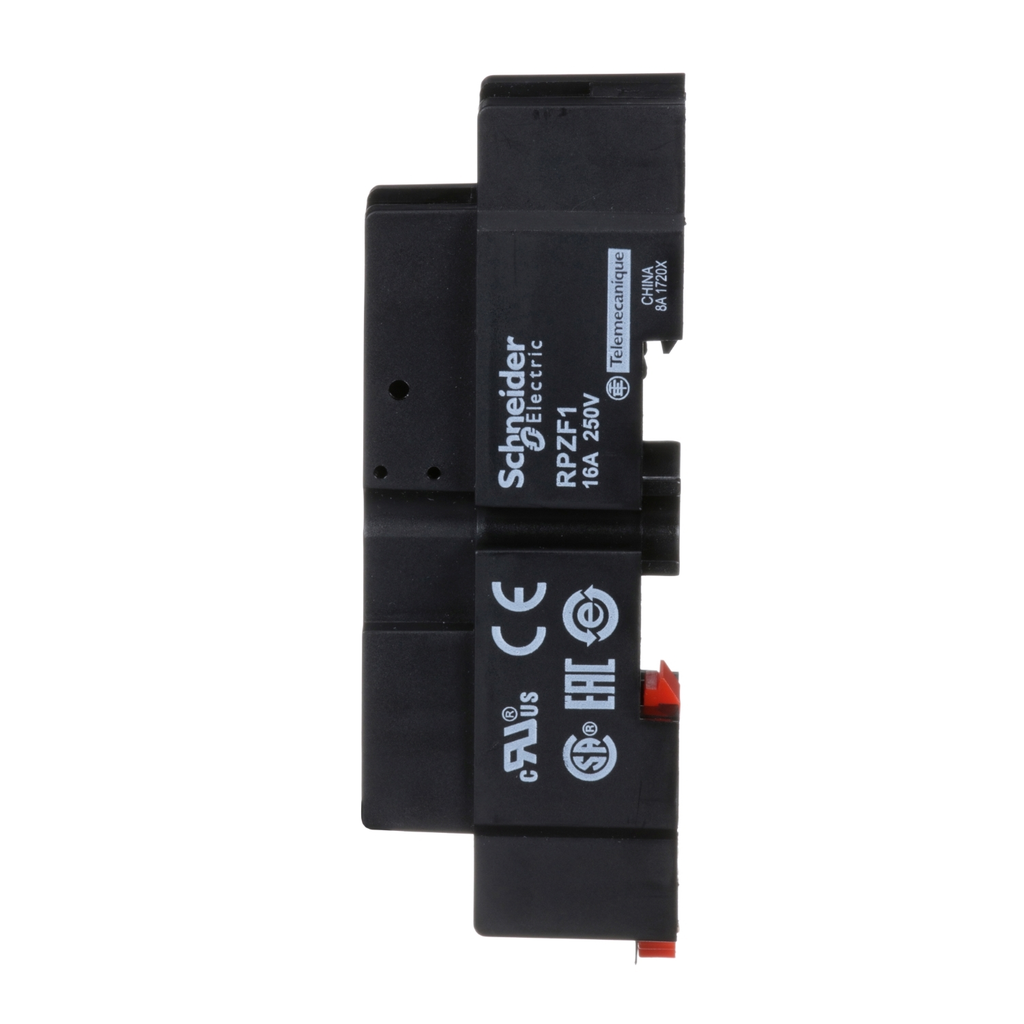

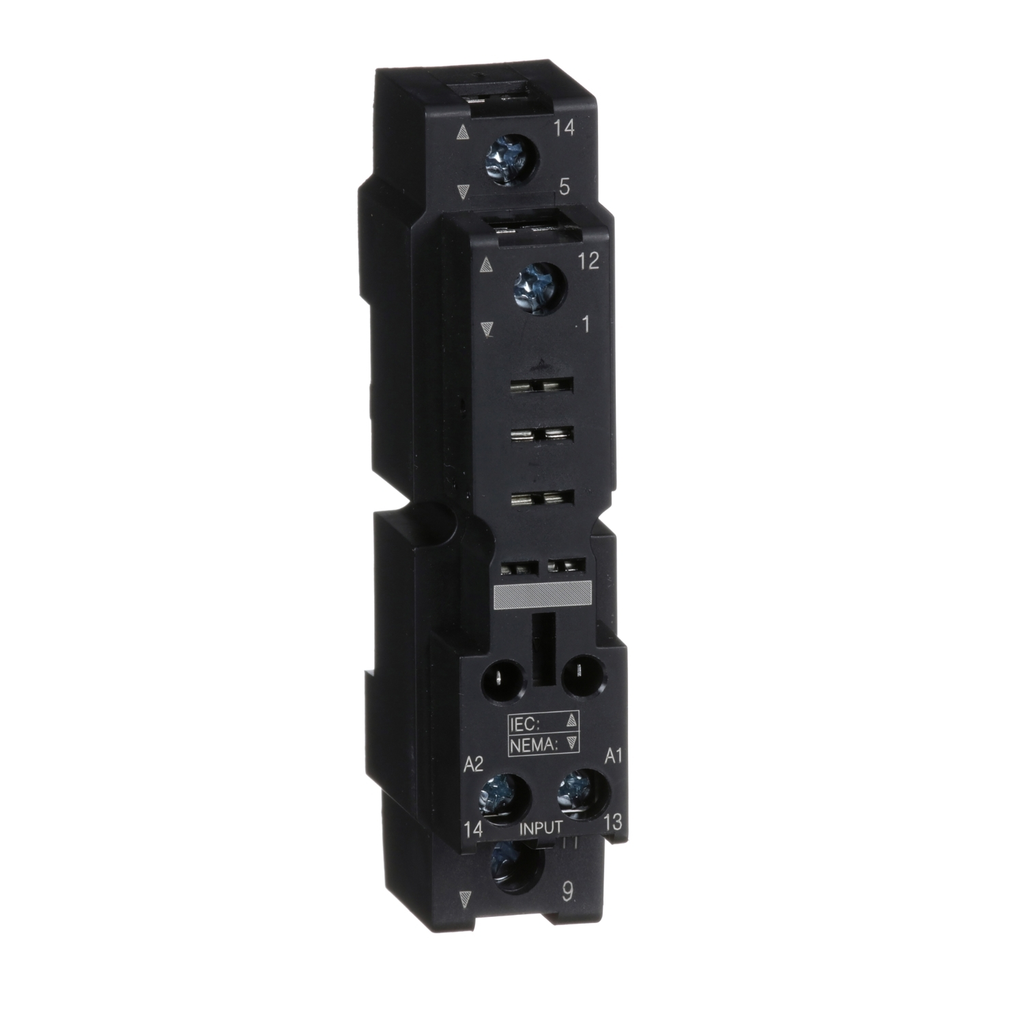

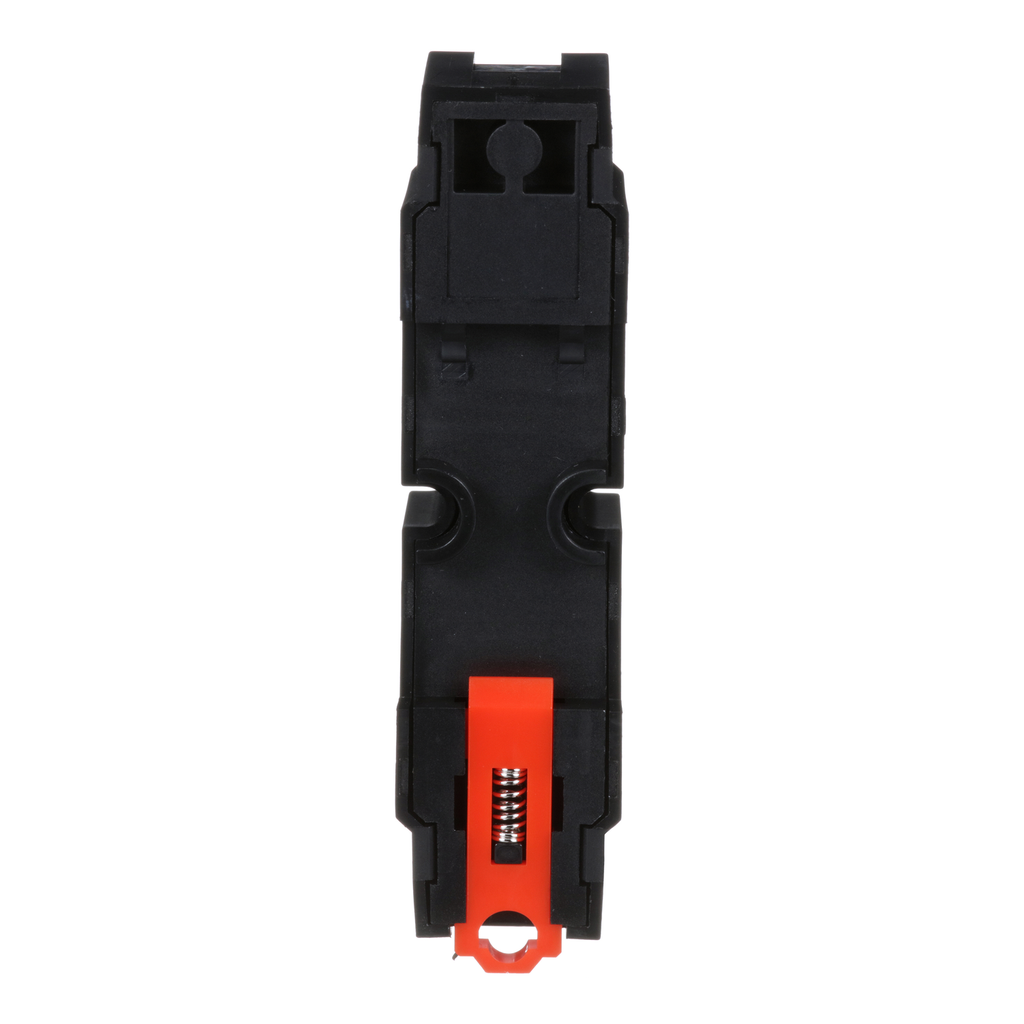

Square D RPZF1 250 Volt 16 Amp 35 mm Din Rail/Panel Mount Screw Clamp Terminal Relay Socket

Manufacturer: Square-D / Schneider | Catalog # RPZF1 | Cooper Electric Part # 273786
$6.24/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Harmony Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Harmony plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Harmony plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Harmony plug in relays are UL Listed. "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
16 Amp
Applications
PLUG-IN RELAY RPM 1 C/O
Dielectric Strength
2500 V
Enclosure
IP20
Line Rated Current
16 A
Net Weight
0.031 kg
Operating Temperature
-40-55 degrees C
Standard
CSA C22.2 No 14,IEC 61984,UL 508
Storage Temperature
-40-85 degrees C
TC Connection
CONTACT TERMINAL - SCREW CLAMP TERMINALS, 2 WIRES SOLID WITHOUT CABLE END 0.5...4 MMA / AWG 20...AWG 12-CONTACT TERMINAL - SCREW CLAMP TERMINALS, 1 WIRE SOLID WITHOUT CABLE END 0.5...4 MMA / AWG 20...AWG 12-CONTACT TERMINAL - SCREW CLAMP TERMINALS, 2 WIRES FLEXIBLE WITH CABLE END 0.5...2.5 MMA / AWG 20...AWG 14-CONTACT TERMINAL - SCREW CLAMP TERMINALS, 1 WIRE FLEXIBLE WITH CABLE END 0.5...2.5 MMA / AWG 20...AWG 14-COIL TERMINAL - SCREW CLAMP TERMINALS, 2 WIRES SOLID WITHOUT CABLE END 0.5...2.5 MMA / AWG 20...AWG 14-COIL TERMINAL - SCREW CLAMP TERMINALS, 1 WIRE SOLID WITHOUT CABLE END 0.5...2.5 MMA / AWG 20...AWG 14-COIL TERMINAL - SCREW CLAMP TERMINALS, 2 WIRES FLEXIBLE WITH CABLE END 0.5...1.5 MMA / AWG 20...AWG 16-COIL TERMINAL - SCREW CLAMP TERMINALS, 1 WIRE FLEXIBLE WITH CABLE END 0.5...1.5 MMA / AWG 20...AWG 16
Type
Socket
Voltage
250 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZELIO

General Product Info

12-Digit UPC
389119402289
GTiN
03389119402286
Product UPC
78590157326
Weight
0.031 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,EAC,UL
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • RPM12BD
  • RPZR235
  • RPM12F7
  • RPM11BD
  • RPM12B7
  • RPM11F7
Cross Sell Products
  • RPZF2
  • RPZF3
  • RPZF4
