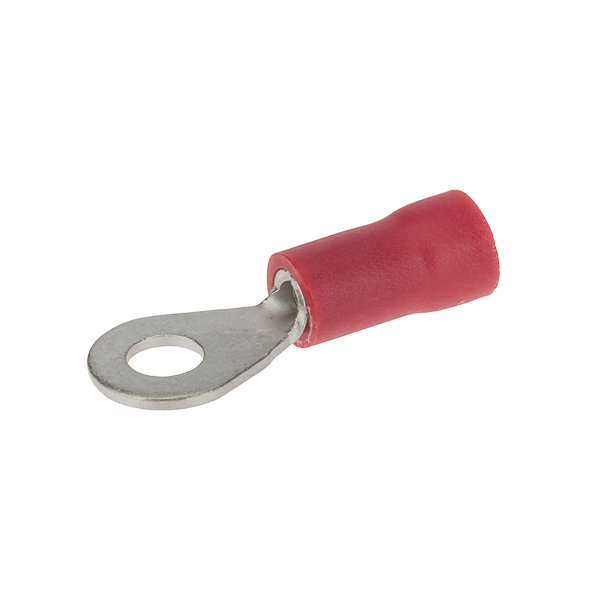

Product image for NSI R22-6V-S #6 Stud 22 to 18 AWG Red Vinyl 1-Hole Insulated Ring Terminal
Email

NSI R22-6V-S #6 Stud 22 to 18 AWG Red Vinyl 1-Hole Insulated Ring Terminal

Manufacturer: NSi | Catalog # R22-6V-S | Cooper Electric Part # 27227
$41.60/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
22-18 AWG Vinyl Insulated Ring Terminal #6 Stud Vinyl ring terminals are basic tongue ring terminals. Safe and reliable connections because it cannot be disconnected unless the screw is completely removed. Vinyl insulated ring terminals are made of tin-plated copper with brazed seam, vinyl (PVC). 300V, 75 degrees C. FEATURES: STYLE: Standard MATERIAL: Vinyl QUANTITY: 25 Count WIRE SIZE: 22-18 AWG STUD SIZE: 6 LENGTH: 0.826 WIDTH: 0.314 BRAND EQUIVALENT: Morris Products 01012 Penn Union R4A6 Ilsco 44201-B10

Technical Information

Applications
Wire Termination
Conductor Size
22-18 AWG
Material
Copper
Number of Terminations
1
Standard
CULUS
Terminal Size
#6
Type
Vinyl Insulated Ring Terminal
Voltage
600 Volt
Wire Size
22-18 AWG

Manufacturer Information

Brand
NSI Industries
Sub Brand
Miniterms

General Product Info

12-Digit UPC
662381060501
Color
Red
Environmental Conditions
75 C
Finish
Tin Plated
GTiN
00662381060501
Product UPC
66238106050

Dimensions

Height
4.1 Inch
Length
21 Inch
Warranty Length
1 yr
Width
8 in

Certifications and Compliance

Country of Origin
Taiwan
Certifications and Standards
  • RoHS
