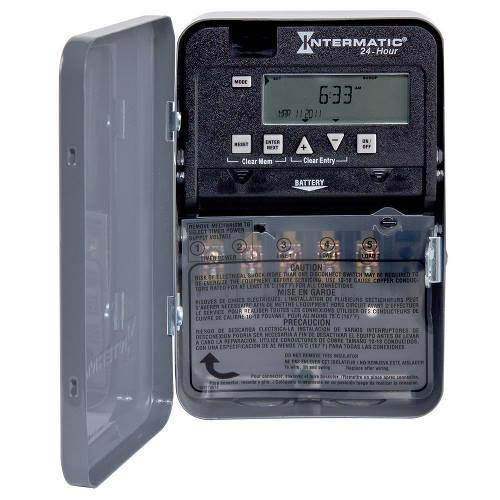

Product image for Intermatic ET1115C NEMA 1 Steel Case 24 Hour 120 to 277 VAC 60 Hz 10/20 Amp SPDT Electronic Time Switch
Image thumbnail 0
Image thumbnail 1
Email

Intermatic ET1115C NEMA 1 Steel Case 24 Hour 120 to 277 VAC 60 Hz 10/20 Amp SPDT Electronic Time Switch

Manufacturer: Intermatic, Inc | Catalog # ET1115C | Cooper Electric Part # 271158
$350.15/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
This series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, 14 ON/OFF events per circuit, and automatic daylight saving time corrections without the need of user interaction. They come in standard 24-hour, 7-day, and 7-day astronomic (sunrise to sunset) versions.

Technical Information

Action
SPDT
Amperage
30 Amp
Applications
Indoor, HVACR, Industrial
Connection Type
Teeter Type
Contact Configuration
1 NO, 1 NC
Contact Rating
20 AMP @ 120/240 VAC (Resistive NO), 10 AMP @ 120/240 VAC (Resistive NC), 20 AMP @ 120/240 VAC (Inductive NO), 10 AMP @ 120/240 VAC (Inductive NC), 5 AMP @ 120/240 VAC (Tungsten NO), 20 AMP @ 120 - 277 VAC (Ballast NO), 3 AMP @ 120 - 277 VAC (Ballast NC)
Enclosure
NEMA 1 Steel
Enclosure Type
Indoor Type 1 Metal
Frequency
50/60 Hz
Horsepower
1 hp
Input Voltage
208-277 V
Max Operating Temperature
104 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Wall Mount
Number of Circuits
1
Number of Poles
1 Pole
Operating Temperature
-40 to 155 degrees F, -40 to 68 degrees C
Standard
CCSAus Certified,California TITLE 24 Compliant,HVACR,Title CA 20 Listed
Switch Type
SPDT
TC Connection
Teeter Type
Type
Electronic
Voltage
120-277 VAC

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275109940
GTiN
00078275109940
Product UPC
07827510994

Dimensions

Depth
87.3 mm
Height
200 mm
Width
130.2 mm
Applications
  • Interior Lighting
  • Exterior Lighting
  • Electric Pumps
  • Electric Motor Control
  • Various Other Electrical Loads
Features
  • Selector switch to determine input voltage between 120-277 VAC, 50/60 Hz
  • 14 ON/OFF events per circuit
  • To-the-minute accuracy
  • Temporary override or permanent manual override
  • Automatic Daylight Saving Time adjustment
  • Astronomic models enable dusk-to-dawn scheduling
Related Accessories and Parts
  • ET1115CM
