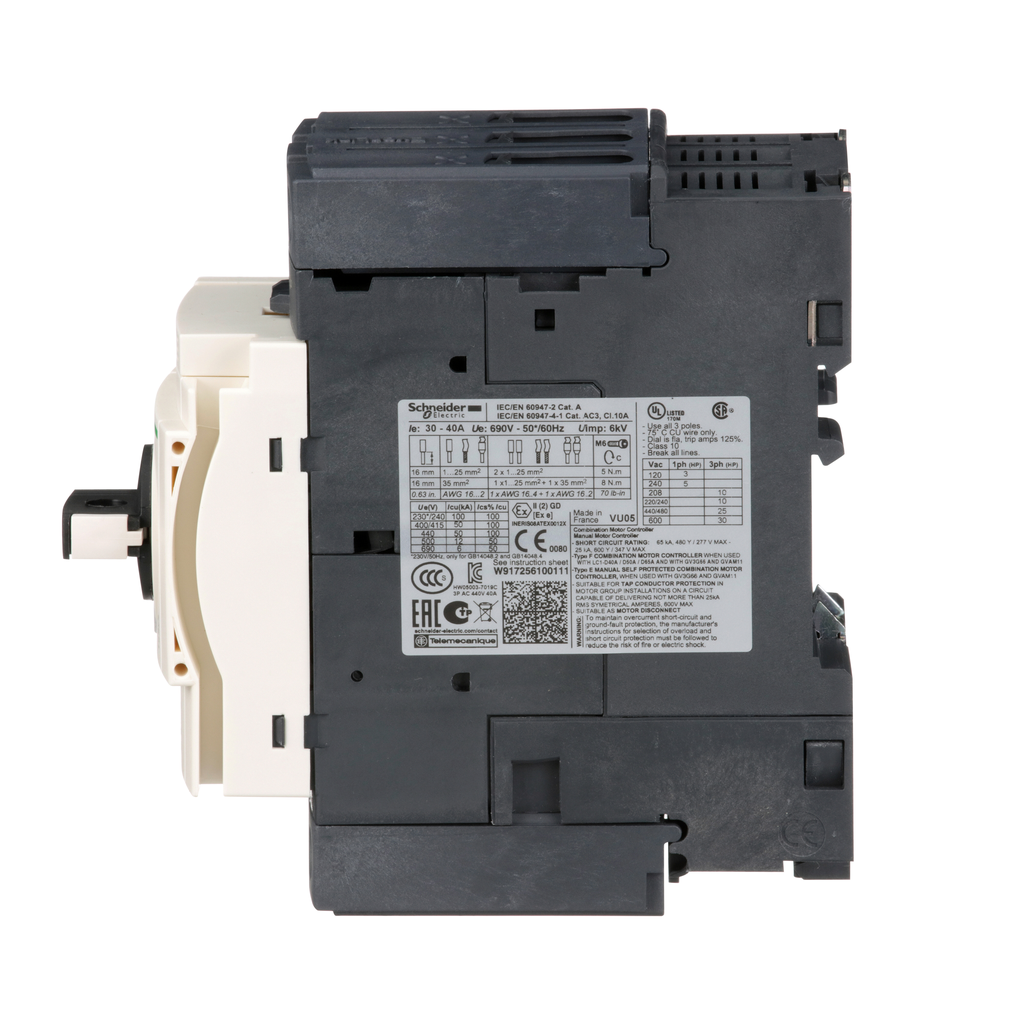

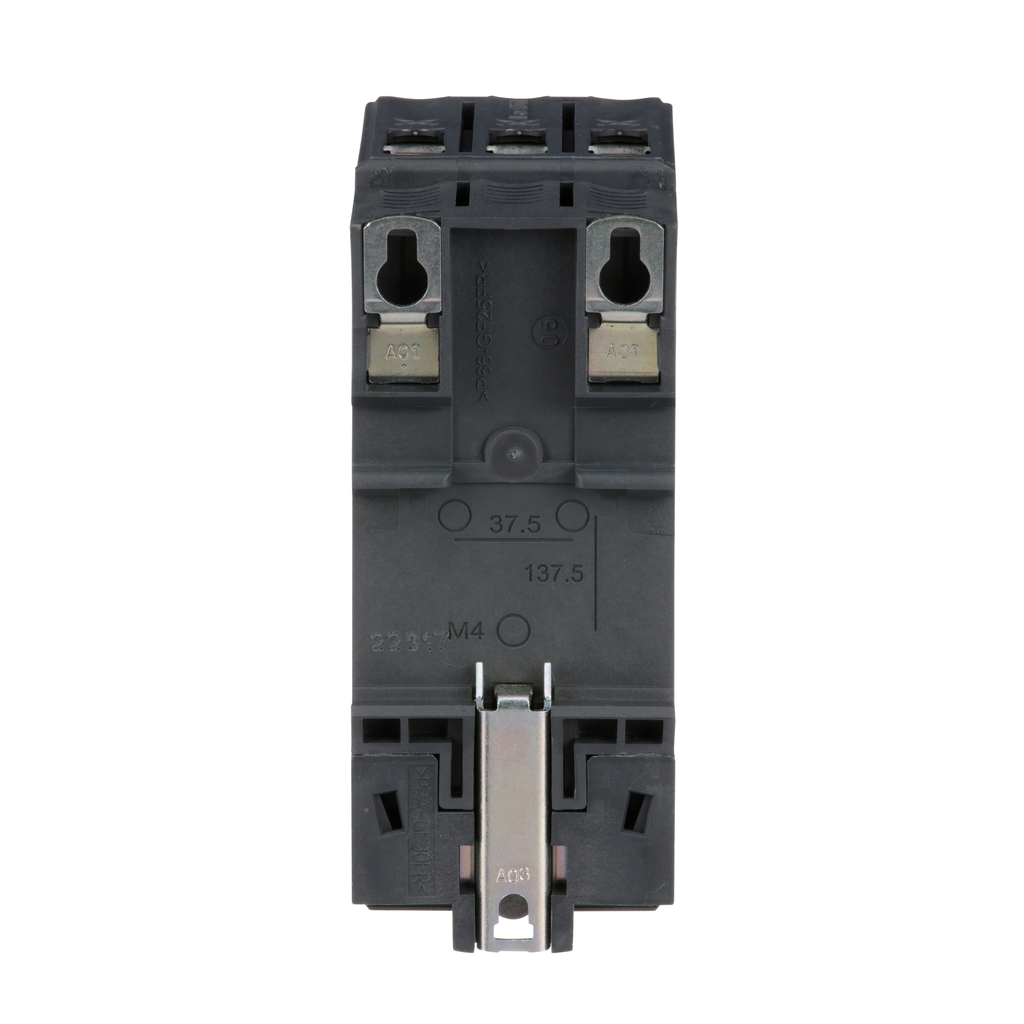

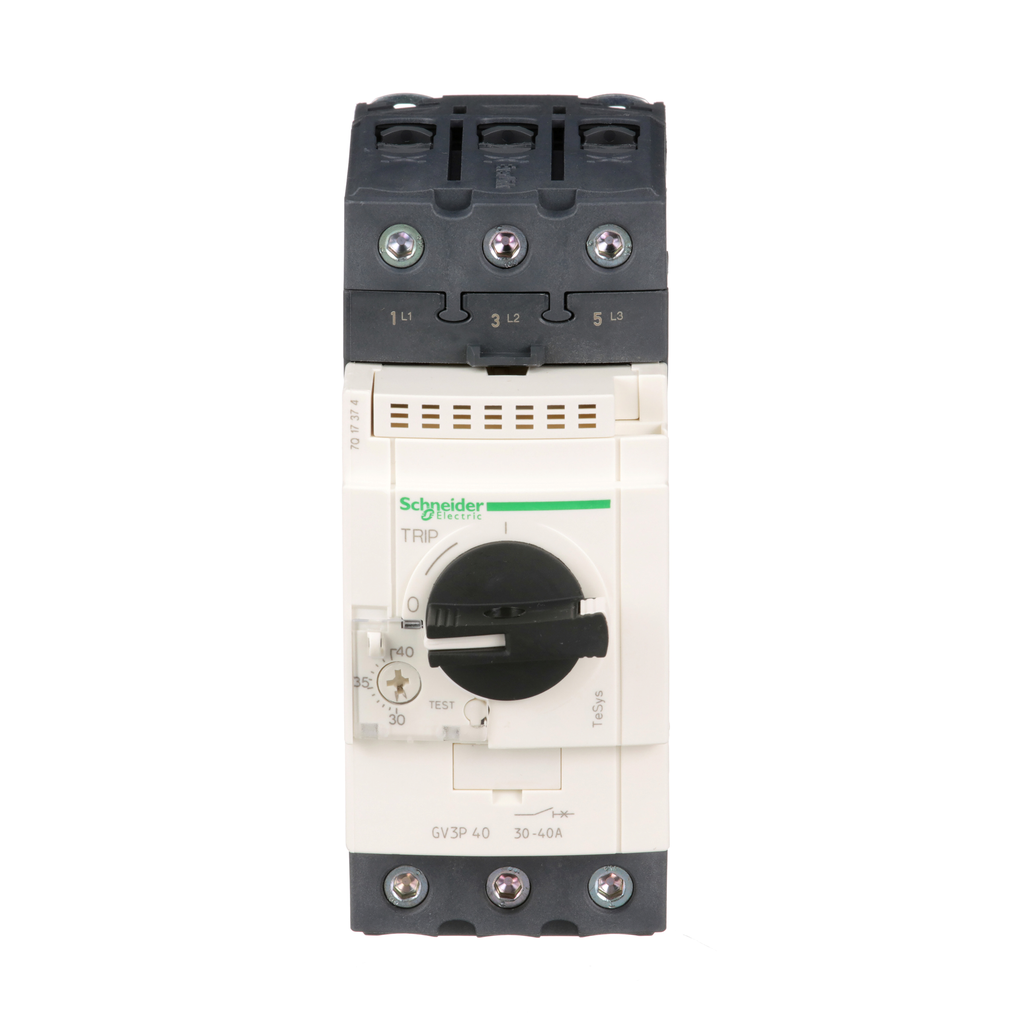

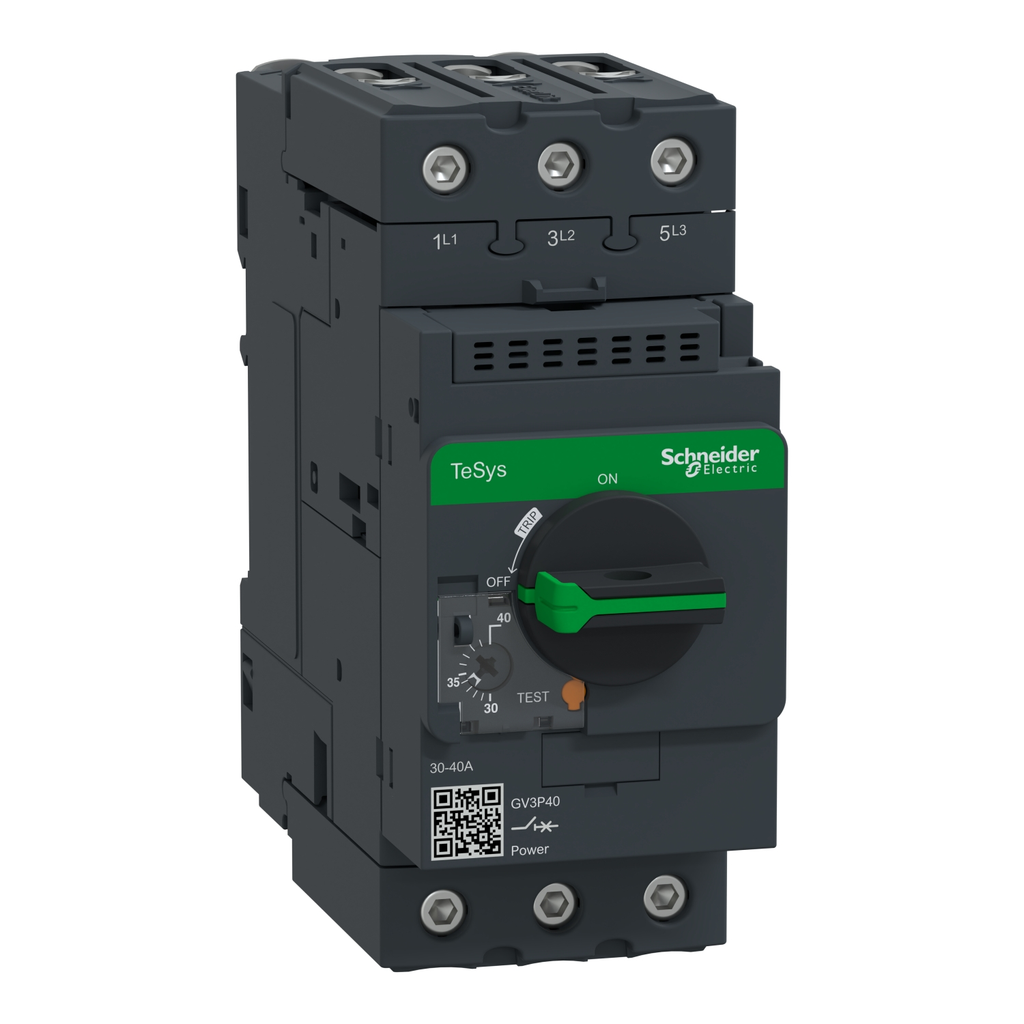

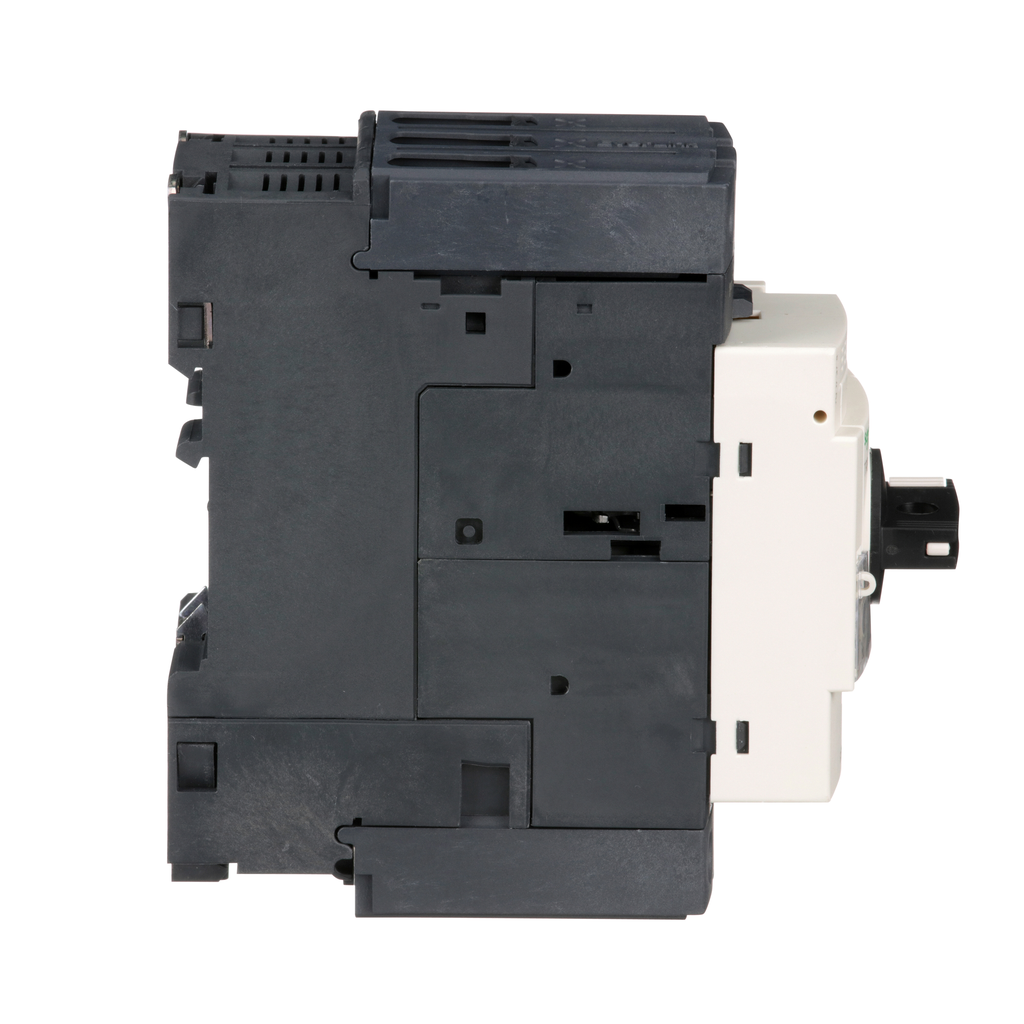

Square D GV3P40 600 VAC 40 Amp 3-Pole Manual Motor Starter

Manufacturer: Square-D / Schneider | Catalog # GV3P40 | Cooper Electric Part # 270898
$496.51/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Friday 7:00am ET
11 available

For Delivery

Order by Friday 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
The GV3 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV3PE controls motors with full load currents up to 65 amperes. The manual starter is three pole with horsepower ratings. The manual starter is operated by a rotary handle. The Class 10 ambient compensated thermal over current is adjustable from 30 ampere to 40 ampere. This device has EVERLINK terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Technical Information

Amperage
40 Amp
Applications
MOTOR
Control Type
Rotary knob
Enclosure
IP20 CONFORMING TO IEC 60529
Line Rated Current
40 A
Net Weight
0.96 kg
Number of Poles
3 Pole
Operating Cycles
25 cyc/h
Operating Temperature
-20...60 degrees C
Range
TeSys
Reset Type
AMBIENT COMPENSATED BIMETALLIC (CLASS 10) 30A TO 40A
Size
132 MM,136 MM,55 MM
Standard
CSA C22.2 No 60947-4-1,EN/IEC 60947-2,EN/IEC 60947-4-1,UL 60947-4-1
Storage Temperature
-40-80 degrees C
TC Connection
EVERLINK BTR SCREW CONNECTORS 2 1-25 MMA SOLID- EVERLINK BTR SCREW CONNECTORS 2 1-25 MMA FLEXIBLE WITHOUT CABLE END- EVERLINK BTR SCREW CONNECTORS 2 1-25 MMA FLEXIBLE WITH CABLE END
Trip Point
560-560 A
Type
CIRCUIT BREAKER
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
GV3P,TESYS,TESYS GV3

General Product Info

12-Digit UPC
389119405396
Color
Gray
GTiN
03389119405393
Product UPC
78590147720
Weight
0.96 kg

Dimensions

Depth
136 mm
Height
132 mm
Warranty Length
18 mth
Width
55 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
ABS,ATEX,BV,CCC,CSA,DNV-GL,EAC,LROS (Lloyds Register Of Shipping),UKCA,UL
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
