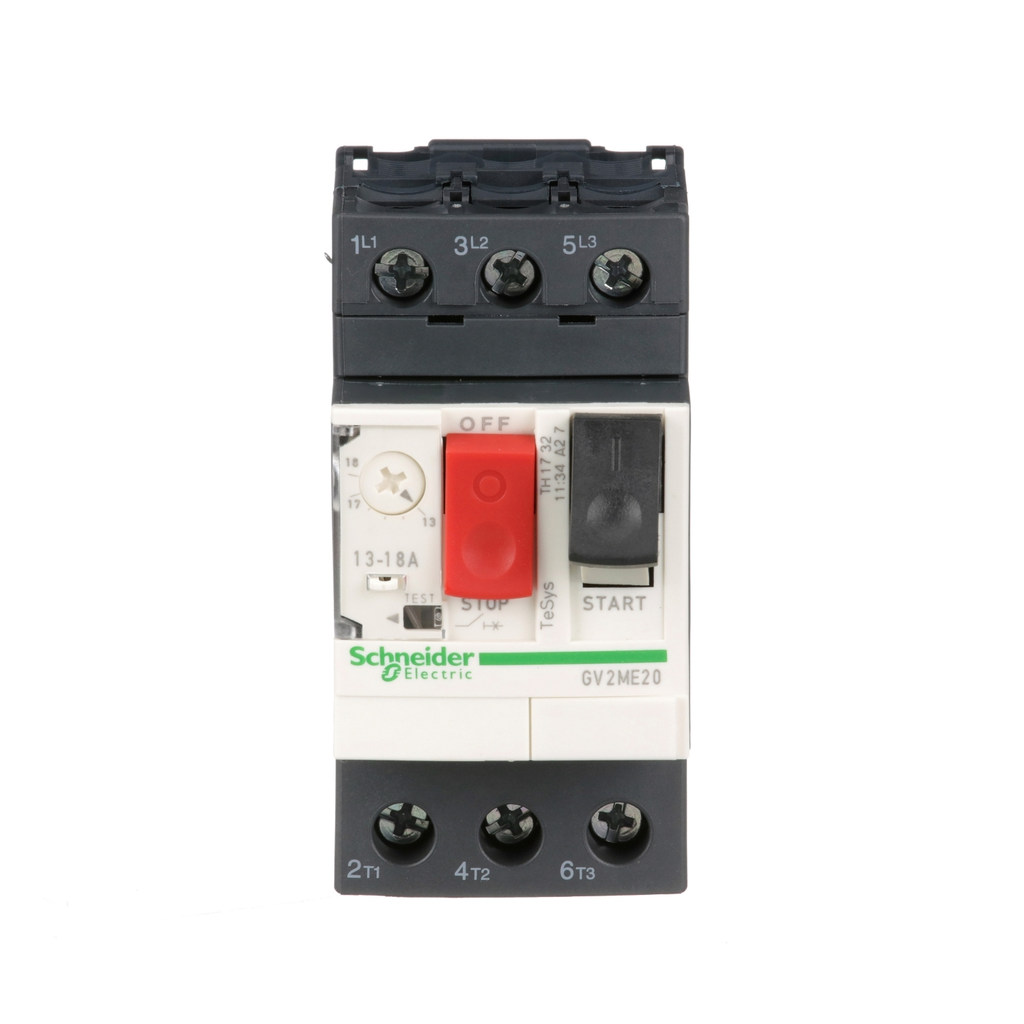

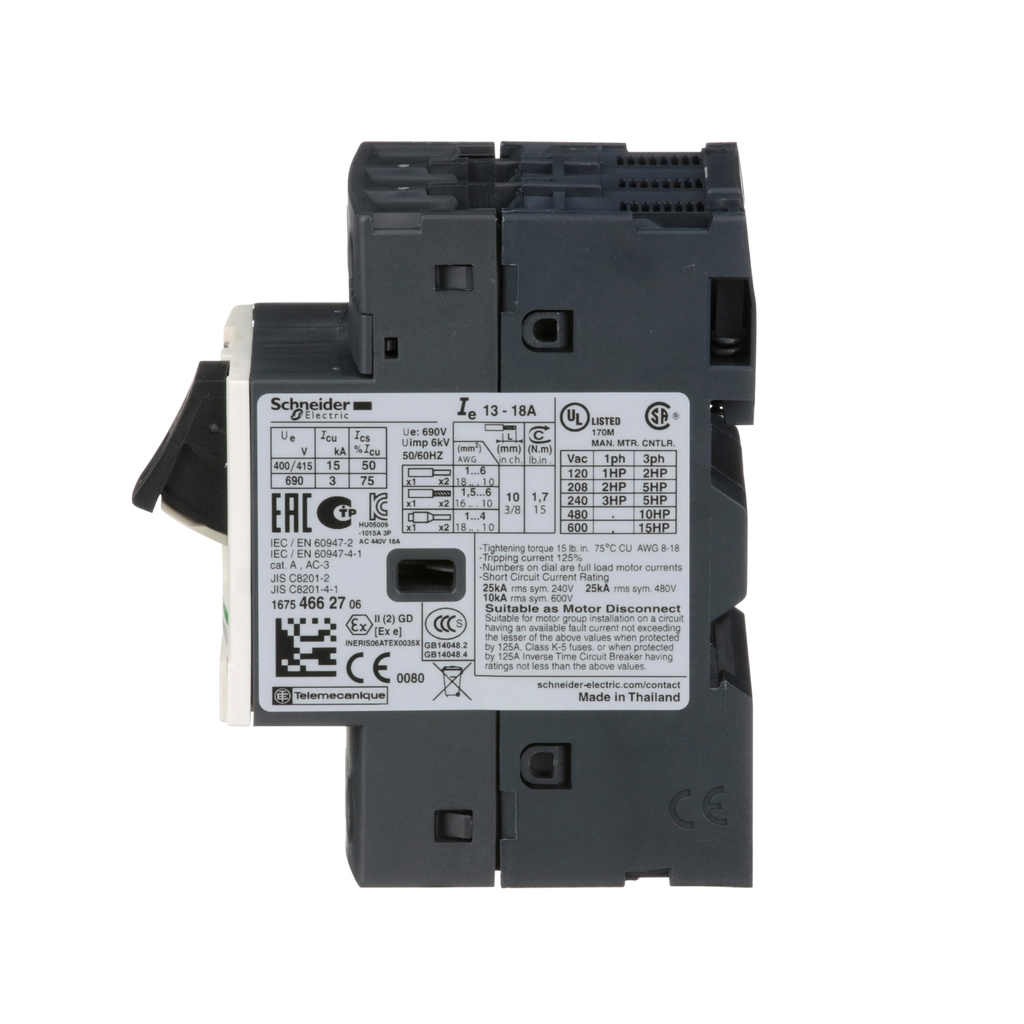

Square D GV2ME20 3-Pole 600 VAC 18 Amp Manual Starter

Manufacturer: Square-D / Schneider | Catalog # GV2ME20 | Cooper Electric Part # 270830
$219.51/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Wednesday 7:00am ET
6 available

For Delivery

Order by Wednesday 5:00pm ET for delivery Thursday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2ME controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by push buttons. The Class 10 ambient compensated thermal over current is adjustable from 13 ampere to 18 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Technical Information

Amperage
18 Amp
Applications
MOTOR
Control Type
Push-button
Enclosure
IP20 CONFORMING TO IEC 60529
IP Rating
IP20
Line Rated Current
18 A
Net Weight
0.26 kg
Number of Poles
3 Pole
Operating Cycles
25 cyc/h
Operating Temperature
-20...60 degrees C
Range
TeSys
Rated Insulation Voltage
690 V
Reset Type
AMBIENT COMPENSATED BIMETALLIC (CLASS 10) 13A TO 18A
Size
45 MM,78.5 MM,89 MM
Standard
EN/IEC 60947-2,EN/IEC 60947-4-1
Storage Temperature
-40-80 degrees C
TC Connection
SCREW CLAMP TERMINALS 2 1-6 MMA SOLID- SCREW CLAMP TERMINALS 2 1.5-6 MMA FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-4 MMA FLEXIBLE WITH CABLE END
Trip Point
223-223 A
Type
CIRCUIT BREAKER
Voltage
690 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Square D
Sub Brand
GV2ME,TESYS,TESYS GV2

General Product Info

12-Digit UPC
389110343192
Color
Gray
GTiN
03389110343199
Product UPC
78590121199
Weight
0.57 lb

Dimensions

Depth
3.08 Inch
Height
3-1/2 Inch
Warranty Length
18 mth
Width
1.77 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
ATEX,ATEX,BV,BV,CCC,CCC,CEBEC,CEBEC,CSA,CSA,DNV,DNV,EAC,EAC,EZU,EZU,GL,GL,LROS,LROS,RINA,RINA,SETI,SETI,TSE,TSE,UL,UL
Country of Origin
Thailand
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
