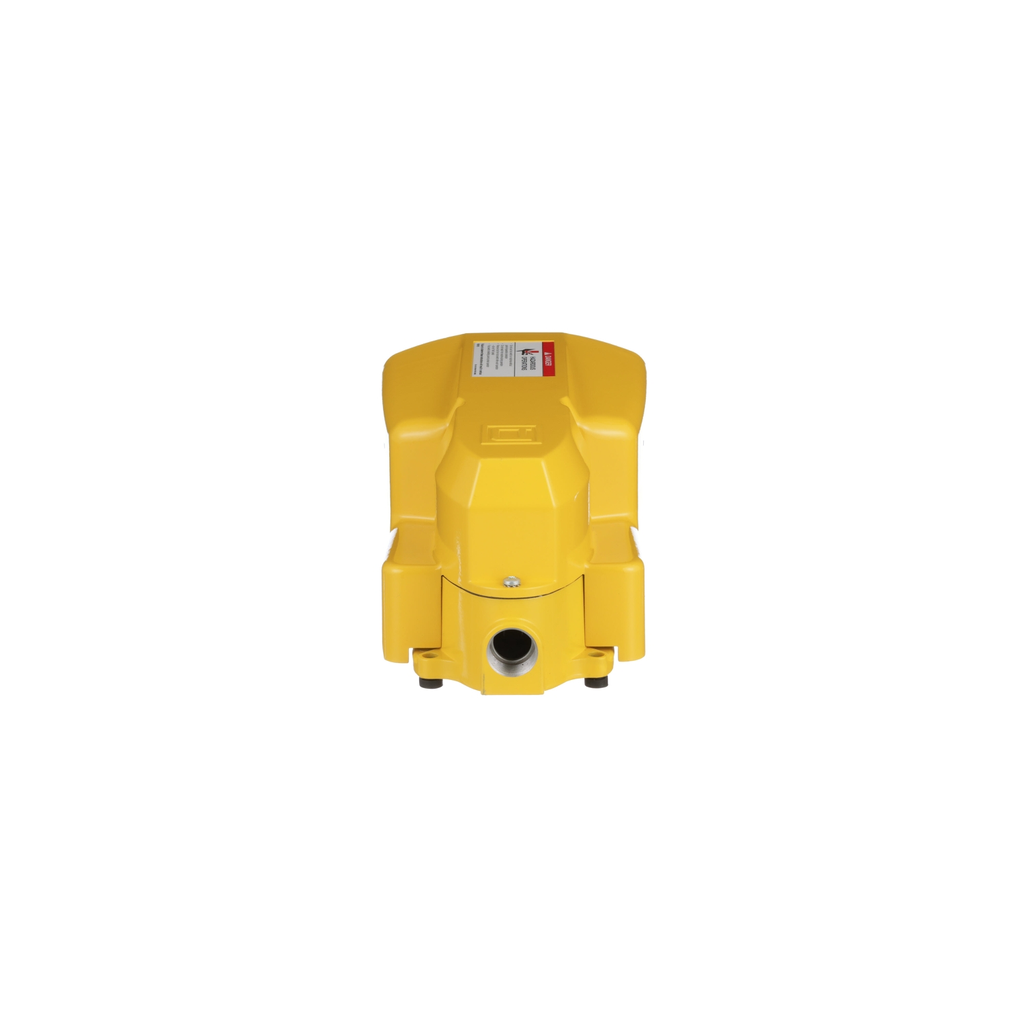

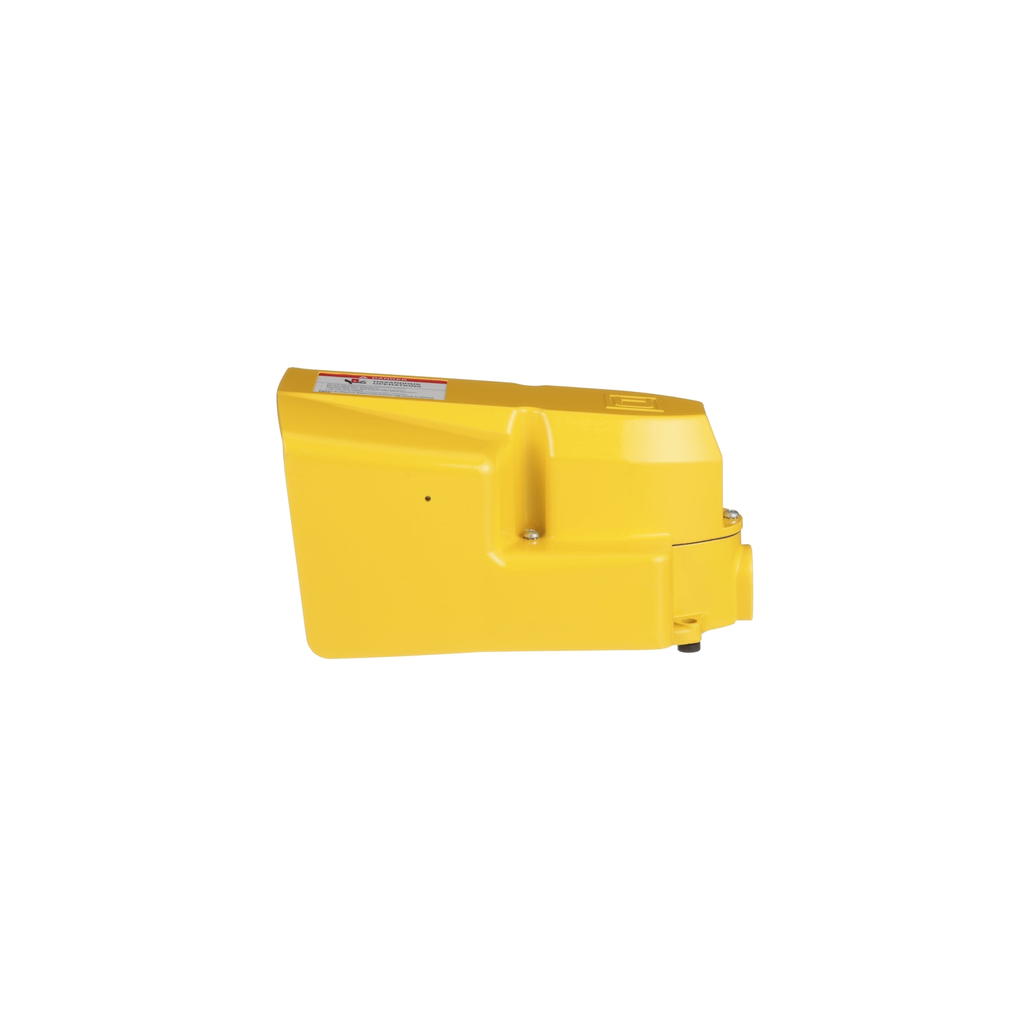

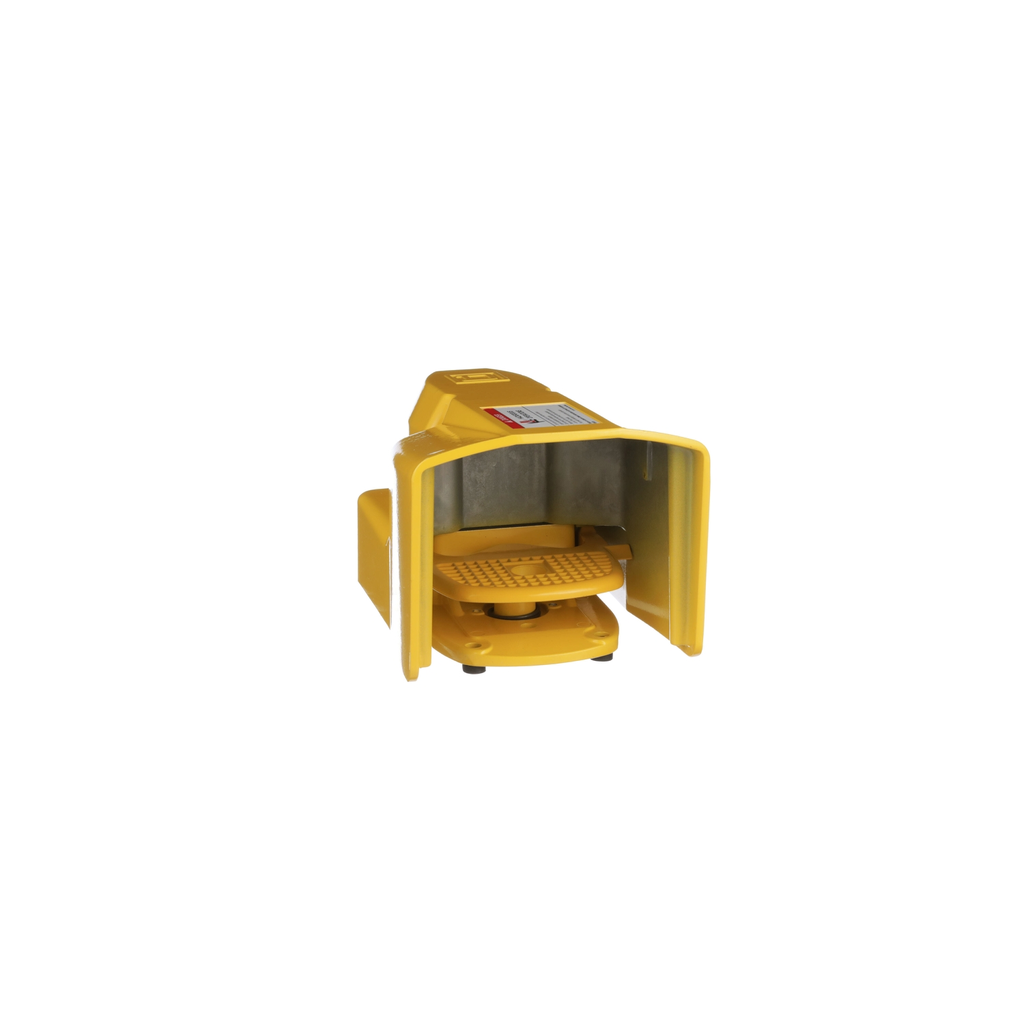

Square D 9002AW132 5 Amp 600 VAC SPDT Spring Return Shielded Heavy Duty Industrial Foot Switch

Manufacturer: Square-D / Schneider | Catalog # 9002AW132 | Cooper Electric Part # 270445
$750.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Catalog Page Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
9002AW NEMA industrial foot switches are heavy duty devices to be used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has oversized pedal and side shields. The single pole double throw snap switch used for the foot switch contact is rated at 5A resistive at 600 VAC. For other contact ratings, refer to the catalog. Snap switch contains two double break contact elements (1 N.O. and 1 N.C.) that must be used on circuits of same polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is 6.26 inches tall, 6.40 inches wide and 8.56 inches deep. Foot switch is UL listed and CSA certified.

Technical Information

Action
-0.0159396895
Actuator
spring return
Cable Entry
0.75 in
Contact Configuration
SPDT
Enclosure
13,2,4
Enclosure Rating
2, 4, 13
NEMA Size
13,2,4
TC Connection
0.75 INCH NPT (CONDUIT ENTRANCE)
Type
Foot switch
Voltage
600 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901045267
Environmental Conditions
WATER TIGHT, DUST TIGHT AND OIL TIGHT (INDOOR/OUTDOOR)
GTiN
00785901045267
Product UPC
78590104526

Dimensions

Depth
217 mm
Height
6.26 in
Warranty Length
18 mth
Width
6.42 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
Mexico
Features
  • This industrial switch is part of the 9002 Heavy Duty Foot Switch product range
  • It has single pole double throw operation with a spring return with mechanical latch
  • An oversized pedal shield, side shields, and heavy duty cast metal provide a robust design
  • It complies with UL and CSA standards and is NEMA 2, 4, and 13 rated
  • Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
