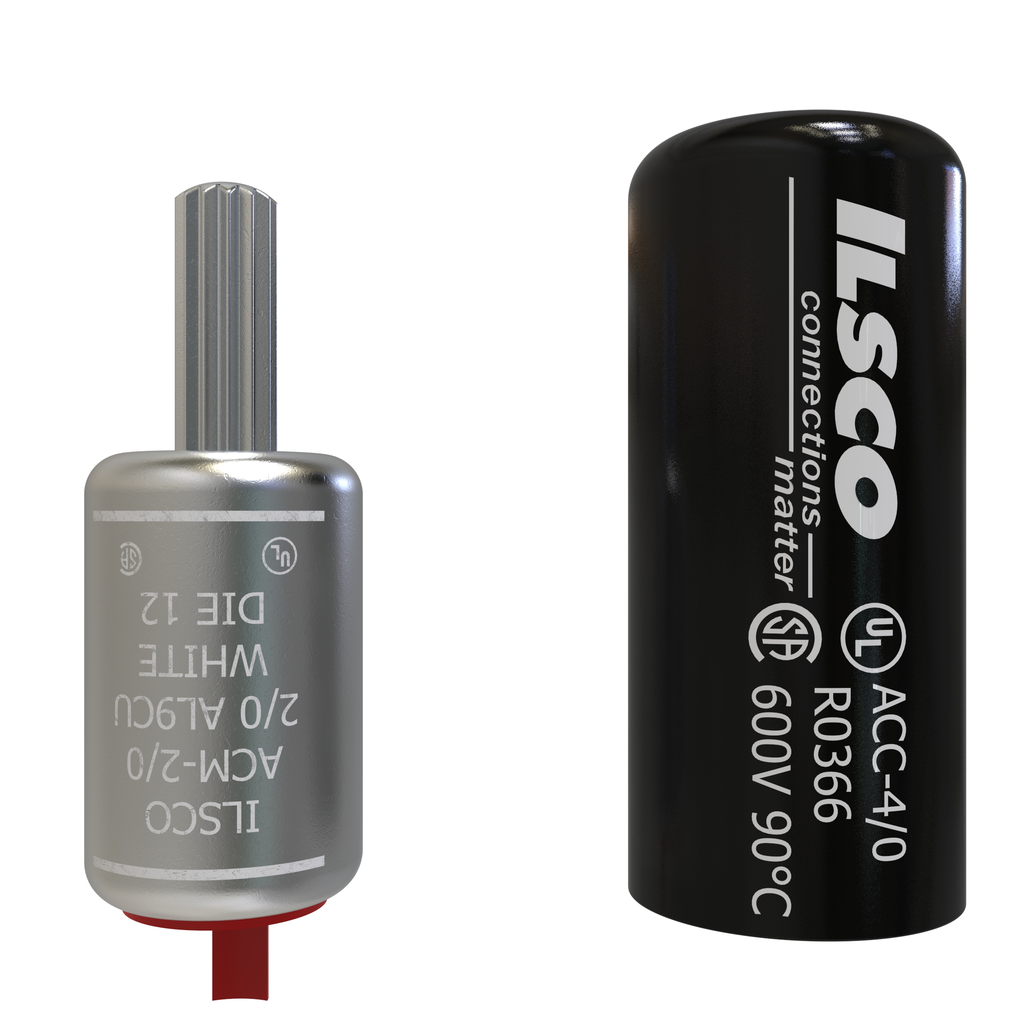

Product image for Ilsco ACM-2/0 Aluminum Compression Pigtail Adaptor, Conductor Size 2/0, Tin Plated, UL, CSA
Email

Ilsco ACM-2/0 Aluminum Compression Pigtail Adaptor, Conductor Size 2/0, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # ACM-2/0 | Cooper Electric Part # 26997
$57.34/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
ILSCO Aluminum Pigtail Adaptor, Compression connection, Dual Rated, Aluminum material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 2/0 Str, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code White, primary color Silver, die index 12,

Technical Information

Applications
For Aluminum Pigtail Adaptor
Barrel Length
1.37 in
Barrel Type
Standard
Color Coding
White
Conductor Material
Aluminum,Copper
Conductor Size
2/0 AWG
Conductor Type
Stranded
Connection Type
Compression
Contact Material
Aluminum
Material
Aluminum
Number of Conductors
1
Pin Length
0.840 in
Size
L:3.104;W:1.03;H:1.03 IN
Standard
CSA File Number: LR-29601,UL File Number: E62525,UL Specifications: UL 486A-B
Temperature Rating
90 degrees C
Type
ACM, Long Sleeve, Round/Sector-Shaped
Voltage
600 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669009101
Color
Silver
GTiN
00783669009101
Product UPC
78366900910
Weight
0.081 lb

Dimensions

Height
1.03 Inch
Inside Diameter
0.432 in
Length
3.14 Inch
Outside Diameter
0.85 in
Width
1.03 in
