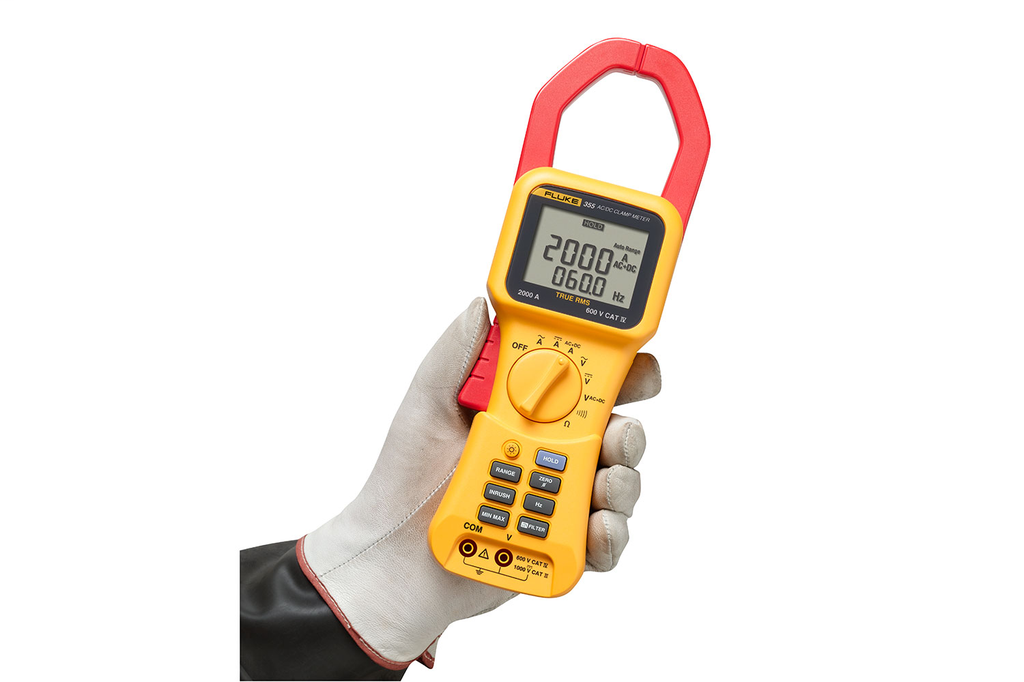

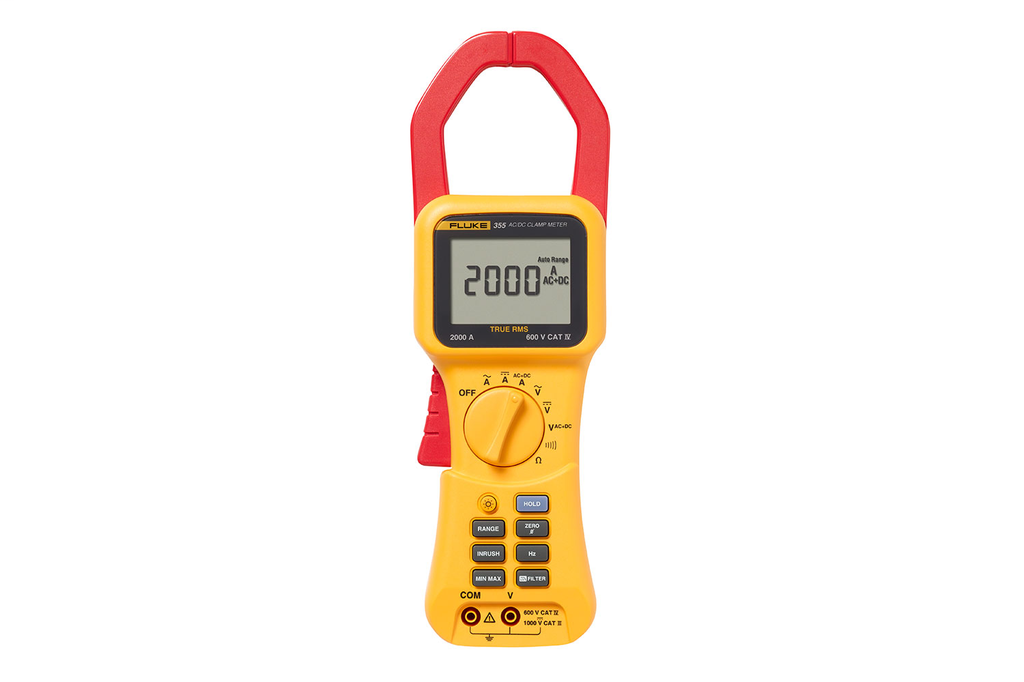

Product image for Fluke FLUKE-355 600 VAC 1000 VDC 2000 Amp AC/DC Clamp Meter
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Fluke FLUKE-355 600 VAC 1000 VDC 2000 Amp AC/DC Clamp Meter

Manufacturer: Fluke | Catalog # FLUKE-355 | Cooper Electric Part # 269724
$1,303.58/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Digital Clamp Meter, Model: 355, Voltage Rating: 1000 VAC/VDC Maximum, Amperage Rating: 1400 AMP AC (Maximum), 2000 AMP DC (Maximum), Resistance: 4/40/400 KOHM, Accuracy: 1.5 PCT RDG Plus 15 Digits And 1.5 PCT RDG Plus 5 Digits At Current Measurement DC And AC 10 - 100 HZ 10 A: 3.5 PCT RDG Plus 15 Digits, 10 A: 3.5 PCT RDG Plus 5 Digits At Current Measurement AC 100.1 HZ To 1 KHZ 1 PCT RDG Plus 10 Digits 1 PCT RDG Plus 5 Digits At Voltage Measurement DC And AC 10 - 100 HZ 3 PCT RDG Plus 10 Digits, 3 PCT RDG Plus 5 Digits At Voltage Measurement AC 100.1 HZ To 1 KHZ 1.5 PCT RDG Plus 5 Digits At Resistance Measurement 0.2 PCT Plus 2 Counts (5 - 100 HZ) And 0.5 PCT Plus 5 Counts (100.1 HZ - 1 KHZ) At Frequency Measurement, Temperature Rating: 32 - 122 DEG F, Battery: (6) 1.5 V AA NEDA 15 AMP Or IEC LR6, Enclosure: IP42, Dimensions: 12 IN Length, Resolution: 10/100/1000 MILAMP At Current Measurement DC And AC 10 - 100 HZ 10/100/1000 MILAMP At Current Measurement AC 100.1 HZ - 1 KHZ 1/10/100/1000 MILV At Voltage Measurement DC And AC 10 - 100 HZ 1/10/100/1000 MILV At Voltage Measurement AC 100.1 HZ - 1 KHZ 0.1/1/10/100 OHM At Resistance Measurement 0.1 HZ (15 - 399.9 HZ), 1 HZ (400 HZ - 1 KHZ) At Frequency Measurement, Measuring Range: 40 /400/2000 AMP 1400 AC RMS At Current, Crest Factor (50/60 HZ) And Current Measurement AC 100.1 HZ - 1 KHZ 4/40/400 V, 600 VAC RMS/1000 VDC At Voltage Measurement DC And AC 10 - 100 HZ 4/40/400 V, 600 VAC RMS At Voltage Measurement AC 100.1 HZ - 1 KHZ 4/40/400 KOHM At Resistance 5 HZ - 1 KHZ At Frequency, Storage Temperature: -4 To 140 DEG F, CE Certified, C/US CSA Certified, N10140 Confirmed, CAT IV 600 V, CAT III 1000 V, IEC 61010-2-032, 600 V CAT IV, 1000 V CAT III EMI, RFI, EMC: FCC Part 15, IEC/EN 61326-1:1997 Class B IEC/EN 61326:1997 3 V/M, Performance Criteria B, EN61325, For Utilities, Electrical Contractors And Industrial Service Technicians

Technical Information

Accuracy
1.5 PCT RDG Plus 15 Digits And 1.5 PCT RDG Plus 5 Digits At Current Measurement DC And AC 10 - 100 HZ; 10 A: 3.5 PCT RDG Plus 15 Digits, 10 A: 3.5 PCT RDG Plus 5 Digits At Current Measurement AC 100.1 HZ To 1 KHZ; 1 PCT RDG Plus 10 Digits; 1 PCT RDG Plus 5 Digits At Voltage Measurement DC And AC 10 - 100 HZ; 3 PCT RDG Plus 10 Digits, 3 PCT RDG Plus 5 Digits At Voltage Measurement AC 100.1 HZ To 1 KHZ; 1.5 PCT RDG Plus 5 Digits At Resistance Measurement; 0.2 PCT Plus 2 Counts (5 - 100 HZ) And 0.5 PCT Plus 5 Counts (100.1 HZ - 1 KHZ) At Frequency Measurement
Amperage
1400 Amp
Applications
For Utilities, Electrical Contractors And Industrial Service Technicians
Enclosure
IP42
IP Rating
IP42
Operating Temperature
0 To 50 degrees C
Resistance
4/40/400 KOHM
Safety Rated
1000 V CAT III,600 V CAT IV,IEC 61010-2-032
Storage Temperature
-20 To 60 degrees C
Temperature Rating
32 to 122 F
Type
Digital Clamp Meter
Voltage
1000 Volt

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
095969401203
GTiN
00095969401203
Product UPC
09596940120
Weight
1.8 lb

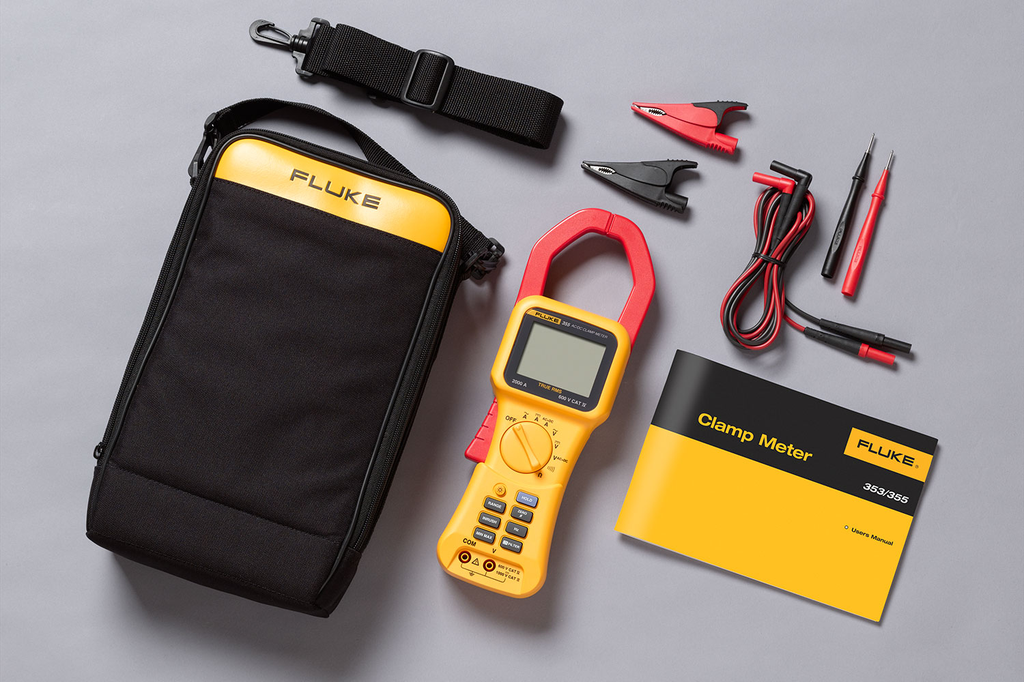

Includes
  • C43 soft carrying case
  • 6 AA batteries
  • TL224 1.5 m silicone rubber test leads
  • TP2 test probes
  • AC285 alligator clips
  • User manual
  • 3 year warranty
Key Features
  • Reliably handle a wide range of high-current applications with 2000 A AC + DC True RMS, 1400 A AC, and 2000 A DC
  • The large 58 mm (2.3 in) jaw capacity is suitable for large or multiple conductors
  • CAT IV 600 V, CAT III 1000 V rating for added user protection
  • In-rush current measurement captures power-on surge current with accuracy and repeatability
  • High voltage measurement of 1000 V AC + DC True RMS, 600 V AC, and 1000 V DC allows the user to perform multiple tests with only one tool
  • Resistance to 400K ohms coupled with a continuity beeper provide the convenience of a multimeter in a clamp meter.
  • Accurately measure frequency up to 1 kHz for optimum troubleshooting
  • Quickly analyze readings using the MIN, MAX, and AVG functions
  • A large backlit display allows for easy visibility in low-lit areas
  • Use the display hold feature to capture readings even when the display cannot be viewed
  • Use the low-pass filter to smooth out noisy loads and stabilize readings
Product Overview
  • Versatile and rugged tools for applications with high currents
  • Confidently take reliable readings with the True RMS, Fluke 355 digital clamp meter the tool of choice for high current clamp-on amp meter measurement up to 2000 A. The extra-wide jaw easily clamps around large conductors, typically found in high-current applications. The extra rugged design and CAT IV 600 V, CAT III 1000 V ratings add an extra element of user protection when taking high-powered measurements.
  • Accurate peak measurements can be taken using the in-rush current mode, ideal for motors and inductive loads. The 355 also measures voltage and resistance, making this an ideal clamp meter for utilities, electrical contractors and industrial service technicians.
