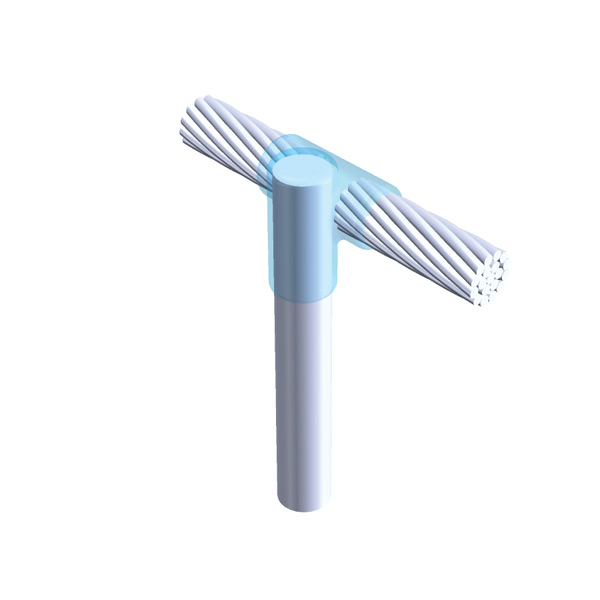

Erico / Cadweld GT1-181G ONE-SHOT Exothermic Weld Mold Package, Thru-Cable to Top of Ground Rod, 3/4" Rod, #6-#8 Solid, #8 Stranded Cable

Manufacturer: Erico, Inc | Catalog # GT1181G | Cooper Electric Part # 269213
$49.43/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
nVent ERICO Cadweld One Shot, Cable to Ground Rod, Traditional, GT (ONE SHOT), 3/4" dia, #8, #6 Connection, Solid

Technical Information

Applications
Formed 14-gauge steel. Continuously welded seams. Larger sizes include door and body stiffeners. Welded brackets provide for enclosure mounting. Formed lip on door and enclosure exclude flowing liquids and contaminants. Cutouts and holes are provided to suit the flange handle operating mechanism. Continuously hinged doors may be removed by pulling the stainless steel hinge pin. Door is secured with easily operated stainless steel clamps. Cover interlock bracket is welded to the door. Collar studs are provided for mounting inner panels. A removable 12 gauge inner panel is included. Seamless poured-in place gasket. A bonding stud is provided on the door and a grounding stud is provided in the enclosure. A literature pocket is provided for the inside of the door.
Mold Family
GT
Standard
CULus®
Type
Box Between Stud

Packaging

Pkg Qty
6 pc
Standard Packaging Qty
6 pc

Manufacturer Information

Brand
nVent Erico
Sub Brand
ERICO

General Product Info

12-Digit UPC
782856000990
GTiN
00782856000990
Product UPC
78285600099

Certifications and Compliance

Certifications
CULusRUS
Features

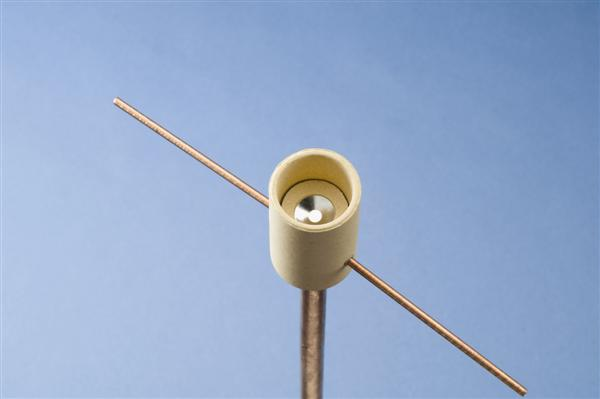

  • Single use ceramic mold which eliminates the need for a graphite mold and handle clamp/frame
  • Fits plain copper-bonded, threaded copper-bonded, full-size galvanized and stainless steel ground rods
  • NEC compliant

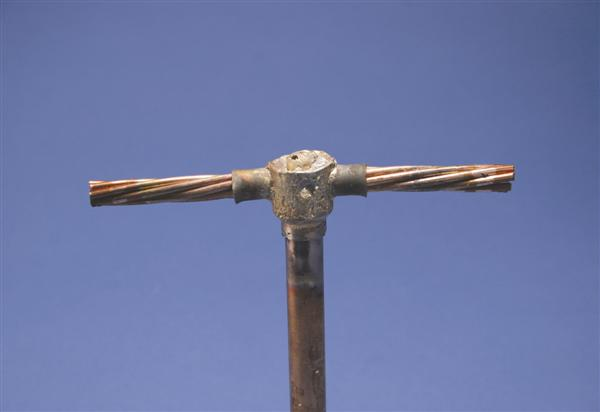

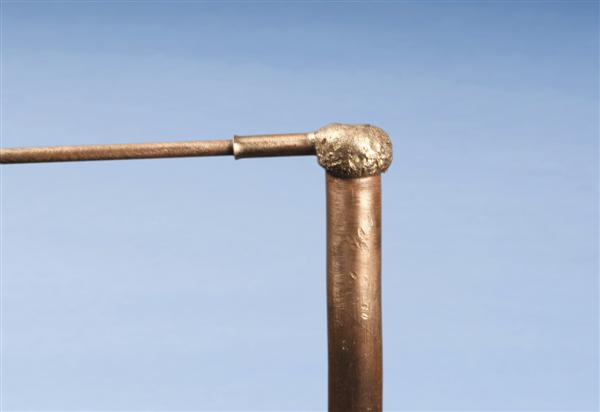

  • Produces a permanent connection that will not loosen or corrode
