Ocal LBD3300-G 1" PVC-Coated Ferrous Iron Rigid 90° Pulling Elbow - Gray

Manufacturer: Ocal / Thomas & Betts | Catalog # LBD3300-G | Cooper Electric Part # 267254
$418.09/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
PVC Coated Pulling Elbow, 90 Degree Bend, With Pressure-Sealing Sleeves Seal Connections, Pipe Size 1 Inch/27 Metric, Gray Iron, Dark Gray

Technical Information

Applications
Used in Rigid Conduit to Act as Pull Outlets for Conductors
Material
Iron
Size
1 in
TC Connection
90 Degree Bend
Trade Size
1 Inch; 27 mm
Type
90

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
704508391362
Color
Gray
Finish
PVC Coated
GTiN
00704508391362
Product UPC
70450839136
Features
  • Pressure-sealing sleeves seal connections
  • Nominal .040 in. (40 mil) PVC coating bonded to exterior
  • Shipped complete with elbow, cover and cover screws.
  • Cover openings on an angle, permitting conductors to be pulled straight through hubs from either direction
  • Domed cover permits easy conductor bends, relieves strain on insulation
  • Coated with a nominal .002 in. (2 mil) blue urethane on both interior and exterior
  • Taper threaded hubs with integral bushings
Application
  • Provide access to wiring for maintenance and future system changes
  • Act as pull outlets especially for conductors that are stiff due to large size or type of insulation
  • Provide for conduit service entrance to buildings
  • Provide for conductor entrance to motors
  • Make 90 degree bends in conduit system, allowing straight pull in either direction
Notes

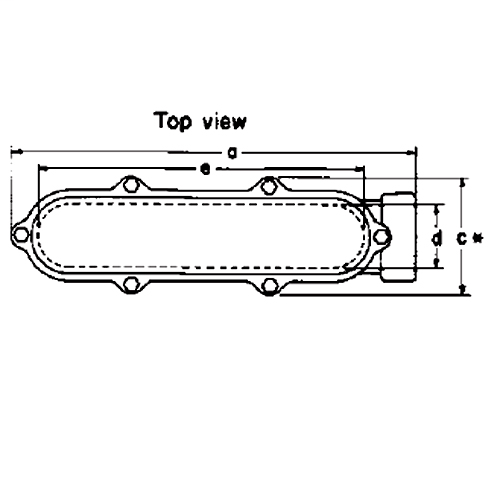

  • Dimensional values are prior to PVC coating
  • Ratings are prior to PVC coating
  • Metric size designator (ANSI C80.1-1994)
