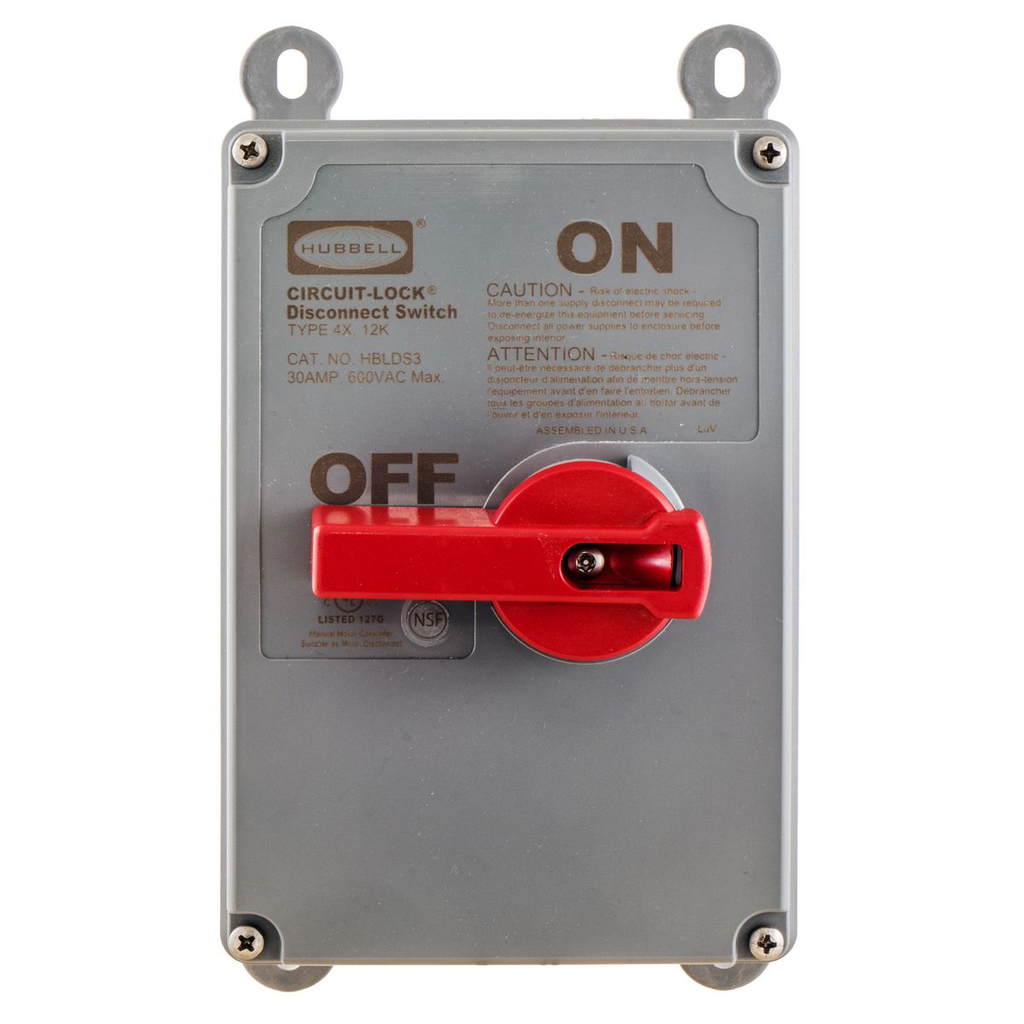

Hubbell HBLDS3 30A 600V Circuit-Lock Unfused Disconnect Switch

Manufacturer: Hubbell Wiring Device | Catalog # HBLDS3 | Cooper Electric Part # 26582
$284.45/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Wednesday 7:00am ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
Switches and Lighting Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Three Pole, 30A 600V AC, Screw Terminals, Gray, NEMA4XEnclosure,

Technical Information

Action
Snap
Actuator
Lever
Amperage
30 Amp
Applications
Extra Heavy Duty Industrial Application
Connection Type
Screw Terminal
Contact Configuration
Two Position
Contact Rating
30A
Current
30 Amp
Enclosure
Non-Metallic
Horsepower
15 hp
Load Rating
18000 W
Material
Composite
Mounting Type
Feet
Number of Phases
3 Phase
Number of Poles
3 Pole
Operating Cycles
6000
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Switch Type
Three Pole Unfused
TC Connection
Terminal Screws
Temperature Rating
-67 degrees C Maximum Continuous, -40 degrees C Minimum Continuous without Impact
Type
Standard, 2 Position, Lever, Non-Fused, Snap
Voltage
600 Volt
Wattage
18 kW

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Circuit-Lock®

General Product Info

12-Digit UPC
783585955001
Color
Gray
Environmental Conditions
NEMA 4X
GTiN
00783585955001
Housing Material
Plastic
Product Series
MotorQuick/LINKOSITY,Fused,Non
Product UPC
78358595500
Shape
Square Top
Weight
2.6 lb

Dimensions

Height
4.12 Inch
Length
8-1/2 Inch
Width
5.500 in

Certifications and Compliance

Country of Origin
Poland
Features
  • Constructed from corrosion and impact resistant UV stabilized non-metallic material
  • IP69k and Type 4X,12K water ingress protection
  • Certified by NSF for hygiene in food processing applications

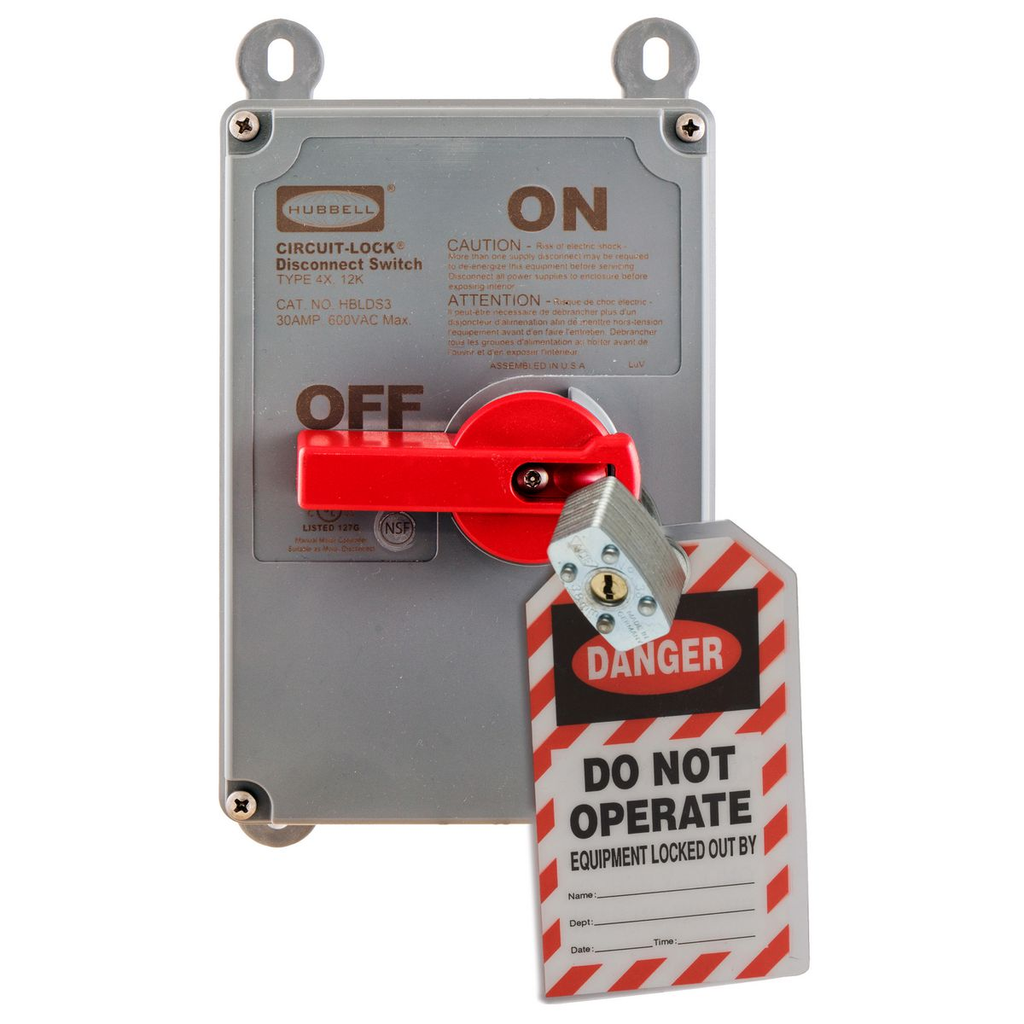

  • Highly visible red handle which meets OSHA Lockout/Tagout capabilities
  • Reversible interior accomodates top or bottom conduit opening
