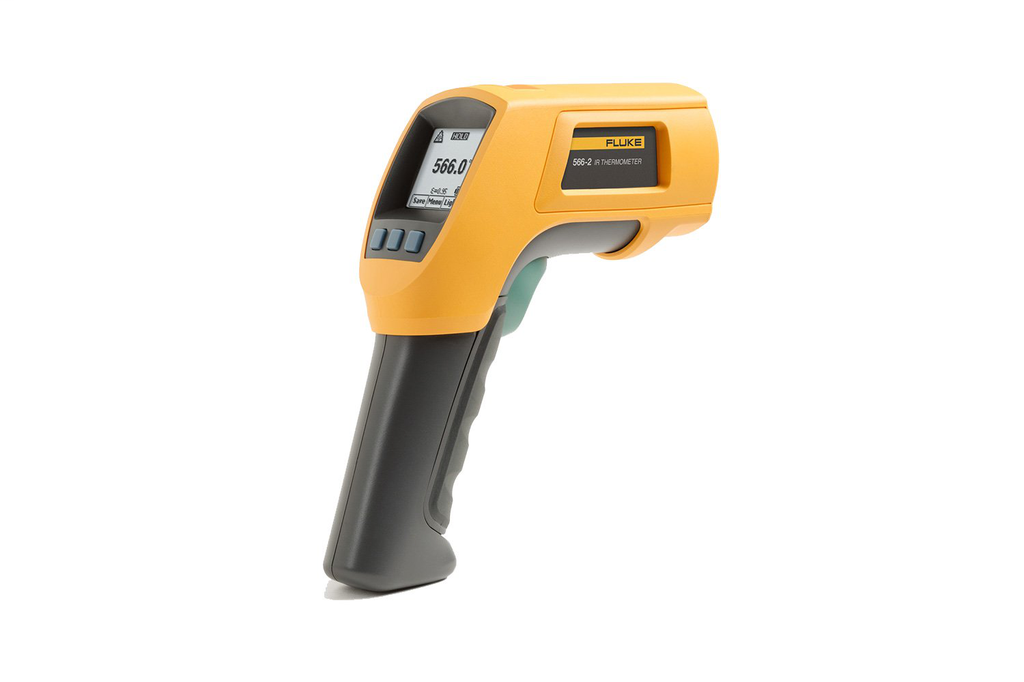

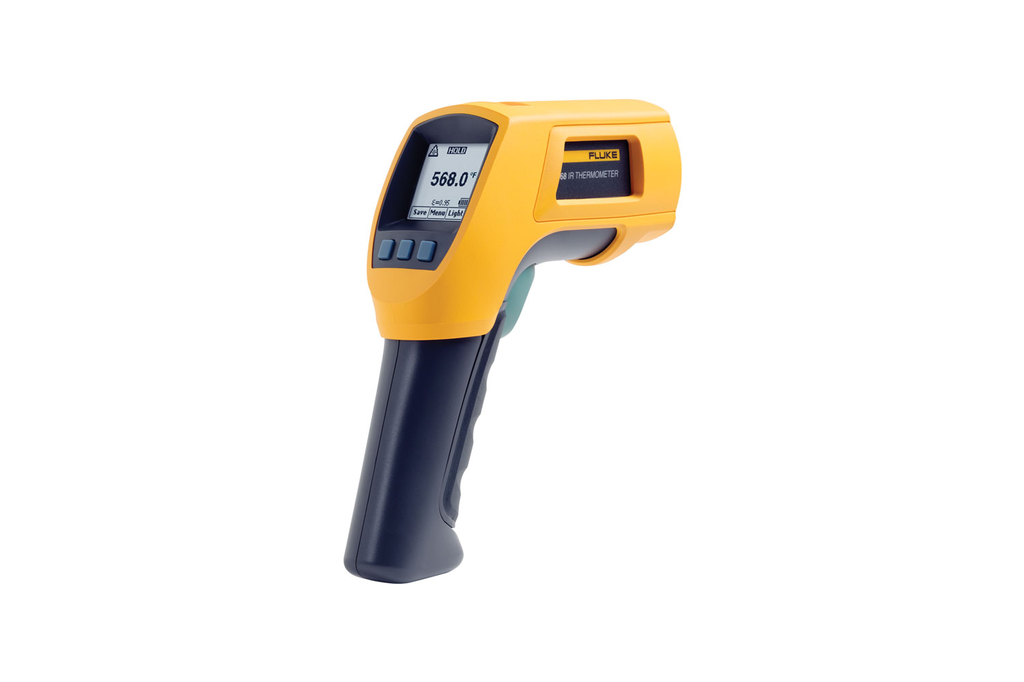

Fluke FLUKE-568 800 Degrees F Multi-Purpose Thermometer

Manufacturer: Fluke | Catalog # FLUKE-568 | Cooper Electric Part # 265377
$611.52/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
568 Series Infrared And Contact Thermometer, Temperature Range: -40 To 800 DEG C, Accuracy: Less Than 0 DEG C (32 DEG F): Plus/Minus (1.0 DEG C (Plus/Minus 2 DEG F) Plus 0.1/1 DEG C or DEG F) Greater Than 0 DEG C (32 DEG F): Plus/Minus 1 PCT or Plus/Minus 1 DEG C (Plus/Minus 2 DEG F), whichever is greater, Resolution: 0.1 DEG C, Spectral Response: 8 - 14 MIC-MR, Laser Sighting: Single Point Laser Less Than 1 MILW Output Class 2 (II) Operation, 630 - 670 NMTR, Response Time: Less Than 500 MS, Emissivity: By Built-In Table Of Common Materials Or Digitally Adjustable From 0.10 To 1.00 By 0.01, Display: Dot Matrix 98 X 96 Pixels With Function Menus, Alarm: High/Low Audible And Two-Color Visual, Data Logging: Yes, Trigger: Lock Mechanism, Battery Type: (2) AA/LR6 And USB When Used With A PC, Laser And Backlight ON 12 HR Laser And Backlight Off 100 HR, Dimensions: 6.965 IN Height X 6.441 IN Length X 2.039 IN Width

Technical Information

Display Type
Dot Matrix 98 X 96 Pixels
Operating Temperature
0 To 50 degrees C
Storage Temperature
-20 To 60 degrees C

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
095969400374
GTiN
00095969400374
Product UPC
09596940037
Other Useful Features
  • Allows easy access to advanced features with soft-key buttons and graphical display
  • Captures up to 99 points of data for quick downloading to a PC through the USB connection
  • Includes FlukeView® Forms software for easy trending and data analysis
  • Can be powered from your laptop via the USB to extend battery life
  • Quickly identifies problems with MIN, MAX, AVG, and DIF functions
  • Allows you to confidently measure a wide variety of surfaces with adjustable emissivity and a built-in materials table
  • Easily adapts to lighting conditions with a two-level backlight
  • Instantly alerts to measurements outside of set limits with audible and visual alarms
  • Provides 1% measurement accuracy
  • Comes with thermocouple K bead probe, durable hard case, and two-year warranty
Product Overview
  • Fluke 568 two-in-one infrared and contact thermometer handles a wide temperature range
  • The Fluke 568 Infrared Thermometer is a combination contact and non-contact thermometer in one. It offers a wider temperature range than most other infrared thermometers while offering users more features controlled through an intuitive graphical display and menu. The simple, three-button on-screen menu interface (in 7 languages) is quick to use and makes even complex measurements easy. It takes just a few pushes of a button to adjust emissivity, record data, or turn on and off alarms. The 50:1 distance-to-spot ratio allows you to measure smaller objects from further away. And you can count on the rugged, ergonomic design to stand up to tough industrial, electrical, HVAC, and mechanical environments to help you work more efficiently in more applications.
Key Features
  • Contact and non-contact thermometer in one
  • Measures temperatures from -40°C to 800°C (-40°F to 1472°F) accurate to
  • 1.0°C or
  • 1.0% of reading (whichever is greater)
  • Features rugged, ergonomic design that stands up to tough industrial, electrical, and mechanical environments.
  • Offers a distance-to-spot ratio of 50:1
  • Works with most K-type thermocouples
Includes
  • Thermocouple K bead probe
  • Durable hard case
  • 2 AA batteries
  • Getting Started guide in 6 languages
  • USB cable
  • FlukeView® Forms software on CD
  • Users Manual on CD in 6 languages (English, Spanish, French, German, Portuguese, and Simplified Chinese)
  • 2-year warranty
