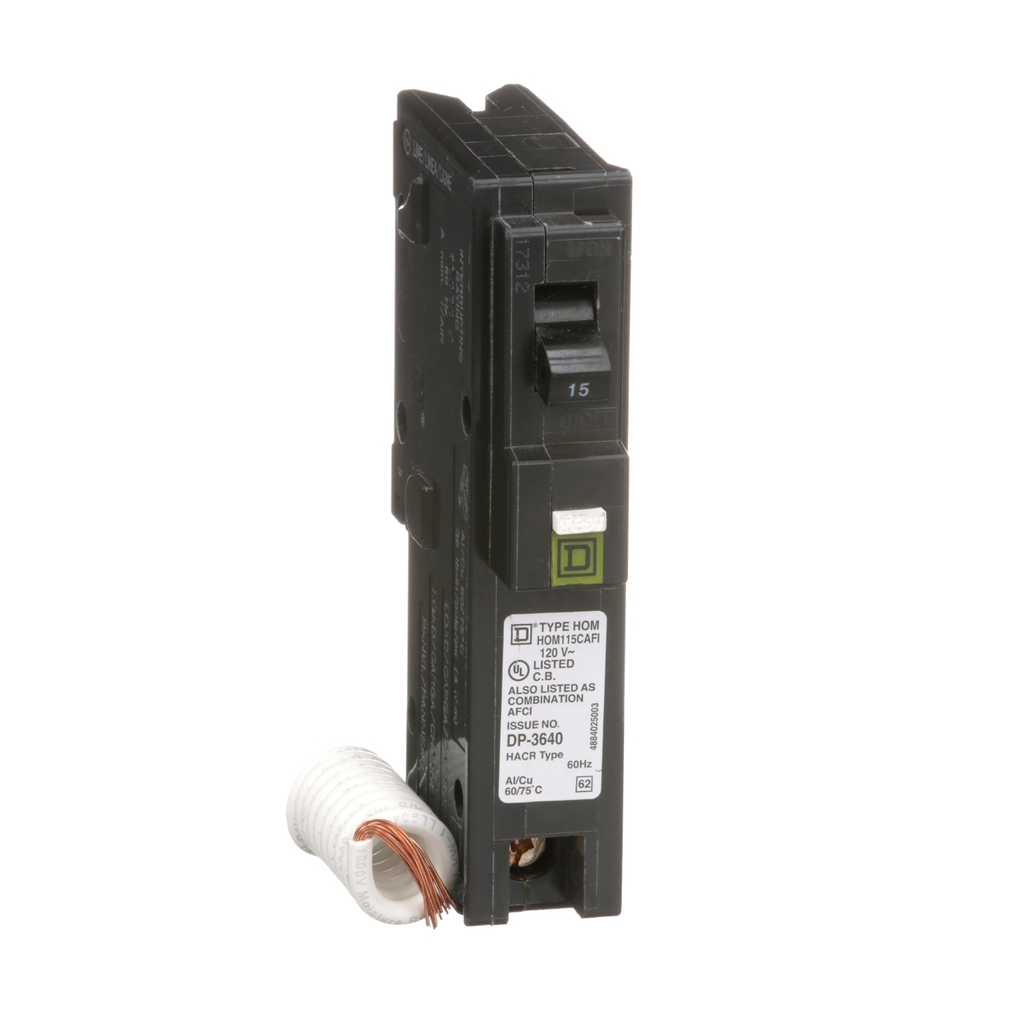

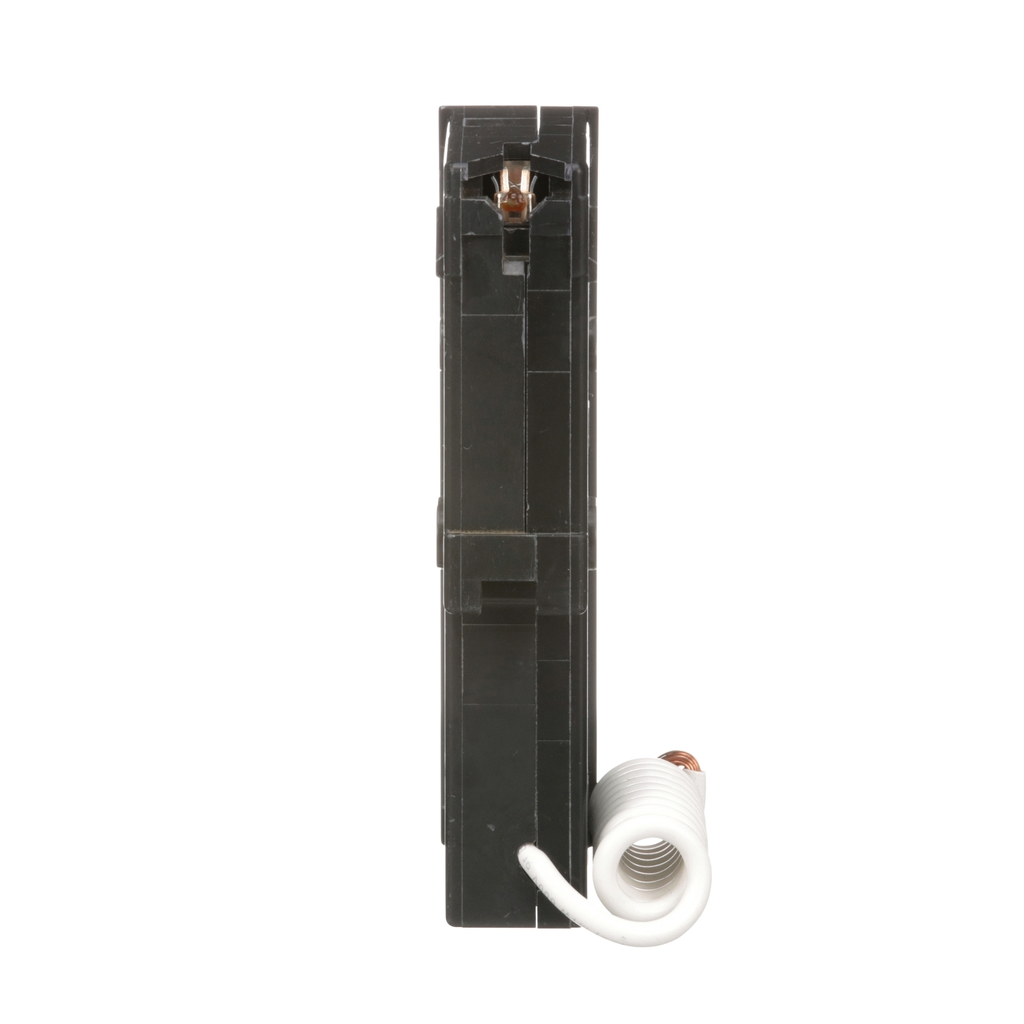

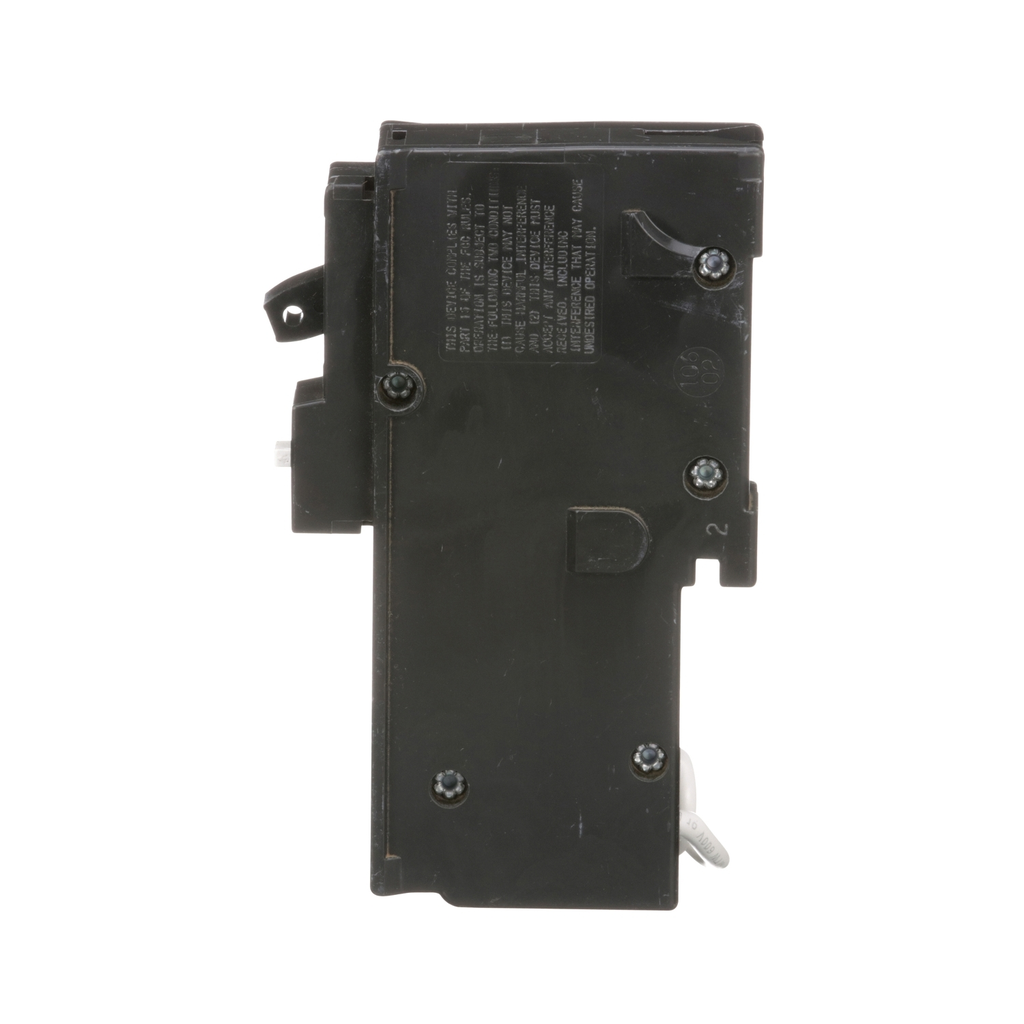

Square D HOM115CAFI 120 Volt 15 Amp Miniature Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # HOM115CAFI | Cooper Electric Part # 262715
$267.00/ea
ea
Log in or register to view your price, purchase history, and more!
1 2 4
Plug-In Neutral Pigtail Neutral
3 available

For Pick Up

at Ocean Opens Monday 7:00am ET
220 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 120 VAC. HOM breakers provide 10 kA breaking capacity. Homeline combination arc fault circuit interrupters provide overload and short circuit protection, plus arc fault protection in accordance with the NEC and UL1699. This breaker has a pigtail neutral. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Technical Information

Amperage
15 Amp
Applications
HACR rated
Circuit Breaker Type
Combination ARC-fault
Conductor Size
14-8 AWG
Current
15 Amp
Interrupt Rating
10 kAIC
Line Rated Current
15 A
Mounting Type
Plug-in
Number of Poles
1 Pole
Number of Spaces
1
Operating Temperature
40 Adegrees C
Short Circuit Current
10 kA
Short Circuit Current Ratng
10 kA
TC Connection
Pigtail neutral;Screw clamp terminals
Type
Miniature circuit-breaker
Voltage
120 Volt
Wire Size
AWG 14...AWG 8 aluminium/copper)1

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Square D
Sub Brand
HOMELINE

General Product Info

12-Digit UPC
785901439721
GTiN
00785901439721
Product UPC
78590143972

Dimensions

Depth
2.98 Inch
Height
3.13 Inch
Length
2.98 Inch
Warranty Length
Lifetime
Width
1 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
